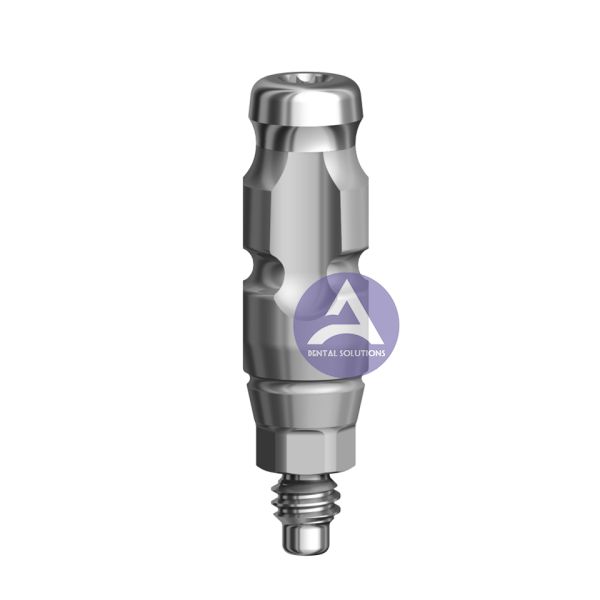

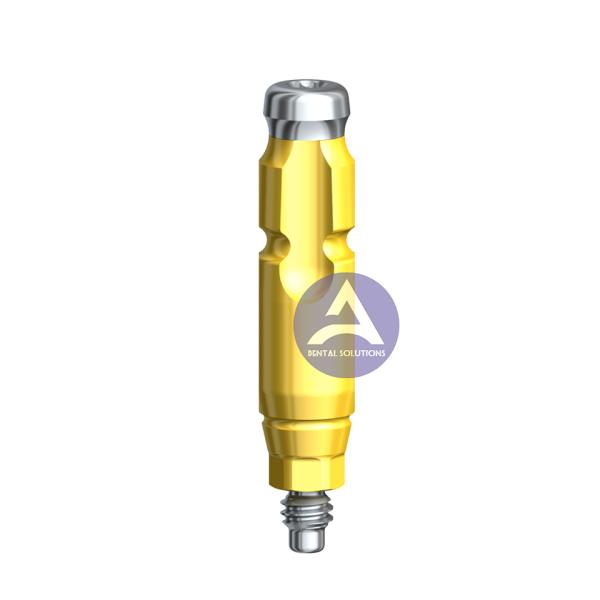

Nobel Active Impression Coping Closed Tray Conical

Connection RP Ø 3.6 x 9mm/13mm (36540/36541)

Material:

Ti 6AI-4V ELI (Supply from Germany)

Reference Number:

36540

36541

Feature:
- Titanium interface abutment
- Precision machined up to ± 5µm
- Combination of high fatigue strength
- Superior level of biocompatibility
- Exterior retentions for more cementation bonding

Approved by CE, ISO 9001, ISO 13485

NobelActive™

Fig. 3

Direct impression copings designed for the open tray impression technique are produced in two emergence profiles for NP platform implants (Fig.3, top row) and three emergence profiles for RP implants (Fig.3, bottom row). NP impression copings are produced in one height of 14mm while RP impression copings are available in two heights, 14m and a low profile version of 10mm. Emergence profiles for NP impression copings are machined in 3.6 and 5.0mm. RP impression copings are offered in three emergence profiles of 3.6, 5.0 and 6.0mm Only NP (3.5mm) platform impression copings are color coded for identification (fuchsia). A Unigrip™ driver may be used to service the fixation screw for impression copings.

NobelActive™

NobelActive™ implants (Fig.1) have a surface treatment from the apex of the implant to the edge of the implant/abutment interface. The slightly tapered body geometry is machined with progressively deeper threads towards the apical and a secondary groove at the edge of the more coronal threads. A faint table (0.25mm) between the actual implant/abutment interface and the outer edge of the implant may be unused to function as a platform switching feature or seating surface of prosthetic components, depending on the type of final restoration. Implants are machined with a internal hexagon functioning as the indexing feature. Four implant body diameters of 3.0, 3.5, 4.3 and 4.9mm in six lengths (8.5, 10, 11.5, 13, 15, 18) are offered in this product group. 3.0mm implants are not produced in lengths of 8.5 and 18mm. Although the implant manufacturers stated length is not the actual length of the implant. Each implant is 0.5mm shorter than advertised.

The indexing feature dimensions are implant body diameter appurtenant, meaning that the indexing feature (Fig.2) is machined differently in regards to the implant body diameter. 3.0mm diameter implants have a 2.5mm diameter indexing feature while 3.5 diameter implants have a 3mm diameter indexing feature. 4.3 and 4.9 diameter implants share the same indexing feature dimension of 3.4mm. Each indexing feature dimension is color coded for easy identification fuchsia (3.5mm body diameter) or yellow/blue (4.3 and 4.9mm body diameter). Although the color coding is only evident on the product packaging and the implants are packaged without cover screw.
