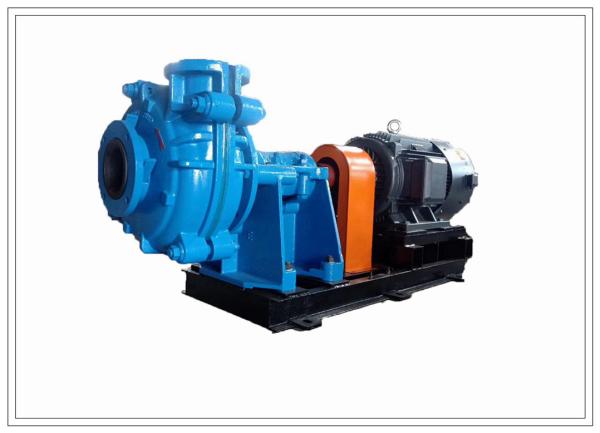

14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
14/12 Mining Slurry Pump Single Stage Heavy Duty Slurry Pump
Specifications
Place of Origin :
China
MOQ :
one
Packaging Details :
Wooden Package
Delivery Time :
30-40days
Payment Terms :
TT
Supply Ability :
100 per month
Model Number :
G
Connection :
V-belt,,Elastic coupling, Gear reducer, Fluid Coupling
Shaft Seal :
Packing seal,Expeller seal, Mechnical seal
Structure :
Horizontal single-stage pump
Material :
Cr27 Cr28 chrome alloy/A05/rubber
Usage :
Transferring sludge at mine, civil works
APPLICATION :
Mining , tailing , slurry transferring
Description

14/12 Working Part Replacement High Chrome Iron Cast Cr27, Cr28 Alloy Mining Slurry Pump

Product Description


horizontal slurry pump
High chrome iron or rubber lined
Double casing design
Big solid through
Heavy duty bearing assembly

APPLICATION of horizontal slurry pump

Alumina,Copper mining,Iron ore,Gas oil,Coal ,Electric industry,Phosphate,Bauxite,Gold,Potash, Wolfram,Water sewerage utilities,Sugar,Tobacco,Chemical fertilizer.

Features

· Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
· Throatbush – wear is reduced and maintenance simplified by the use of tapered.

Slurry pump specifications

Type AM Slurry pump
Flow (m3/h) 13-5000
Head (m) 5-68
Power (kw) 15-1200
Eff. (%) 20-85
Pass Particle Size (mm) 19-135
Material High Cr Alloy, Rubber
