120W 12V Din Rail Power Supply 35mm , 24V Switch Mode Power Supply Economic Type
120W 12V Din Rail Power Supply 35mm , 24V Switch Mode Power Supply Economic Type
Specifications
Brand Name :
MORNSUN
Model Number :
LI120-20BxxR2S
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product name :
100W Ac DC Din Rail Power Supply
Input voltage :
90 - 264VAC
Output voltage :
12V/24V/48V
Output frequency :
47-63HZ
MTBF :
>300,000 h
MateriaL :
Metal (AL1100, SGCC)
Dimensions :
36.00 x 125.00 x 100.00mm
Weight :
410g (Typ.)
Description

120W AC DC Din Rail Power Supply Industrial Control Power Supply

Descriptions
LI120-20BxxR2S is Mornsun AC-DC converter series featuring a cost-effective,energy efficient green power supply solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise for industrial control equipment,machinery,and other industrial equipment in a variety of harsh environments.These light weight AC-DC converters have an extremely compact design and the standard rail (35mm)installation for space saving.With good EMC performance,compliant with international UL61010-1,UL508,EN62368-1 standards for EMC and safety.

Features

Universal 90 - 264VAC or 127 - 370VDC Input voltage

Accepts AC or DC input (dual-use of same terminal)

Operating ambient temperature range: -20℃ to +60℃

High I/O isolation test voltage up to 4000VAC

Low ripple & noise

Output short circuit, over-current, over-voltage, over-temperature protection

DIN rail TS-35/7.5 or 15 mountable

Ultra slim design with 36mm width: suitable for small chassis and narrow space installation

EN62368-1 safety approved, safety according to UL61010-1, UL508

Specifications

Selection Guide
Certification Part No. Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

EN

 LI120-20B12R2S

120

 12V/10A 12-14 85 3000
LI120-20B24R2S 24V/5A 24-28 88 1200
LI120-20B48R2S 48V/2.5A 48-55 89 800
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 90 -- 264 VAC
DC input 127 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 2.7

A
230VAC -- -- 1.6

Inrush Current

 115VAC

Cold start

 -- 30 --
230VAC -- 55 --
Leakage Current 240VAC ＜1.0mA
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit

Output Voltage Accuracy

Full load range

 12V -- ±2.0 --

%
24V/48V -- ±1.0 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load -- ±1.0 --
Ripple & Noise* 20MHz bandwidth 12V -- -- 100 mV
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 36.00 x 125.00 x 100.00mm
Weight 410g (Typ.)
Cooling Method Free air convection

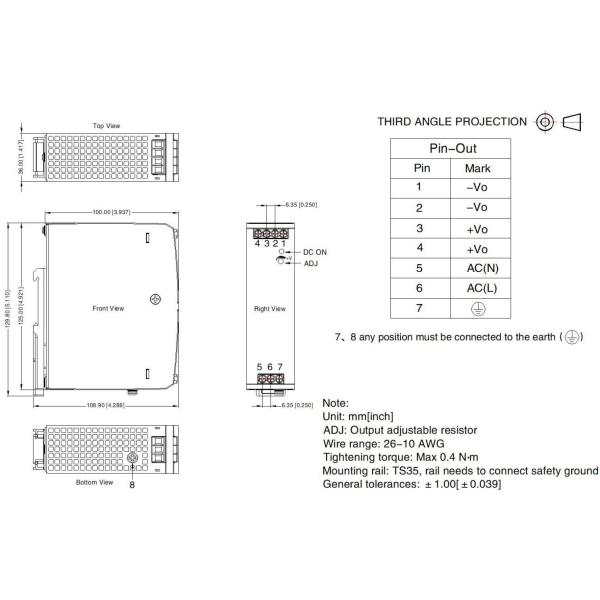

Dimensions and Recommended Layout
