12V 75W AC DC Medical Power Supply 370VDC PFC Enclosed Type
12V 75W AC DC Medical Power Supply 370VDC PFC Enclosed Type
12V 75W AC DC Medical Power Supply 370VDC PFC Enclosed Type
12V 75W AC DC Medical Power Supply 370VDC PFC Enclosed Type
12V 75W AC DC Medical Power Supply 370VDC PFC Enclosed Type
12V 75W AC DC Medical Power Supply 370VDC PFC Enclosed Type
Specifications
Brand Name :
MORNSUN
Model Number :
LMF75-20Bxx
Certification :
UL/CE/CCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
75W AC DC Power Supply with PFC function
Input voltage :
Universal 85 - 264V AC or 120 - 370VDC
Output voltage :
5/12V/15V/24V/48
MTBF(MIL-HDBK-217F@25℃) :
>300,000 h
Efficiency :
≥85%
Case Material :
Metal (SGCC)
Dimension :
159.00 x 97.00 x 30.00mm
Weight :
380g (Typ.)
Description

75W Ac Dc Power Supply with PFC function enclosed type power supply

Descriptions

LMF75-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,built-inactive PFC function,high efficiency and high reliability.

These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC62368,UL62368,EN62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Features

  • Universal 85 - 264V AC or 120 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -25℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • High efficiency, high reliability
  • Output short circuit, over-current, over-voltage,
  • over-temperature protection (Built-in constant current limiting circuit)
  • Remote ON-OFF control
  • Safety according to IEC/EN/UL62368, EN60335, EN61558, GB4943
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Withstand 300VAC surge input for 5s
  • Emissions meets CISPR32/EN55032 CLASS B without extra components

Specifications

Selection Guide

Certification

Part No.*

Output Power

(W)

Nominal Output Voltage and Current

(Vo/Io)

 Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

UL/CE/CCC

 LMF75-20B05 75 5V/15A 4.75-5.5 82 10000
LMF75-20B12 75.6 12V/6.3A 11.4-13.2 85 6000
LMF75-20B15 75 15V/5A 14.3-16.5 86 5000
LMF75-20B24 76.8 24V/3.2A 22.8-26.4 87 1500
LMF75-20B48 76.8 48V/1.6A 45.6-52.8 89 680
Note: *Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 115VAC -- -- 1.0

A
230VAC -- -- 0.6

Inrush Current

 115VAC

Cold start

 -- 20 --
230VAC -- 35 --
Power Factor 115VAC At full load 0.98 -- -- --
230VAC 0.93 -- --
Leakage Current 240VAC/60Hz ＜2mA
Hot Plug Unavailable
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 115VAC -- -- 1.0

A
230VAC -- -- 0.6

Inrush Current

 115VAC

Cold start

 -- 20 --
230VAC -- 35 --
Power Factor 115VAC At full load 0.98 -- -- --
230VAC 0.93 -- --
Leakage Current 240VAC/60Hz ＜2mA
Hot Plug Unavailable
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 159.00 x 97.00 x 30.00mm
Weight 380g (Typ.)
Cooling Method Free air convection

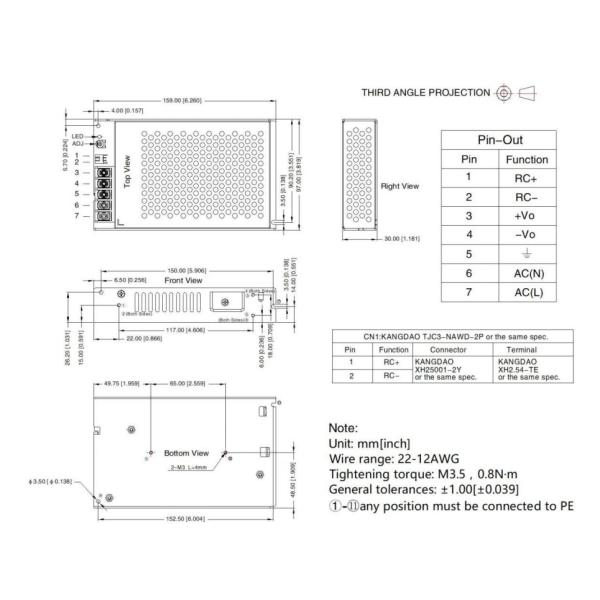

Dimensions and Recommended Layout

LMF75-20Bxx, LMF75-20Bxx-Q Series

12V 75W AC DC Medical Power Supply 370VDC PFC Enclosed Type
