Specifications
Brand Name :
MORNSUN
Model Number :
LM35-20Bxx
Certification :
UL/CB/CE/CCC
Place of Origin :
China
MOQ :
\
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
35W Ac Dc Enclosed Type Power Supply
Input voltage :
85~264Vac
Output voltage :
5V/12V/15V/24V
Input Voltage Frequency :
47-63HZ
Output type :
Single
Efficiency :
≥86%
Warranty :
3 years
Dimension :
99.00 x 82.00 x 30.00 mm
Description

35W Ac Dc Enclosed Type Power Supply industrial control

Descriptions

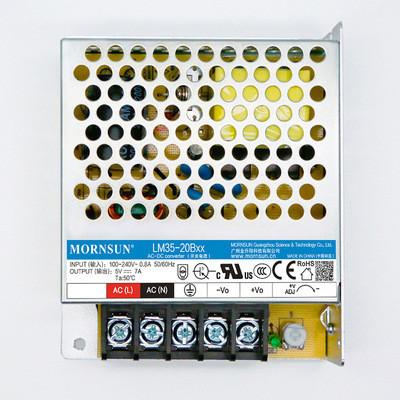

LM35-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency and high reliability.

These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC/UL/EN62368,IEC/EN60335,GB4943,IEC/EN61558 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc

Applications

Widely used in industrial control, LED street light control,smart home, transportation, renewable energy, IoT, power grid, automotive etc.

Features

Universal 85 - 264VAC or 120 - 370VDC input voltage

Accepts AC or DC input (dual-use of same terminal)

Operating ambient temperature range: -30℃ to +70℃

Low standby power consumption, high efficiency

High I/O isolation test voltage up to 4000VAC

Low ripple & noise

Output short circuit, over-current, over-voltage protection

IEC/EN/UL62368, IEC/EN60335, GB4943, IEC/EN61558

Over-voltage class Ⅲ (designed to meet EN61558)

Operating altitude up to 5000m

Specifications

Selection Guide
Certification Part No.* Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range(V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

UL/CE/CB/CCC

 LM35-20B05 35 5V/7A 4.5-5.5 86 8000
LM35-20B12

36

 12V/3A 10.2-13.8 88 1500
LM35-20B15 15V/2.4A 13.5-18 89 1000
LM35-20B24 24V/1.5A 21.6-28.8 88 750
Note: *Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 115VAC -- -- 0.8

A
230VAC -- -- 0.6
Inrush Current 115VAC Cold start -- 30 --
230VAC -- 50 --
leakage current 240VAC ＜0.75mA
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range 5V -- ±2 --

%
12V/15V/24V -- ±1 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load 5V -- ±1 --
12V/15V/24V -- ±0.5 --

Ripple & Noise*

20MHz bandwidth (peak-to-peak value)

 5V -- 80 --

mV
12V/15V -- 120 --
24V -- 150 --

Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimension 99.00 x 82.00 x 30.00 mm
Weight 170g (Typ.)
Cooling Method Free air convection

35W Ac Dc Enclosed Type Power Supply industrial power supply

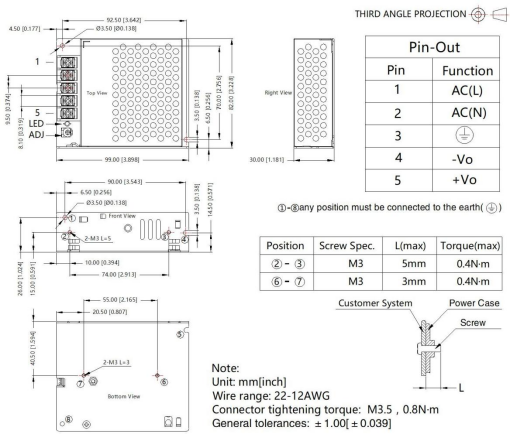

Dimensions and Recommended Layout
