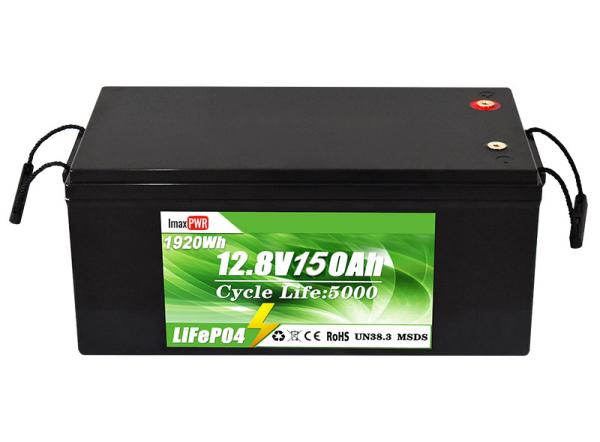

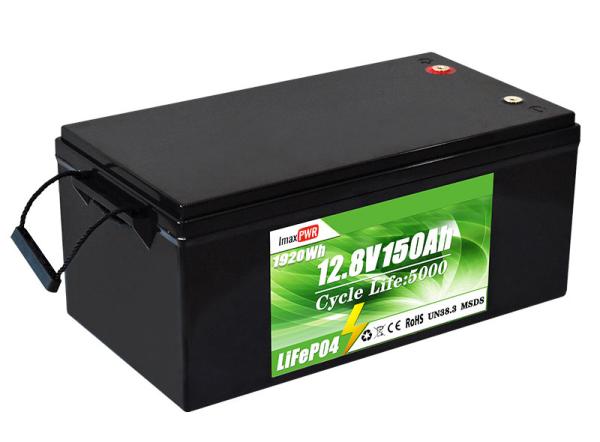

12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts
12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts
12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts
12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts
12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts
12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts
Specifications
Brand Name :
IMAX Power
Model Number :
12.8V 150AH（1920Wh）
Certification :
MSDS/ UN38.3
Place of Origin :
Made in China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
Carton/Wooden box
Discharge Temp :
-10℃～55℃
Ip Grade :
IP20
Rated Energy :
1920wh
Rated Capacity :
150AH
Description

12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts

Factory 12.8V150Ah LiFePO4 Lithium Li-Ion Boats, Golf Carts Deep Cycle Battery Rechargeable

12.8V 150AH(1920Wh) Lithium-ion Battery Pack Caravan RV Marine 12v deep cycle battery

Rechargeable Lithium ion Golf carts 12v 150ah LiFePO4 Battery Pack

1. Specifications

NO Item SPEC Remark
1 Rated Capacity 150AH
2 Rated Voltage DC12
3 Rated Energy 1920wh
4 Operating Voltage 11.2V～14.6V 2.8V～3.65V
5 Max. Charge Current 75A 0.5c
6 Max. Discharge Current 150A 1c
7 Peak Current 200A (1s)
8 Ip Grade IP20
9 Discharge Temp -10℃～55℃
10 Charge Temp 0℃～55℃
11 Dimension L483*W170*H240(mm)
12 Weight 17kg
13 Internal Resistance ≤30mΩ
14 Cycle Life 3000 25℃
15

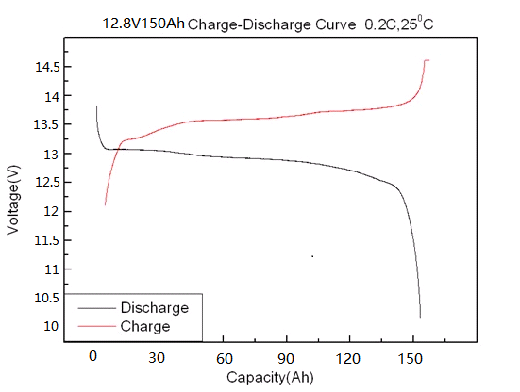

2. Characteristic Curve

12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts

3. BMS Description

NO Item MIN MAX Type Unit
1 Operating Voltage 11.2 14.6 / V
2 Continuous Charging Current 1 75 / A
3 Continuous Discharging Current 1 150 / A
4 Discharging Over Current 160 200 / A
5 Operating Temp -20 70 / ℃
6 Operating Humidit 10 85 / %
7 Internal Resistance ＜10 mΩ
8 Normal Operating Consumption ＜30 mA
9 Static Total Consumption 100 50 uA

12.8V 150Ah Deep Cycle Rechargeable Battery For Boats Golf Carts
