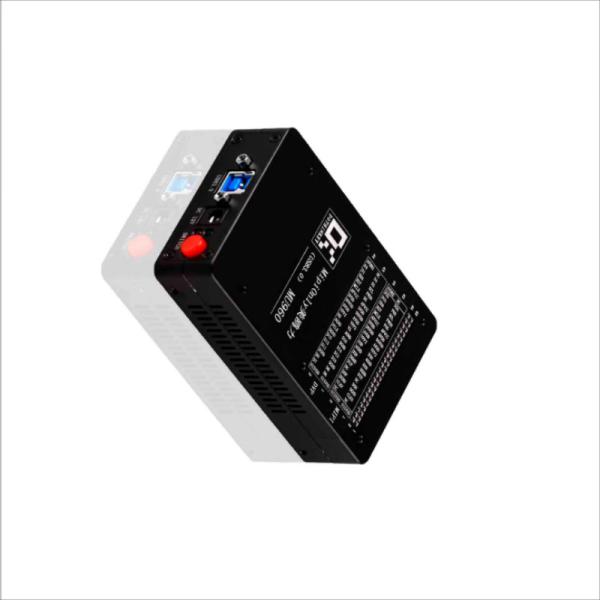

MIPI USB3 Frame Grabber The Data Bandwidth Is Accessible 5Gbps Dothinkey
MIPI USB3 Frame Grabber The Data Bandwidth Is Accessible 5Gbps Dothinkey
Specifications
Brand Name :
Dothinkey
Model Number :
ULM928
Certification :
CE
Place of Origin :
Shenzhen,China
MOQ :
1 PCS
Price :
USD1200-USD5000
Payment Terms :
T/T
Supply Ability :
Stock Availability
Delivery Time :
5-8 working days
Packaging Details :
Carton Packaging
LVDS Bandwidth: :
≥600Mbps/Lane
Image Format :
RGB565/YUV422 RAW8/RAW10/RAW12
Sensor Interface :
D-PHY/Parallel HiSpi/LVDS
MIPI Bandwidth :
≥1Gbps/Lane
USB3.0 Data Bandwidth :
5Gbps
RGB Format :
RGB565
Input Voltage :
110V/AC ~ 220V/AC 50Hz/60Hz
Output Voltage :
12V/DC
Description

MIPI USB3.0 Image Grabber The Data Bandwidth Is Accessible 5Gbps

一.Product Overview:
The ULM928 represents a comprehensive testing solution for advanced camera module evaluation. This versatile platform combines high-speed image acquisition with precision measurement capabilities through its USB3.0 interface, making it ideal for mobile, automotive, and surveillance camera testing applications.

Technical Specifications:

1. Interface Support:

1)Multi-protocol compatibility: MIPI/DVP/HISPI/LVDS/SPI

2)LVDS channel configuration: 10 lanes @ 600Mbps per channel

3)MIPI channel configuration: 4 lanes @ 1Gbps per channel

4)DVP clock support: 200MHz maximum PCLK frequency

5)USB3.0 throughput: 5Gbps data transfer rate

2. Precision Measurement Systems:

1)10nA resolution capability

2)Dynamic/Standby current monitoring

3)45-channel parallel Open/Short detection

4)Configurable 15mA test current

5)Adaptive threshold programming

3. Power Management:

1)Multi-channel programmable supply:

2)5 independent low-noise outputs

3)AFVCC/AVDD/DOVDD/DOVD support (3.3V/500mA max)

4)Flexible VPP options:

5)2.5-5V range @ 500mA

6)5-9V range @ 200mA

4.Key Benefits:

1)Comprehensive interface coverage for maximum device compatibility

2)Laboratory-grade measurement accuracy for reliable quality verification

3)Flexible power configurations for diverse testing requirements

4)High-throughput data capture for efficient production testing

5)Programmable test parameters for customized evaluation protocols

二.DPS power supply application

The ULM928 offers a 5-channel high-precision digital adjustable power supply (DPS) with high-precision current detection and overcurrent protection functions
Yes. Please refer to the table for details
