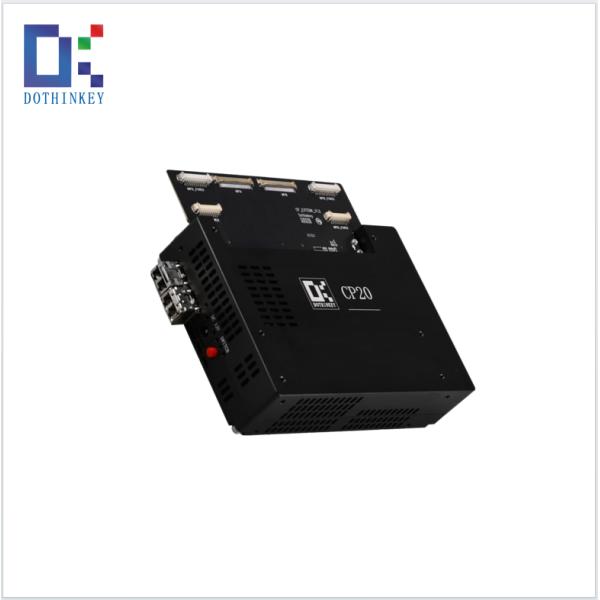

Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions
Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions
Specifications
Brand Name :
Dothinkey
Model Number :
CP20
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
USD1200-USD5000
Payment Terms :
T/T
Supply Ability :
Stock Available
Delivery Time :
5-8 Working Days
Packaging Details :
Carton Packaging
Sensor IO :
1.2 -3.3V
Buffer Capacity :
DDR4_16Gbit
MIPI data channel :
MIPIC-PHY 1/2/3 Trio
VAUX :
Measuring range:1.3~8.0V, Accuracy: +_50mV
Output Voltage :
24V/DC
Height Width Length :
35mm 100mm 140mm
power supply :
DC12V/3A
ESD protection :
Machine Model(MM)>+_200V
Description

Automotive Image Frame Grabber MIPI CSI Optical Interface for DSP Solutions

Featutes:

1. Dual MIPI D/C-PHY Interface
High-speed image acquisition via dual-channel MIPI D-PHY/C-PHY protocols.
2. 2×5 Programmable Power Rails
10 independent voltage channels (2.2V configurable) for multi-sensor compatibility.
3. Multi-Range Current Detection
Precision measurement from mA to nA with <1% error margin.
4. 66-Channel OS Test
Open/short fault detection across 66 signal paths.
5. Programmable Product ID
Unique device identification for automated system integration.
6. Analog Signal Interface
External voltage/current input for auxiliary diagnostics.
7. Sensor Voltage Monitoring
Real-time rail measurement (±0.5% accuracy).
8. 4-Wire Kelvin Compensation
Remote voltage sensing to negate line resistance effects.

Schematic:

Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions

Dimention:

Automotive Image Frame Grabber MIPI CSI Optical Frame Grabber Device For DSP Solutions

CP20 Product Specifications:

Pin Number Pin Name Pin Type Function
A14 A_AGND Power Image Sensor Analog GND
A15 A_AVDD2 Power Image Sensor Analog GND
A16 A_AVDD2 Power Image sensor analog power supply
A17 A_AVDD2 Power Image sensor analog power supply
A18 A_AVDD2_FB Input Image sensor analog power supply remote kelvin compensation feedback pin
A19 A_DGND Power Image Sensor Analog GND
A20 A_ADC1 Input Image sensor reference voltage measurement pin
A21 A_ADC2 Input Image sensor reference voltage measurement pin
A22 A_ADC3 Input Image sensor reference voltage measurement pin
A23 A_ADC4 Input Image sensor reference voltage measurement pin
A24 A_DGND Power Image Sensor Analog GND
A25 A_POl I/O Image sensor digital GND
A26 B_DOVDD Power Image sensor 10 Power supply.
