5Gbps Automotive Frame Grabber For Internal Parameter Calibration / AA Test
5Gbps Automotive Frame Grabber For Internal Parameter Calibration / AA Test
Specifications
Brand Name :
Dothinkey
Model Number :
FM101
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
1 PCS
Price :
USD1200-USD5000
Payment Terms :
T/T
Supply Ability :
Stock availability
Delivery Time :
5-8 working days
Packaging Details :
Carton packaging
Brand :
Dothinkey
Max MIPI channels :
1.6Gbps/Lane
Image transmission rate :
5Gbps
Size :
120*75*35mm
Description

5Gbps Image Transmmission Rate Appllication For Automotive Mounted Internal Parameter Calibration/AA Test

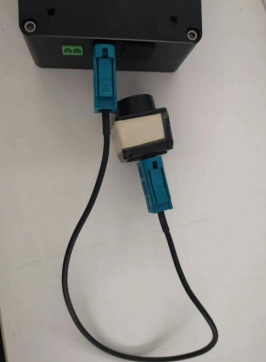

1.Schematic diagram of the connection between the MAXIM/TI serializer solution vehicle-mounted module and FM101

5Gbps Automotive Frame Grabber For Internal Parameter Calibration / AA Test

2.Interface distribution diagram

5Gbps Automotive Frame Grabber For Internal Parameter Calibration / AA Test

3.Interface Function Description

1 Power output interface No external power supply equipment is allowed! It is used to supply power to the supplementary lighting of the external module, independent of the POC power supply, and connected.The PIN spacing of the wire terminal is 3.81mm
2 Camera module interface A Default standard configuration: Coaxial interface (COAX), FAKRA connector, Z-shaped foolproof interface, aqua blue
3 Camera module interface B Differential Interface (STP), the finished product is only reserved. Recommended model: D4S20G-400A5-Z, water blue (Z)
Type foolproof interface
4 Indicator light Red: Power indicator light Green: Signal indicator light
5 Test box power supply interface A dedicated DC 24V/2.5A power supply interface for the test box, which is used to provide working power for the test box
6 USB3.0 interface USB3.0 communication interface
7 Switch Test box power on/off switch
