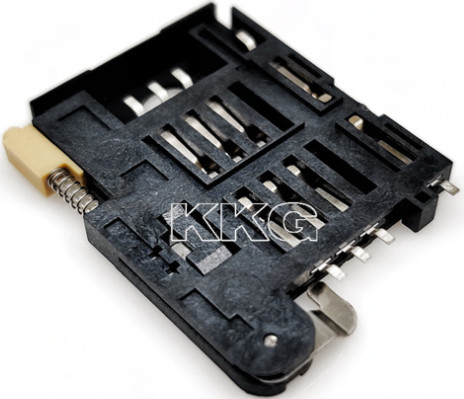

• Smart Card Connector with 8 Pin and 5,000 Cycles Lifespan

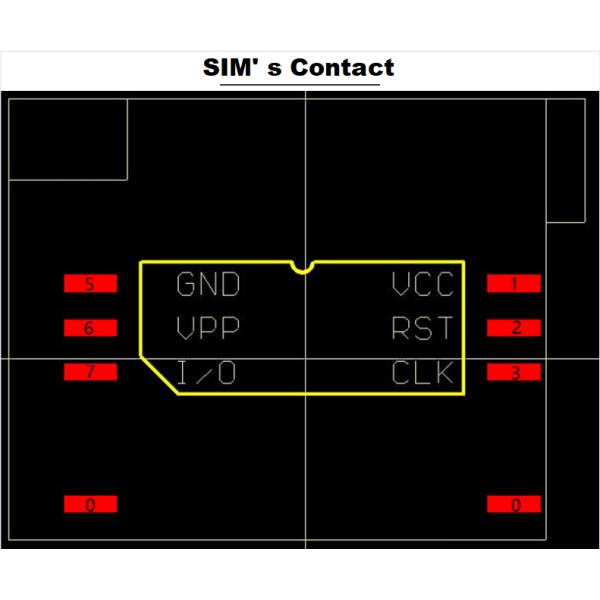

• Pin definition for the SIM card holder
• 1 SIM card storage capacity: the general SIM card has 8KB storage capacity, in addition to the capacity
• of 16K/32K/64K/128K SIM card.
• 2 THE use of SIM card temperature: standard temperature -25+70℃, the of each use shall not exceed 4
• hours, a total of 100 times.
• 3 THE service life of THE SIM card: the physical life depends on the customer's plug and pull times, about
• 10,000 times; The life of integrated circuit chip depends on the number of data memory write, different
• manufacturers have different indicators. The SIM card chip has 8 contacts, which are connected to the
• mobile device: 1, power VCC (contact C1) : 4.5-5.5V, ICC < 10mA; 2. Reset RST (contact C2) 3, clock
• CLK (contact C3) card clock 3.25mhz
• 4 not provided (contact C4)
• 5. Ground end GND (contact C5)
• 6. Programming voltage VPP (contact C6)
• 7. Data I/0 port (contact C7)
• 8, not provided (contact C8)

KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components

such as switches, sockets and connectors. The Production of Products mainly used in computer products,

consumer electronics, electrical & electronics, industrial equipment & components......

1.KKG factory with high standard in product quality control;

2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.

3.Our customers from all over the world, like US, UK,Japan, Germany, Argentina,

Mexico, Singapore

4.One-stop Service for Customers

Q: what is your MOQ for this item?

A: MOQ is 100, but always flexible.

Q: Can I get some samples?

A: Sure, Sample order is available.

Q: what about lead time?

A: 7-10 days after deposit received.

Q: terms of payment?

A: Trade Assurance, T/T, credit card, western union, cash, Money Gram

Q: My item was damaged in shipping?

A: Our parts are carefully packaged to prevent damage in shipping.
