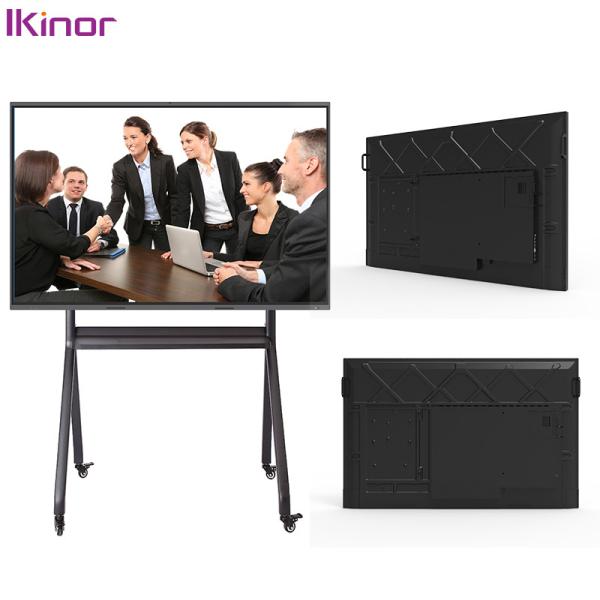

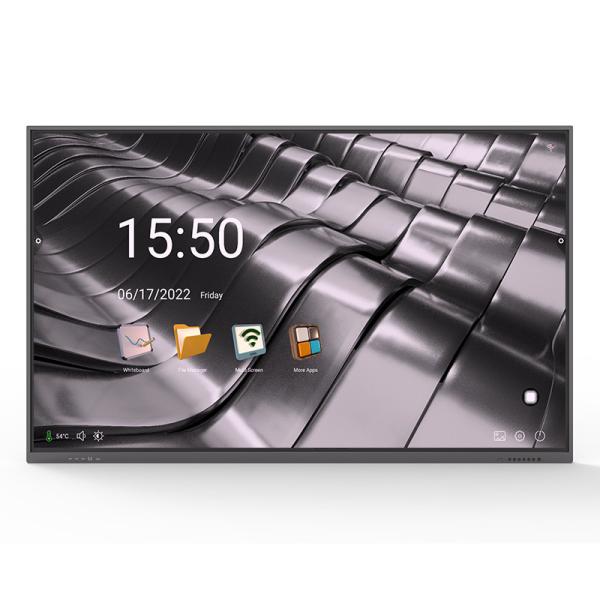

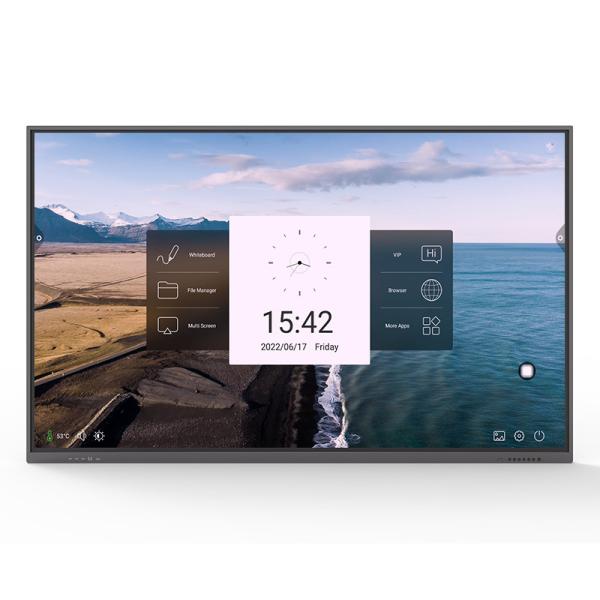

Portable Interactive Digital Whiteboard 75 Inch 4k
Portable Interactive Digital Whiteboard 75 Inch 4k
Portable Interactive Digital Whiteboard 75 Inch 4k
Portable Interactive Digital Whiteboard 75 Inch 4k
Portable Interactive Digital Whiteboard 75 Inch 4k
Portable Interactive Digital Whiteboard 75 Inch 4k
Specifications
Brand Name :
Ikinor
Model Number :
PR75
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Price :
$700-$999/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5K/month
Delivery Time :
10-15 working day
Packaging Details :
Carton packing
Type :
Infrared technology
Product name :
interactive whiteboard for meeting
Interface type :
USB3.0/HDMI/VGA
Resolution :
4K(3680*2160)
Screen size :
75"
Screen type :
DLED
Products status :
Stock
Touch points :
20 points
Size :
75 inch
Application :
Meeting room
Operating system :
Android/Windows
Brightness :
Up to 450 cd/m2
Warranty :
1 Year
Material :
Metel
Viewing angle :
178(V)/178(H)
Description

Product Details

Professional smart meeting touch screen monitors PR75 lcd touch monitor for business

Portable Interactive Digital Whiteboard 75 Inch 4k

High-end conference touch screen interactive whiteboard with ultra-narrow bezel design, newest Android 11.0, anti-glare touchened glass. You will love it at first glance

Portable Interactive Digital Whiteboard 75 Inch 4k

Zero-gap banding technology, vivid display.

2mm hight writing, 1mm writing accuracy

Fine Writing with different colors

Ikinor PR series IR touch screen monitor PR75

Portable Interactive Digital Whiteboard 75 Inch 4k

Portable Interactive Digital Whiteboard 75 Inch 4k

Wirelessly mirrior casting on PR75 inch LED flat panel to share everything with your group. Fine and efficient meeting

Portable Interactive Digital Whiteboard 75 Inch 4k

12MP HD Camera, Point-to-point precise display technology provides you with clear and smooth pictures, 8 arrny micropahone with 10M pick-up distance

Portable Interactive Digital Whiteboard 75 Inch 4k

Portable Interactive Digital Whiteboard 75 Inch 4k

PR Series touch screen monitors, with avilable size from 65 inch to 110 inch for difference size meeting room, just take it

Portable Interactive Digital Whiteboard 75 Inch 4k

Product Paramenters

Diagonal display size 65" 75" 86" 98" 110"
Bezel color Aluminum frame(Silver color) √ √ √ √ √
Back Light Direct type LED √ √ √ √ √
Active area (mm) (H) * (V) 1428.48 * 803.52 1649.66 * 927.93 1895.04 * 1065.96 2158.85 * 1214.35 2436.48 * 1370.52
Resolution 3840*2160 /UHD √ √ √ √ √
Aspect Ratio 16:9 √ √ √ √ √
Contrast Ratio 1200:1/4000:1 √ √ √ √ √
Colors 1.07 billion colors √ √ √ √ √
Brightness 350cd/m2 √ √ √ √ √
Viewing angle 178° √ √ √ √ √
Glass hardness Mohs-7 level √ √ √ √ √
Screen surface 4mm thickness Anti-Glare glass √ √ √ √ √
Panel Interactivity
Touch technology IR touch √ √ √ √ √
Touch points 20 points (Win 7/8/10)
10 points touch (Android)		 √ √ √ √ √
Touch accuracy ±2mm(Windows) √ √ √ √ √
Recognition Finger or passive stylus √ √ √ √ √
Response Rate <4ms(single touch)
<10ms(max touch inputs)		 √ √ √ √ √
Minimum object size 2mm √ √ √ √ √
Response Time <5 ms √ √ √ √ √
System support Win10/Win8/Win7/Mac OS
/Android/Chrome OS/Linux		 √ √ √ √ √
Front side Connectivity
Front ports USB3.0 * 2 lines (Public for both Android & PC); Type * 1 line (Full function)
Front Button Indicator: Red/Blue; Buttons: Power Two position for Magnetic Pen
Front speaker 10W*2
Rear side Connectivity
USB 2.0 Type A 2 √ √ √ √ √
Touch USB 2.0 Type A 1 √ √ √ √ √
HDMI in 2 √ √ √ √ √
RJ45 in & out
(public for Android & PC)		 1 √ √ √ √ √
Coaxial 1 √ √ √ √ √
AV in 1 √ √ √ √ √
AV out 1 √ √ √ √ √
VGA in 1 √ √ √ √ √
VGA audio in 1 √ √ √ √ √
Earephone out 1 √ √ √ √ √
MIC in 1 √ √ √ √ √
YPBPR IN 1 √ √ √ √ √
RS232 UART 1
Windows OPS Slot OPS & OPS-C Intel standard √ √ √ √ √
Hotspot Yes √ √ √ √ √
Bluetooth V 5.0 √ √ √ √ √
WiFi IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz
Or IEEE802.11an 2.4GHz		 √ √ √ √ √
Operating system
Android Version Android 11.0 √ √ √ √ √
Chipset Amlogic T982 √ √ √ √ √
CPU 4×ARM Cortex-A55 √ √ √ √ √
GPU RM Mali-G52 √ √ √ √ √
RAM DDR4 2GB (4G for Optional) √ √ √ √ √
ROM 16GB (32GB for Optional) √ √ √ √ √
Compliant with Windows; Mac; Linux; Chrome OS √ √ √ √ √
Built-in Camera
Model UHD Camera √ √ √ √ √
Installation Built-in the middle-upper frame √ √ √ √ √
Pixel 13MP √ √ √ √ √
FOV Diagonal: 120° √ √ √ √ √
Compliant with Windows; Mac; Linux; Chrome OS √ √ √ √ √
Built-in MIC
Installation Built-in the middle-upper frame √ √ √ √ √
Number 6, All-around √ √ √ √ √
Remote Pickup 0~8m √ √ √ √ √
Physical specifications
Net Weight (kg±2) 45 58 80 92 110
Gross Weight (kg±2) 56 68 93 110 144
Overall size(mm)
(without bracket)		 (L*H*W) 1483.8 * 898 * 91 1706 * 1022 * 91.2 1958.8* 1154.4 * 91.2 2216 * 1314.5 * 95.5 2499.6 * 1474.2 * 95.5
Overall size(mm)
(with bracket)		 (L*H*W) 1483.8 * 898 * 121 1706 * 1022 * 121.2 1958.8*1154.4*121.2 2216 * 1314.5 * 125.5 2499.6 * 1474.2 * 137.5
Carton size(mm) (L*H*W) 1590 * 1110 * 200 1820 * 1240 * 200 2060*1370*200 2362 * 1533 * 210 2606 * 1593.1 * 200
VESA (mm) 500*400 600*400 800*400 1000*400 1200*600
Electrical
Input Voltage 90-264V AC √ √ √ √ √
Power Consumption(Standby) <0.5W √ √ √ √ √
Power Consumption Maximun< 225W Maximun< 335W Maximun< 450W Maximun< 650W Maximun< 760W
Environmental
Working
Temperature		 0℃ ~ 40℃ √ √ √ √ √
Storage
Temperature		 一20℃ ~ 60℃ √ √ √ √ √
Working Humidity 10% ~ 90% RH
Non-Condensing		 √ √ √ √ √
Storage Humidity 10% ~ 60% RH
Non-Condensing		 √ √ √ √ √
Accessories
Accessories Pen * 1pcs, Remote control *1pcs, 2m power cord *1pcs, wall mount kit;
Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional)
