HC16A 6kW 16kWh All-in-One Residential Energy Storage System with LFP Battery for Home Solar Applications
HC16A 6kW 16kWh All-in-One Residential Energy Storage System with LFP Battery for Home Solar Applications
Specifications
Brand Name :
Hua Power
Model Number :
HC16A
Certification :
CE
Rated Capacity :
6kW
Surge Power :
12kVA
Rated Voltage :
208V/220V/230V/240V
Power Factor :
1
Frequency :
50Hz/60Hz±0.1%
Switch Time :
10ms
Overload Capacity(Battery Mode) :
60s@102%~110%,10s@110%~130% 3s@130%~150%,0.2s@≥150%
Max.Efficiency(Battery Mode) :
93%@48VDC
Solar Charger Type :
MPPT
MAX.PV Input Current/Power :
27A/9000kW
Voltage Range :
80V~520V
MAX.PV Open Circuit Voltage :
500V
MAX.PV Charge Current :
120A
MAX.Grid Charge Current :
120A
MAX.PV+Grid Charge Current :
120A
Description

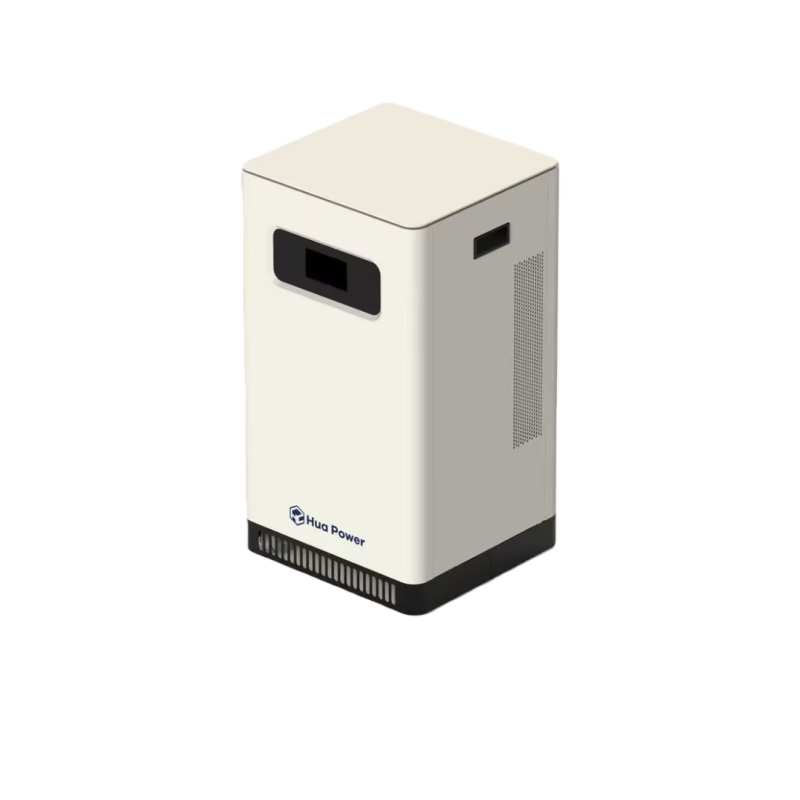

The HC16A is a 6kW / 16kWh all-in-one residential energy storage system designed for home solar and backup power applications.
It integrates an inverter and LFP battery into a compact unit, simplifying installation and reducing system complexity.

Built with a triple fire protection design and system-level safety architecture, HC16A ensures reliable and safe operation for residential users.
The LFP battery supports over 6000 charge-discharge cycles, delivering long-term performance with up to a 10-year service life.

With modular internal design and smart energy management capability, HC16A optimizes self-consumption, enhances energy independence, and provides a stable, efficient home energy solution.

HC16A 6kW 16kWh All-in-One Residential Energy Storage System with LFP Battery for Home Solar Applications

AC Input
Rated Voltage 208V/220V/230V/240V;L+N+PE
Voltage Range 90V~280V±3(normal mode),170V~280V±3(UPS mode)
Frequency 50Hz/60Hz(Auto Adaptive)
AC Output
Rated Capacity 6kW
Surge Power 12kVA
Rated Voltage 208V/220V/230V/240V
Power Factor 1
Frequency 50Hz/60Hz±0.1%
Switch Time 10ms
Overload Capacity(Battery Mode) 60s@102%~110%,10s@110%~130%
3s@130%~150%,0.2s@≥150%
Max.Efficiency(Battery Mode) 93%@48VDC
