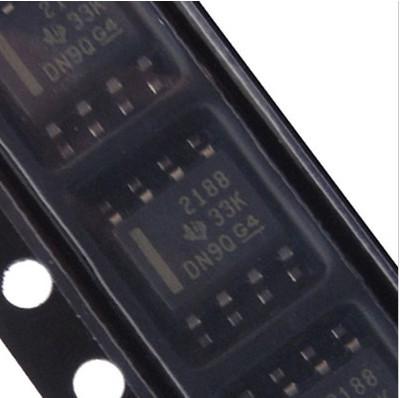

OPA2188AIDR Low Offset Voltage 2MHz 2 Channel Precision Amplifiers
OPA2188AIDR Low Offset Voltage 2MHz 2 Channel Precision Amplifiers
OPA2188AIDR Low Offset Voltage 2MHz 2 Channel Precision Amplifiers
OPA2188AIDR Low Offset Voltage 2MHz 2 Channel Precision Amplifiers
Specifications
Brand Name :
Texas Instruments
Model Number :
OPA2188AIDR
Certification :
ROHS
Place of Origin :
Malaysia
MOQ :
10PCS
Price :
NEGOTIABLE
Payment Terms :
T/T, Western Union
Supply Ability :
12500PCS/WEEK
Delivery Time :
2-3DAYS
Packaging Details :
2500PCS/REEL
Number of Channels :
2 Channel
GBP - Gain Bandwidth Product :
2 MHz
SR - Slew Rate :
0.8 V/us
CMRR - Common Mode Rejection Ratio :
106 dB to 114 dB
Output Current per Channel :
18 mA
Ib - Input Bias Current :
850 pA
Vos - Input Offset Voltage :
0.025 mV
en - Input Voltage Noise Density :
8.8 nV/sqrt Hz
Supply Voltage - Max :
36 V
Supply Voltage - Min :
4 V
Operating Supply Current :
385 uA
Minimum Operating Temperature :
- 40 C
Maximum Operating Temperature :
+ 105 C
Input Type :
Rail-to-Rail
Output Type :
Rail-to-Rail
Supply Type :
Single, Dual
Maximum Dual Supply Voltage :
18 V
Minimum Dual Supply Voltage :
2 V
Factory Pack Quantity :
2500
Description

OPA2188AIDR Precision Amplifiers

1.Features
• Low OffsetVoltage:25μV (Maximum)
• Zerø-Drift:0.03μV/°C
• Low Noise:8.8 nV/√Hz0.1-Hzto 10-HzNoise:0.25μVPP
• ExcellentDC Precision:PSRR:142 dBCMRR:146 dBOpen-LoopGain:136 dB
• GainBandwidth:2 MHz
• QuiescentCurrent:475μA (Maximum)
• WideSupplyRange:±2 V to ±18 V
• Rail-to-RailOutput:InputIncludesNegativeRail
• RFI FilteredInputs
•MicroSIZEPackages

2.Applications
• BridgeAmplifiers
• StrainGauges
• TestEquipment
• TransducerApplications
• TemperatureMeasurement
• ElectronicScales
• MedicalInstrumentation
• ResistanceTemperatureDetectors
• Precision Active Filters

3.Description
TheOPA2188operationalamplifierusesTIproprietaryauto-zeroingtechniquesto providelowoffsetvoltage(25μV, maximum),andnearzero-driftovertimeandtemperature.
Thisminiature,high-precision,low quiescentcurrentamplifier
offershighinputimpedanceand rail-to-railoutputswingwithin15mV of the rails.Theinputcommon-moderangeincludesthe negativerail.Eithersingleor dualsuppliescan be usedin the rangeof 4 V to 36 V (±2V to ±18 V).
TheOPA2188deviceis availablein MSOP-8andSO-8packages.The deviceis specifiedfor operationfrom–40°C to +105°C

OPA2188AIDR Low Offset Voltage 2MHz 2 Channel Precision Amplifiers

OPA2188AIDR Low Offset Voltage 2MHz 2 Channel Precision Amplifiers

4.Why choose us? 100% brand new and discounted price high efficiency Fast delivery Professional team service 10 years of experience in electronic components Electronic components agent Advantage logistics discount Quality after-sales service
