IEC 60598-2-8 Handlamp Impact Tester 400mm 1000mm Drop Heights
IEC 60598-2-8 Handlamp Impact Tester 400mm 1000mm Drop Heights
Specifications
Brand Name :
HongCe
Model Number :
HL-1
Certification :
Calibration Certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
10 Sets per month
Delivery Time :
25 days
Packaging Details :
Plywood case
Usage :
Impact resistance test
Warranty :
1 Year
Product name :
Impact Tester for Handlamps
Standard :
IEC60598-2-8
Material :
Stainless steel and aluminum
Impact height :
400mm/1000mm
External dimensions :
1250mm×1500mm×200mm
Description

Professional Handheld Lamp Impact Resistance Tester | IEC 60598-2-8 Compliant | Portable Luminaire Safety Testing Equipment | 400mm & 1000mm Drop Heights | Durable Construction

Product introduction for Light Testing Equipment:

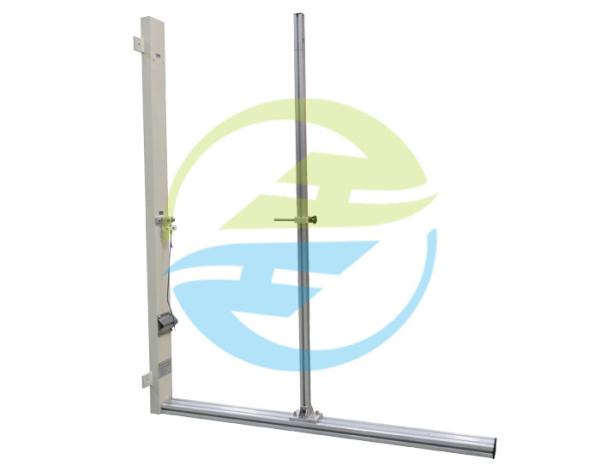

Our handlamp testing gadget meets all the guidelines in IEC60598-2-8:2007, specifically section 8.6.6.2 and the setup shown in Figure 1. It's built to see how tough handlamps are. This machine needs to be bolted straight onto a strong wall made of brick, stone, concrete, or something just as solid. And remember, it's operated by hand.

I would like to continue expand on this topic, how does this device work, what are the detailed steps to use it. In order to make it more comprehensive for marketing material for potential customers to understand and buy.

Application for Light Testing Equipment:

It is used to test the impact resistance of hand lamps.

Parameters for Light Testing Equipment:

Model HL-1
Product name Impact Tester for Handlamps
Bar size 40mm×40mm×5mm right-angle section with the corner rounded to a radius of 5mm.
Impact height 400mm/1000mm
External dimensions 1250mm×1500mm×200mm
Material Stainless steel and aluminum

Test procedure for Light Testing Equipment:

The handlamp, missing its lamp, hangs by its cord with point a (see Figure 1) touching the bar's corner. The suspension point is 400 mm above the bar. Pull the lamp away from the wall until the cord is level, then let it hit the bar.

Do this three times at point a, then repeat at points b and c.

After this, the lamp should still be safe and usable. Repeat the whole test, but with the suspension point 1 m above the bar.

Again, the lamp must still be safe and usable.

The lamp's protective parts should stay in place, even if bent. If the glass or clear cover breaks but isn't the only protection, it's okay.
