Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation Adjustable 250–500mm Test Height Precision IEC Test Equipment
Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation Adjustable 250–500mm Test Height Precision IEC Test Equipment
Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation Adjustable 250–500mm Test Height Precision IEC Test Equipment
Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation Adjustable 250–500mm Test Height Precision IEC Test Equipment
Specifications
Brand Name :
HongCe
Model Number :
HC9903A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
15 set /month
Delivery Time :
45 days
Packaging Details :
plywood
standard :
IEC60947-1
Test height :
250~500mm
Diameter of gyration :
75mm
Test rate :
10±2 RPM
Diameter of ferrule hole :
6.5~28.6mm
Test times :
0～9999
Description
Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation
The Wire Damage Degree Test Fixture is a precision-engineered IEC Test Equipment solution designed to evaluate the mechanical damage level of insulated conductors under standardized conditions. Manufactured by HongCe, a direct source factory with deep expertise in IEC compliance testing instruments, this equipment ensures accurate, repeatable, and standards-compliant testing for low-voltage switchgear, controlgear, and electrical component manufacturers.
Key Features
  • Adjustable test height from 250 mm to 500 mm
  • Standardized impact structure compliant with IEC clauses
  • Stable mechanical framework ensuring repeatability
  • Precision-machined drop mechanism
  • 75 mm specified structural configuration
  • High-strength corrosion-resistant metal construction
International Reference Standards
IEC 60947-1: Low-voltage switchgear and controlgear – Part 1: General rules
  • Clause 8.2.4 – Verification of mechanical properties of conductors
  • Clause 8.2.5 – Assessment of insulation damage after mechanical stress
  • Requirements for conductor impact and deformation verification
  • Evaluation of insulation resistance after mechanical damage
  • Visual and structural damage assessment standards
Technical Parameters
Model HC9903A
Test rate 10±2 RPM
Diameter of gyration 75mm
Test times 0～9999
Weights 0.2,0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg (weights superimposed)
Test height 250~500mm
Diameter of ferrule hole 6.5~28.6mm, 12 pc
Standards IEC60998-2-2, IEC60947-1
Testing Objects
  • PVC insulated wires
  • XLPE insulated conductors
  • Flexible copper cables
  • Rigid installation wires
  • Control cables
Product Image

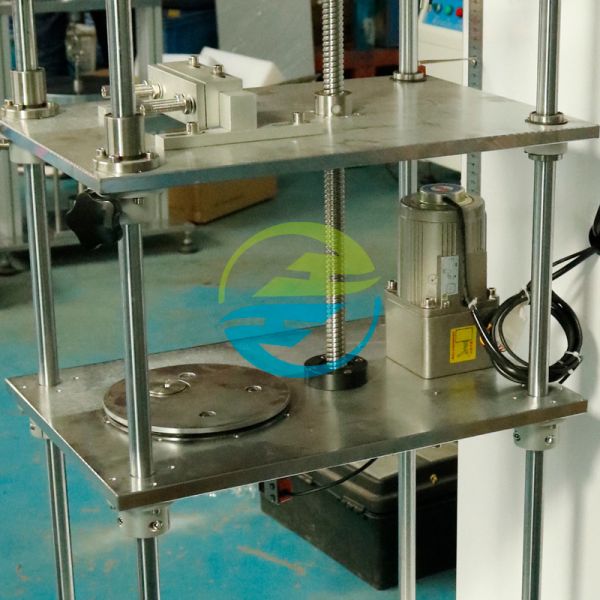

Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation Adjustable 250–500mm Test Height Precision IEC Test Equipment
Frequently Asked Questions
Is the equipment fully compliant with IEC 60947-1?
Yes, it is designed strictly according to IEC 60947-1 relevant clauses regarding conductor mechanical verification.
Can the test height be customized?
The standard adjustable range is 250–500 mm. Custom ranges can be engineered upon request.
Does the machine require electrical power?
No, it operates mechanically and does not require external power supply.
Can it test different wire diameters?
Yes, the fixture allows flexible specimen clamping for different conductor sizes.
Is calibration required?
Periodic mechanical inspection is recommended to maintain measurement accuracy.
