Touchscreen Glow Wire Flammability Testing Equipment for Plastic & Electrical Components | IEC 60695 Compliant
Touchscreen Glow Wire Flammability Testing Equipment for Plastic & Electrical Components | IEC 60695 Compliant
Touchscreen Glow Wire Flammability Testing Equipment for Plastic & Electrical Components | IEC 60695 Compliant
Touchscreen Glow Wire Flammability Testing Equipment for Plastic & Electrical Components | IEC 60695 Compliant
Specifications
Brand Name :
HongCe
Model Number :
GW-2
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5 Sets per month
Delivery Time :
30 working days
Packaging Details :
Plywood
name :
glow wire test apparatus
standard :
IEC 60695
application :
Glow Wire Test
Control mode of operation :
PLC control
Glowing filament :
Ф4mm ± 0.04mm
Maximum depth of heating :
7mm ± 0.5mm
Testing time :
30s±1s
Thermocouple :
temperature resistance 1100°
Description

Touchscreen Glow Wire Flammability Testing Equipment for Plastic & Electrical Components | IEC 60695 Compliant

Product Description

The Touchscreen Glow Wire Test Chamber from HongCe is a precision flammability testing solution designed to evaluate the fire resistance of insulating materials, plastics, and electrical components under abnormal thermal stress.

Built by an experienced source manufacturer, this equipment combines IEC-standard accuracy, intuitive touchscreen control, and long-term reliability to support compliance testing, R&D validation, and quality control in global laboratories.

International Reference Standards:

So, the glow wire test? It's how we check if plastic stuff can handle heat. It's part of a bigger set of safety tests (IEC 60695), mainly sections 2-10 through 2-13. Think of it as a fire hazard assessment for plastics.

  • IEC 60695-2-10 – Glow wire test equipment and general test method.
  • IEC 60695-2-11 – Tests with the glow wire for flammability of end products (GWEPT).
  • IEC 60695-2-12 – Testing with glow wire for flammability of materials (GWFI).
  • IEC 60695-2-13 – Tests with the glow wire for the flammability of materials (GWIT).
Applications
  • Electrical and electronic product safety testing
  • Plastic material flame resistance evaluation
  • Appliance certification laboratories
  • Automotive electrical component testing
Parameters of Glow Wire Test Apparatus:
ParametersModel GW-2(Touch screen)
Working voltage 220V /50Hz
Control operation mode PLC control, 7 inch color touch screen operation, with infrared remote control
Glowing filament Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape,horizontal standing
Specimen pressure on glowing filament 0.95N±0.1N
Maximum depth of heating 7mm ± 0.5mm
Specimen movement speed 10mm /s ～ 25mm /s
Temperature calibration Calibration temperature:960°±10°C, the hot wire by electric heating
Thermocouple: RS imported 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100°
Silver foil: purity 99.8%, area :2m², thickness:0.06mm
Tray A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample
Test chamber >0.5 cube,sample distance from the inside of the box is greater than 100mm, black yogon background,background illuminance ≤ 20Lx,with exhaust fan
Testing time 30s±1s
Test procedure The test sample is driven by the car and automatic run, the car will return automatically after glow-wire entered the test sample of 7mm
Lighting Equip with lighting in the test chamber, with control
Dimension 1100*550*1200mm, 140kg

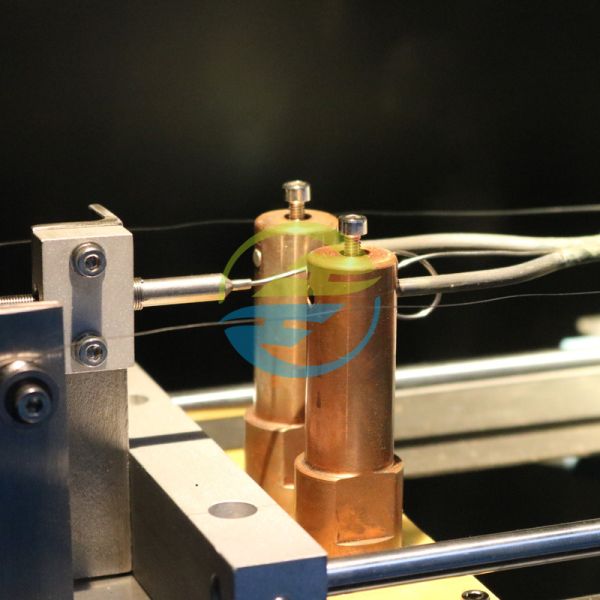

Product detail picture:

Touchscreen Glow Wire Flammability Testing Equipment for Plastic & Electrical Components | IEC 60695 Compliant

FAQ
Q1: Is this glow wire tester suitable for certification laboratories?
Yes. The equipment is designed strictly according to IEC 60695 standards and is widely used in third-party labs.
Q2: Can the temperature be calibrated?
Yes. The system supports calibration to ensure long-term accuracy.
Q3: Do you provide customized voltage or standards?
Absolutely. We support customized power supply, language interface, and regional standards.
Q4: How stable is the glow wire temperature during testing?
The heating system ensures rapid stabilization with minimal fluctuation (±1 °C).
Q5: Are training and guidance provided?
Yes. Operation guidance, test methods, and technical support are included.
