Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control
Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control
Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control
Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control
Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control
Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control
Specifications
Brand Name :
HongCe
Model Number :
HH0813
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10 set per month
Delivery Time :
60 days
Packaging Details :
Plywood
Power supply :
120V,50Hz
Salt water temperature :
35℃±1℃ 50℃±1℃
Compressed air pressure :
1.00±0.01kgf/cm²
Meet the standards :
JIS, ASTM, CNS
Acid value PH :
6.5~7.2 3.0~3.2
Relative humidity of the test chamber :
>85%
Description
Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control
Product introduction

Let's face it, corrosion is a pain. Coastal air, road salt, pollution, and even just plain old humidity can ruin products before their time.

That’s where HongCe comes in. They don’t just make salt spray test chambers; they help you protect your product quality and your name.

This chamber lets you make harsh, salty conditions in a way that's controlled and consistent. Whether you're checking surface coatings, testing rust prevention, or meeting rules, this chamber helps you find problems before your products hit the shelves.

Since HongCe makes its own IEC test gear, they can do custom setups, deliver fast, and give you tech help for years to come. Labs, R&D centers, and inspection teams everywhere trust their chambers.

Features
  • Uniform salt fog distribution for accurate and repeatable test results
  • Stable temperature control for long-duration corrosion testing
  • Acid-resistant chamber structure with long service life
  • Programmable control system with real-time monitoring
  • Transparent observation window for test visibility
  • Easy operation & maintenance for daily lab use
  • Supports NSS, AASS, and CASS corrosion tests
  • Designed and manufactured by HongCe (source factory)
Technical Specifications
Model HH0813 HH0813A HH0813B HH0813C HH0813D
Inner chamber size (mm) 600*450*400 900*600*500 1200*800*600 1600*800*600 2000*800*600
Outer chamber size (mm) 1070*600*1180 1410*880*1280 1900*1180*1600 2300*1180*1500 2700*1180*1600
Test chamber temperature Salt water test method (NSS ACSS)35℃±1℃/ corrosion resistance test method(CASS)50℃±1℃
Pressure barrel temperature Salt water test method(NSS ACSS)47℃±1℃/ corrosion resistance test method(CASS)63℃±1℃
Salt water temperature 35℃±1℃ 50℃±1℃
Test chamber capacity 108L 270L 480L 800L 1440L
Salt water tank capacity 15L 25L 40L 40L 40L

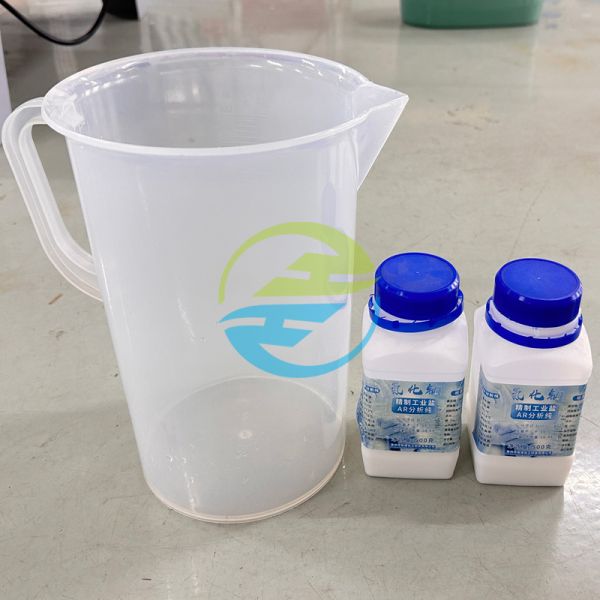

Salt concentration Sodium Chloride Solution concentration of 5% or add 0.26g of copper chloride (CuCl2 2H2O) per every liter of the Sodium Chloride Solution in the concentration of 5%
Compressed air pressure 1.00±0.01kgf/cm²

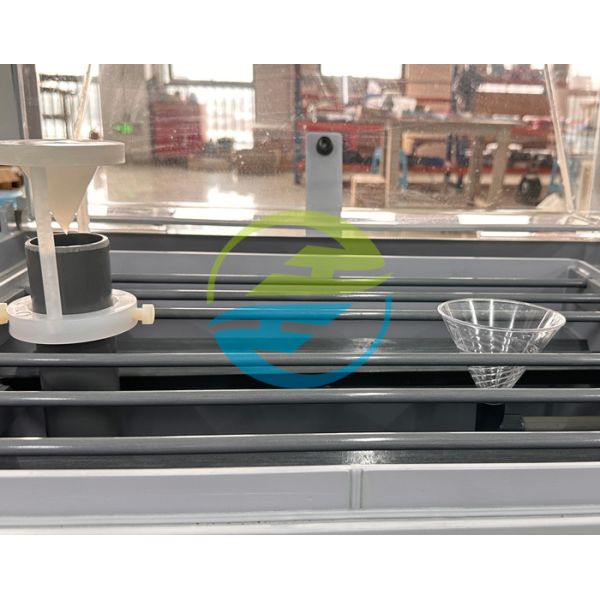

Spray amount 1.0~2.0ml/80cm²/h (collecting at least for 16 hours, take the average)
Relative humidity of testing chamber More than 85%
Acid value PH 6.5~7.2 3.0~3.2
Spray mode Programmable spray (including continuous spray and intermittent spray)
Meet the standards JIS, ASTM, CNS
Power supply 120V,60Hz
International Reference Standards
  • IEC 60068-2-11 – Environmental testing – Part 2-11: Tests – Test Ka: Salt mist
  • IEC 60068-2-52 – Environmental testing – Salt mist, cyclic test
  • ASTM B117 – Standard Practice for Operating Salt Spray (Fog) Apparatus
  • ISO 9227 – Corrosion tests in artificial atmospheres – Salt spray tests
  • GB/T 10125 – Corrosion tests in artificial atmospheres – Salt spray tests
  • JIS Z 2371 – Methods of salt spray testing
Product Images
Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control

Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control

FAQ

Q1: Can this chamber meet ASTM B117 requirements?

Yes. It is designed and calibrated according to ASTM B117 and IEC 60068 test requirements.

Q2: Can I customize chamber size and power supply?

Yes. HongCe customized supports chamber dimensions, voltage, and control systems.

Yes. We provide operation manuals, video guidance, and remote technical support.

Q4: Can this equipment run continuously for long tests?

Yes. The chamber is designed for stable long-term operation.

Q5: How long is the delivery time?

Standard models ship within 7–15 working days. Custom orders depend on configuration.
