IPX8 Waterproof Tester with 1-5m Test Water Depth Range and Negative Pressure Range: -50~0KPA for Immersion Test Equipment
IPX8 Waterproof Tester with 1-5m Test Water Depth Range and Negative Pressure Range: -50~0KPA for Immersion Test Equipment
IPX8 Waterproof Tester with 1-5m Test Water Depth Range and Negative Pressure Range: -50~0KPA for Immersion Test Equipment
IPX8 Waterproof Tester with 1-5m Test Water Depth Range and Negative Pressure Range: -50~0KPA for Immersion Test Equipment
Specifications
Brand Name :
HongCe
Model Number :
HC-IPTE-002
Certification :
calibration certificate (cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C,T/T
Supply Ability :
5 set per month
Delivery Time :
45 working days
Packaging Details :
Plywood
Test Water Depth Range :
1-5m
Pressure Adjustment Range :
Negative Pressure Range: -50~0KPA; Positive Pressure Range: 10~50KPA
Safety Valve Exhaust Pressure :
0.15MPa
Pressure Holding Time :
0-999999s
Protection Devices :
Safety Valve, Residual Current Circuit Breaker (RCCB) Protection
Warranty Period :
One Year
Description
IPX8 Positive & Negative Pressure Waterproof Sealing Test Equipment for Long-Term Immersion Testing | IP Test Equipment
Product Description

Want to know if your product is really waterproof? The HongCe IPX8 Waterproof Tester will put it to the test. It copies underwater situations to see if water can actually get in. The pros at HongCe built this machine, and it gives you results you can trust every time. So, if you want to be sure your product can handle being underwater, this is the tool you need.

Features
  • Precise positive & negative pressure control for IPX8 testing
  • Stable immersion tank with corrosion-resistant structure
  • Digital pressure monitoring with high accuracy
  • Automatic pressure holding and timing control
  • Transparent test chamber for real-time observation
  • User-friendly operation interface
  • High sealing performance with safety protection design
International Reference Standards
  • IEC 60529 - Clause 14.2.8 – IPX8: Equipment suitable for continuous immersion in water
  • ISO 20653 - Road vehicle protection against water ingress (IPX8 condition)
  • GB/T 4208 - Enclosure protection grades (equivalent to IEC 60529)
  • EN 60529 - European adoption of IP code testing
Technical Parameters
Parameter Specification
External Dimensions 550*550*950mm
Internal Dimensions 270*310mm
Tank Wall Thickness 15mm
Tank Material Acrylic Sheet
Sample Tray Dimensions Diameter 250mm
Tray Height from Bottom 150mm
Equipment Weight Approx. 80KG
Pressure Control Method Automatic Adjustment
Pressure Error ±0.2m/±0.002 MPa

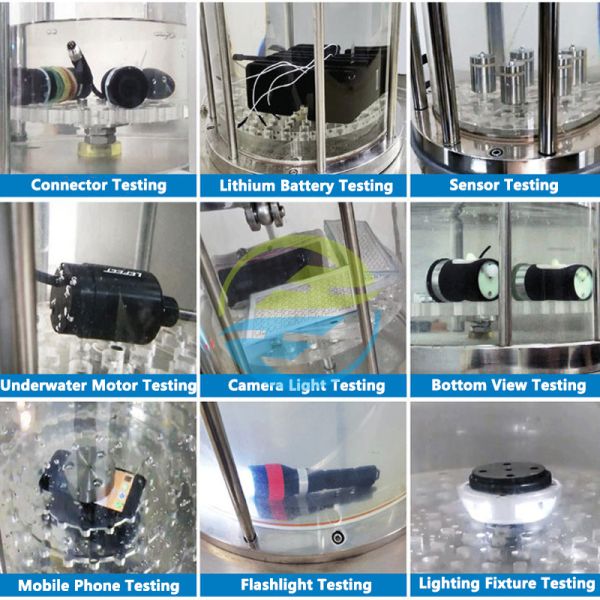

Detailed images

IPX8 Waterproof Tester with 1-5m Test Water Depth Range and Negative Pressure Range: -50~0KPA for Immersion Test Equipment

FAQ
  • Q1: Can the test pressure and immersion depth be customized?
    A: Yes, IPX8 testing conditions are defined by agreement. We support full customization.
  • Q2: Is this equipment suitable for long-duration testing?
    A: Absolutely. The system is designed for stable pressure holding over extended periods.
  • Q3: Can different sample sizes be tested?
    A: Yes. The test chamber can be customized based on sample dimensions.
  • Q4: Is calibration required?
    A: We provide factory calibration and offer periodic calibration support.
  • Q5: Does HongCe provide overseas technical support?
    A: Yes, we support international customers with remote and on-site service.
