Specifications
Brand Name :
HongCe
Model Number :
HJ0606
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,L/C
Supply Ability :
10 sets per month
Delivery Time :
45 working days
Packaging Details :
Plywood
Name :
Oxygen Bomb (Air Bomb) Aging Tester
Standard :
IEC60811, IEC60335
Warranty :
1 Year
Maximum Operating Pressure :
4MP
Temperature Alarm :
0～200℃ Adjustable
Temperature deviation :
±0.5℃
Secure Burst Pressure :
2.7～3.3MP
Input Power :
230V/50HZ
Description
Oxygen Bomb Aging Tester for Rubber & Polymer Materials
Material aging significantly impacts product safety, reliability, and longevity. The Oxygen Bomb Aging Tester accelerates the aging process by exposing samples to high-pressure oxygen or compressed air at elevated temperatures, enabling engineers and quality teams to predict material behavior in real-world conditions.
Manufactured by HongCe, this tester features a durable pressure vessel, precise temperature control, and strict compliance with IEC and ISO standards. It delivers reliable data for raw material verification, formulation refinement, and long-term product safety assurance.
International Reference Standards
IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements Clause 22.32
IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3
Product Features
  • High-strength stainless steel pressure vessel for long-term safe operation
  • Precise temperature control ensures stable and repeatable aging conditions
  • Supports both oxygen and compressed air aging tests
  • Uniform heat distribution for consistent specimen exposure
  • Automatic pressure monitoring with safety protection system
Test Specimens
  • Vulcanized rubber
  • Thermoplastic rubber (TPR, TPE)
  • Silicone rubber
  • Polyethylene (PE)
  • Polypropylene (PP)
  • PVC insulation materials
  • Cable jackets and sheaths
  • Sealing rings and gaskets
  • Polymer composite materials
Technical Parameters
Parameter Specification
Input Power 230V/50HZ
Secure Burst Pressure 2.7～3.3MP
Temperature-controlled range indoor temperature～200℃
Outer Chamber Dimensions 820mm*420mm*670mm
Inside Chamber Dimensions Diameter 123*Height 337mm
Inside Chamber Volume 4000cm³
Heating Power 2.5KW
Temperature Alarm 0～200℃ Adjustable
Temperature deviation ±0.5℃
Temperature Control Intelligent control
Temperature Display Thermometer display
Material Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate

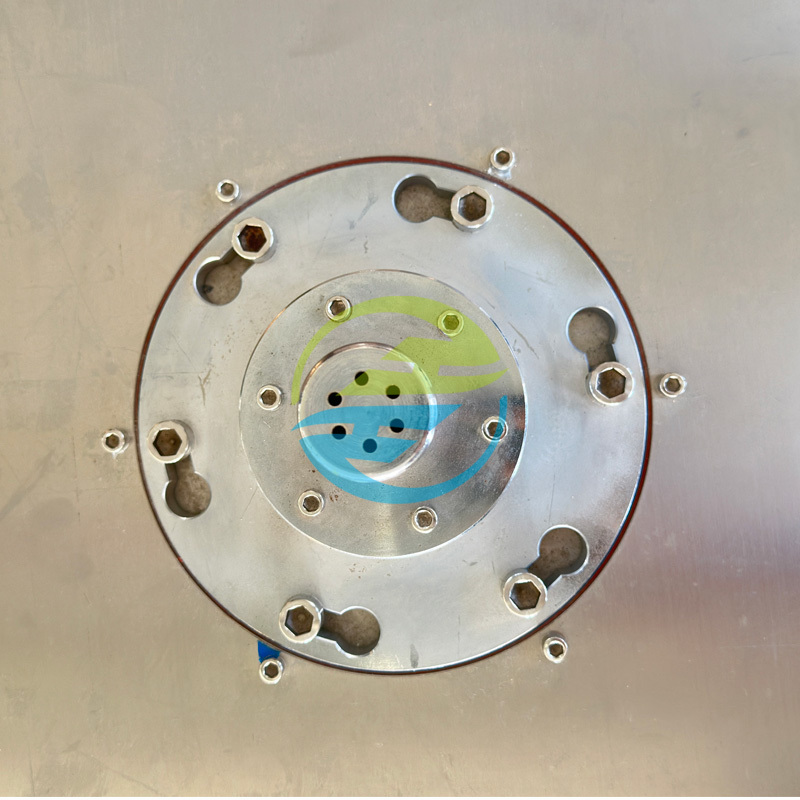

Product Photos
Oxygen Bomb Aging Tester for Rubber & Polymer Materials | High-Pressure Thermal Aging Equipment | IEC Test Equipment Manufacturer
Frequently Asked Questions
Q1: Can this tester use air instead of oxygen?
Yes, the system supports both oxygen and compressed air aging tests.
Q2: Is the pressure vessel safe for long-term operation?
Absolutely. The pressure vessel is made from high-strength stainless steel and equipped with multiple safety protections.
Q3: Can test parameters be customized?
Yes, temperature range, pressure range, and sample capacity can be customized based on your testing requirements.
Q4: Is this equipment suitable for cable testing?
Yes, it is widely used for cable insulation and sheath aging tests according to IEC standards.
Q5: Do you provide calibration or standard verification?
Yes, calibration guidance and compliance documentation can be provided upon request.
Why Choose HongCe?
  • HongCe is not a trading company—we are a direct manufacturer specializing in IEC test equipment
  • In-house design & machining
  • Strict quality inspection before delivery
  • Customization support based on standards or samples
  • Stable supply for long-term projects
  • Exported to laboratories and manufacturers worldwide
  • We understand testing standards because we build equipment for compliance, not just for appearance
