IP Testing Equipment with IPX3 to IPX6 Waterproof Testing Gear Featuring Stainless Steel Water Tank and Adjustable Spray Pressure
IP Testing Equipment with IPX3 to IPX6 Waterproof Testing Gear Featuring Stainless Steel Water Tank and Adjustable Spray Pressure
IP Testing Equipment with IPX3 to IPX6 Waterproof Testing Gear Featuring Stainless Steel Water Tank and Adjustable Spray Pressure
IP Testing Equipment with IPX3 to IPX6 Waterproof Testing Gear Featuring Stainless Steel Water Tank and Adjustable Spray Pressure
Specifications
Brand Name :
HongCe
Model Number :
IPX56A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiatable
Payment Terms :
L/C,T/T
Supply Ability :
10 set /month
Delivery Time :
45 days
Packaging Details :
Plywood
Power supply :
AC380V/60Hz
Test range :
IPX3 to IPX6
Test time :
0-99min
Water tank(L) :
800L (customizable)
Description
IPX3 to IPX6 Spray Waterproof Testing Equipment
This spray waterproof testing equipment from HongCe evaluates enclosure water ingress protection for IPX3 to IPX6 ratings. It simulates rain, splashes, and high-pressure spray conditions to help manufacturers verify product compliance with international IP safety standards accurately, safely, and consistently.
Reference Standards
IEC 60529:
  • Clause 14.2.3: IPX3 – Water spray test
  • Clause 14.2.4: IPX4 – Splashing water test
  • Clause 14.2.5: IPX5 – Water jet test
  • Clause 14.2.6: IPX6 – Powerful water jet test
ISO 20653: Road vehicles degrees of protection (IP code)
EN 60529: European enclosure protection standard
Key Features
  • Comprehensive IPX3, IPX4, IPX5 and IPX6 waterproof testing in one integrated system
  • Adjustable spray pressure and flow rate for precise standard compliance
  • High-quality stainless steel water tank with corrosion-resistant construction
  • Stable nozzle layout ensures uniform and repeatable spray distribution
  • Intelligent control system for easy operation and parameter configuration
Technical Specifications
Parameter Specification
Power supply for machine AC380V, 60Hz
Power supply for test sample ≤ 440Vac 16A
Test range IPX3 to IPX6
Test time 0-99min
Water tank 800L (customizable)
Water tank material SUS304# stainless steel
IPX3, X4 Specifications
IPX3,4 Spray nozzle IEC 60529 Figure 5 Brass head
Pressure Gauge 0 - 1.6 bar
IPX3,4 Spray Flow 10 L/min -15 L/min
Number of Holes 121
Diameter of Nozzle Holes Φ0.5mm
Nozzle Material Brass (H62)
Flapper Cover Angle 30°
IPX5, X6 Specifications
Aperture of jet nozzle Ф6.3mm (IPX5); Ф12.5mm (IPX6)
Spray flow of jet nozzle 12.5L/min -18.75 L/min (IPX5); 100L/min -150 L/min (IPX6)
Rotary Table
Diameter Φ600mm, Φ800mm and Φ1000mm available
Rotation Speed 1r/min
Tiltable angle 15°
Test angle of rotation 90°, continuous rotation
Applications
  • Electrical and electronic product waterproof testing
  • Automotive parts and connectors water ingress testing
  • Lighting fixtures (indoor & outdoor) IP protection verification
  • Household appliances waterproof performance evaluation
  • Outdoor communication equipment testing

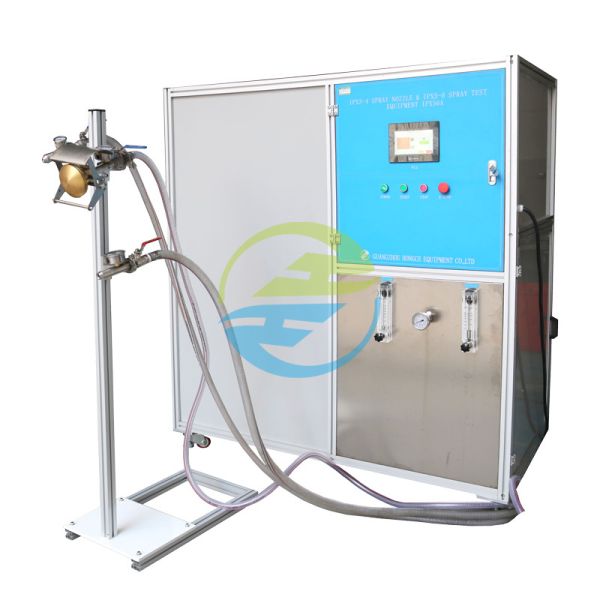

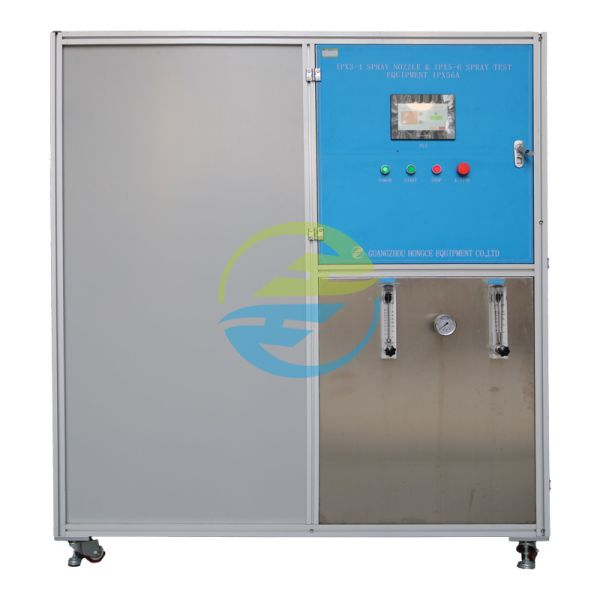

Product Image
IP Testing Equipment with IPX3 to IPX6 Waterproof Testing Gear Featuring Stainless Steel Water Tank and Adjustable Spray Pressure
Frequently Asked Questions
Q1: Can one system really cover IPX3 to IPX6?
Yes. This equipment integrates multiple spray and jet modes, adjustable through the control system.
Q2: Is customization available for test area size?
Absolutely. Test space and structure can be customized based on your product dimensions.
Q3: Is the equipment suitable for certification labs?
Yes. It is widely used by third-party testing labs and complies with IEC and ISO standards.
Q4: What kind of water quality is required?
Clean tap water is sufficient; the system includes a circulation and filtration design.
Q5: How difficult is daily maintenance?
Very simple. Modular design allows easy cleaning and nozzle inspection.
