High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
Specifications
Brand Name :
HongCe
Model Number :
HC1017A
Certification :
calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1set
Price :
Negotiatable
Payment Terms :
L/C,T/T,D/P
Supply Ability :
10 set per month
Delivery Time :
30 days
Packaging Details :
plywood
Supply Voltage :
220V
Displacement accuracy :
±0.5%
Deformation accuracy :
±0.5%
Motor power :
2kW
Weight :
145kg
Fixtures :
Two sets
Safety devices :
Equipped with emergency stop button
Warranty :
One year
Description

High-Precision Universal Tensile Strength Testing Machine


Product Description:


The Universal Tensile Strength Testing Machine is a high-precision testing device widely used in laboratories and industrial production. It supports tensile, compression, flexure, shear, and other mechanical property tests on a variety of materials, including metals, plastics, rubber, and composites. Its user-friendly design, compatible with international standards, ensures accurate and reliable test data every time, providing a solid foundation for scientific research and quality control.


Product Features:


High-precision servo control system: Ensures stable loading and minimal error.
Versatile testing: Supports multiple mechanical tests including tension, compression, flexure, shear, and peel.
International Certification Compatibility: Complies with ASTM, ISO, and IEC standards, making it suitable for export and international testing laboratories.


International reference standards:


ASTM D638 – Standard Test Method for Tensile Properties of Plastics
ASTM D412 – Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension
ASTM E8/E8M – Standard Test Methods for Tension Testing of Metallic Materials
ISO 527-1/2 – Plastics – Determination of Tensile Properties
IEC 60695 – Fire hazard testing standards involving mechanical stress


Technical Parameters:


Item Specification
Capacity 10 kN
Accuracy Class 0.5
Maximum crossbeam load 20 kN
Effective force range 0.02/100-100%
Machine travel 800 mm
Test speed 0-500 mm/min
Control system Fully digital AC servo controller
Voltage 220 V, 50 Hz


Test Items:


Tensile Strength

Elongation at Break

Compressive Strength

Flexural Strength

Shear Strength, etc.

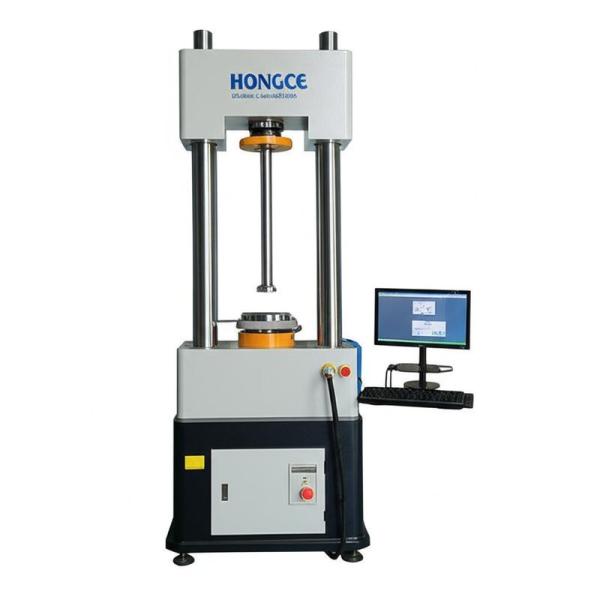

Detail pictures:


High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber
