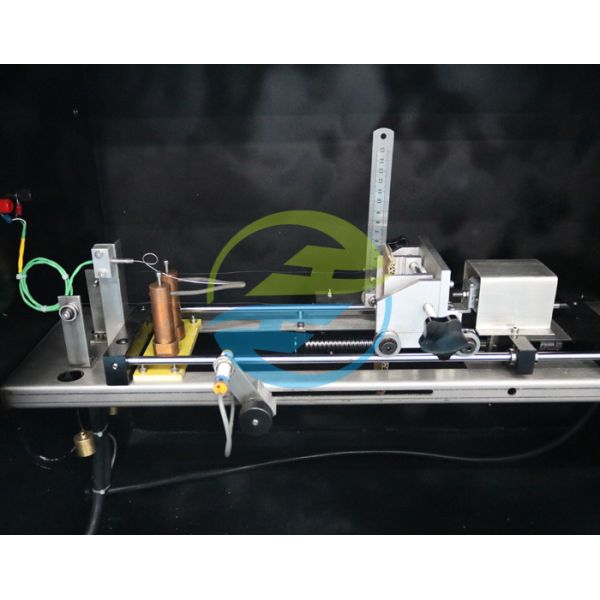

Button-Control Glow Wire Flammability Tester with High Precision Heating for Realistic Fire Hazard Simulation
Button-Control Glow Wire Flammability Tester with High Precision Heating for Realistic Fire Hazard Simulation
Button-Control Glow Wire Flammability Tester with High Precision Heating for Realistic Fire Hazard Simulation
Button-Control Glow Wire Flammability Tester with High Precision Heating for Realistic Fire Hazard Simulation
Specifications
Brand Name :
HongCe
Model Number :
GW-1
Certification :
calibration certificate (cost additional )
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
10 set /month
Delivery Time :
30 days
Packaging Details :
plywood
Control :
Button-Control Version
Glowing filament :
Ф4mm ± 0.04mm
Specimen pressure on glowing filament :
0.95N±0.1N
Maximum depth of heating :
7mm ± 0.5mm
Specimen movement speed :
10mm /s ～ 25mm /s
Testing time :
30s±1s
Description
Glow Wire Flammability Tester for IEC Fire Hazard Simulation | High-Temperature Ignition & Material Safety Compliance Testing Equipment
The Glow Wire Flammability Tester from HongCe, a trusted original manufacturer in China, is engineered to simulate fire hazards caused by overheated or glowing components. Designed for laboratories, certification bodies, and manufacturers requiring accurate, repeatable, and standards-compliant fire safety testing for plastics and electrical components.
Key Features
  • Button-Control Operation - No screen required. All functions controlled through durable physical buttons.
  • High Precision Heating - Glow wire temperature adjustable up to 960°C with stable thermal performance.
  • Realistic Fire Hazard Simulation - Reproduces ignition and flame behavior caused by overheated parts.
  • High-Temperature Resistant Test Chamber - Steel chamber with observation window ensures safe testing.
  • Stable Glow Wire Construction - Nickel-chrome heating wire ensures consistent ignition and long-lasting performance.
Technical Parameters
Model GW-1
Glowing filament Ф4mm ± 0.04mm Ni/Cr(77/20) special standard ring shape, horizontal standing
Thermocouple 1mm import K thermocouple, temperature resistance of armour is 1100℃ (better than standard of 1050℃)
Ohmic heating temperature 500℃～960℃ (digital display can be preset), temperature fluctuation <3℃
Specimen pressure 0.95N±0.1N (adjustable)
Maximum depth of heating 7mm ± 0.5mm
Specimen movement speed 10mm/s～25mm/s
Testing time 30s±0.1s (1s～999.9s digital display preset)
Thickness of ignite bedding board 10mm, white pine board cover 12g/m²～30g/m² standard silk paper
Volume of test site ≥0.5m³ black background, background illuminance ≤20Lx
Dimensions & weight W: 1105mm × D: 580mm × H: 1300mm Gas vent:100mm, 140kg
Power 1kVA 220V±10%/50Hz (can be customized)
Compliance Standards
  • IEC 60695-2-10 — Glow wire apparatus and general test method
  • IEC 60695-2-11 — Glow-Wire Flammability Test (GWFI)
  • IEC 60695-2-12 — Glow-Wire Ignition Temperature (GWIT)
  • IEC 60695-2-13 — Glow-Wire Material Flammability Test (GWMFI)
  • UL 746A — Polymeric material flammability standard
  • IEC 60335 / IEC 60950 / IEC 61058 — Safety requirements for electrical appliances
  • ISO 1210 & ISO 4589 — Material flammability and oxygen index
Applications
  • Electrical appliances & components
  • Automotive plastic parts
  • Polymer & material manufacturers
  • Quality inspection labs
  • R&D departments
  • Lighting products
Product Image
Button-Control Glow Wire Flammability Tester with High Precision Heating for Realistic Fire Hazard Simulation
