Electrical Cable Damage Degree Test Apparatus for Conductor Integrity & Insulation Evaluation
Electrical Cable Damage Degree Test Apparatus for Conductor Integrity & Insulation Evaluation
Electrical Cable Damage Degree Test Apparatus for Conductor Integrity & Insulation Evaluation
Electrical Cable Damage Degree Test Apparatus for Conductor Integrity & Insulation Evaluation
Specifications
Brand Name :
HongCe
Model Number :
HC9903B
Certification :
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T,L/C
Supply Ability :
10 set per month
Delivery Time :
35 days
Packaging Details :
Plywood
Company Specialization :
Manufacturing a diverse range of inspection equipment
Standards Compliant :
UL486A-B, UL498
Counterweights :
0.7-45.4kg Two Sets
Sales Performance :
Remarkable sales performance both at home and abroad
Weights :
0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg
Test Rate :
9±1 RPM
Test Height :
250~500mm
Number Of Trials :
0-9999 Times, Can Be Preset
Description

Electrical Cable Damage Degree Test Apparatus for Conductor Integrity & Insulation Evaluation

Product Description

The Electrical Cable Damage Degree Test Apparatus is a precision Cable Testing Equipment designed to assess conductor damage and insulation integrity after mechanical stress. Manufactured by HongCe, a professional source factory, this apparatus provides repeatable, standard-compliant results for laboratories, certification bodies, and cable manufacturers focused on product safety and long-term reliability.

Features

  • Precision mechanical structure ensures stable and repeatable damage simulation
  • Designed for accurate assessment of conductor damage degree
  • Compatible with various cable diameters and constructions
  • Smooth operation with low mechanical loss
  • High-strength materials ensure long service life
  • Easy specimen installation and removal

Technical Parameters:

Product Name: Cable Testing Equipment

Counterweights: 0.7-45.4kg Two Sets

Company Focus:

  • Electric wire inspection equipment
  • Mechanical robustness testing equipment
  • Inspection equipment for fire-hazard potential
  • Testing indicators for anti-electric shock and solid-object ingress
  • General inspection equipment
  • Non-standard testing equipment

Test Height: 250~500mm

Test Rate: 9±1 RPM

Diameter of gyration: 76mm

International Reference Standards UL486A - B, UL498
Driving Method Motor
Company Name Guangzhou Hongce Equipment Co., Ltd.
Weights 0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg
After-sale Service The working and sales teams can guarantee fast and high-efficiency after-sale service globally.
Test Rate 9±1 RPM
Company Location Guangdong, China
Number Of Trials 0-9999 Times, Can Be Preset
Standards Compliant UL486A-B, UL498
Diameter of gyration 76mm

International Reference Standards

This Cable Testing Equipment is designed with reference to the following international standards:

  • UL 486A-B
    Wire Connectors – Mechanical Strength and Damage Evaluation
  • IEC 60227 / IEC 60245
    Polyvinyl chloride and rubber insulated cables
  • IEC 60811
    Common test methods for insulating and sheathing materials
  • ISO 6722
    Road vehicles – Single-core cables

Detailed photos

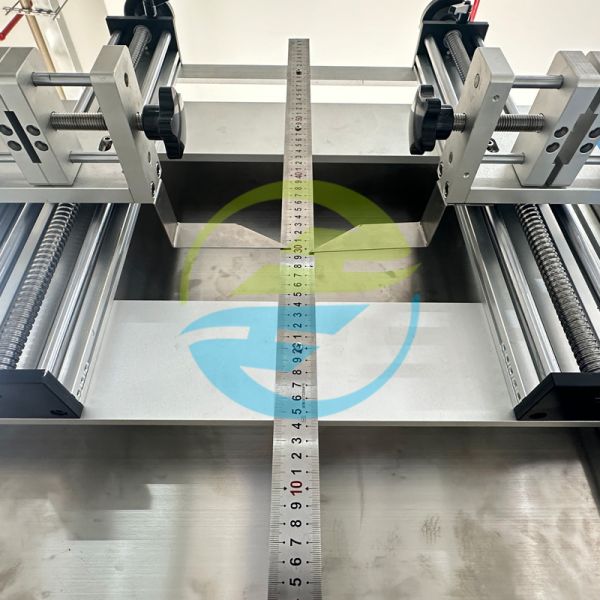

Electrical Cable Damage Degree Test Apparatus for Conductor Integrity & Insulation Evaluation

FAQ

  • Q1: Is this apparatus suitable for different cable standards?
    Yes. The apparatus is designed to meet multiple international standards and can be customized for specific test clauses.

  • Q2: Can the equipment test automotive cables?
    Yes. It is suitable for automotive electrical cables and wiring harness conductors.

  • Q3: Is customization available?
    Absolutely. HongCe supports customized fixtures, stroke ranges, and test parameters.

  • Q4: Is calibration required?
    Routine inspection is recommended to ensure long-term accuracy.

  • Q5: Do you provide technical training?
    Yes. Operation guidance and technical support are provided.
