The Vertical Drip Water Test Equipment from HONG CE, a trusted original manufacturer in IP testing solutions, is designed for precise evaluation of water ingress protection levels (IPX1 and IPX2). This device ensures that your products meet global waterproof testing standards, providing reliable results for industries demanding quality and durability.

• Complies with IEC 60529 standards for IPX1 and IPX2 waterproof testing.
• Adjustable drip rate and height to simulate real environmental rainfall scenarios.
• High-precision flowmeter and water distribution system for consistent droplet formation.
• Motorized sample table with adjustable angle (0°–15°) for IPX2 testing.
• Stainless steel structure (SUS304) ensures long-term durability and corrosion resistance.

The vertical drip test device strictly adheres to the technical requirements of the following international standards:

• IEC 60529: International Standard for Degrees of Protection by Enclosures (IP Code)
• Clause Details: IP Code Classification System - 1st Characteristic Numeral (Protection against Solid Foreign Objects) | 2nd Characteristic Numeral (Protection against Ingress of Liquids) | Supplementary Letters (Protection against Access to Hazardous Parts) | Supplementary Letters (Special Supplementary Information)
• IPX1 Test Requirements: Vertical dripping water, dripping rate 1-1.5 mm/min, test duration 10 minutes
• IPX2 Test Requirements: Water dripping at a 15° angle, dripping rate 3-3.5 mm/min, test duration 10 minutes (2.5 minutes per tilt position, totaling 4 positions)

Test for second characteristic numeral 1 & 2 with drip box.

For assessing the protection against vertically falling water drops.

• Electrical appliances (switches, sockets, plugs)
• Automotive electronic modules
• Outdoor luminaires

• Drip water penetration
• Surface wetting resistance
• Seal integrity under vertical water impact
• Waterproof performance degradation under tilt angle

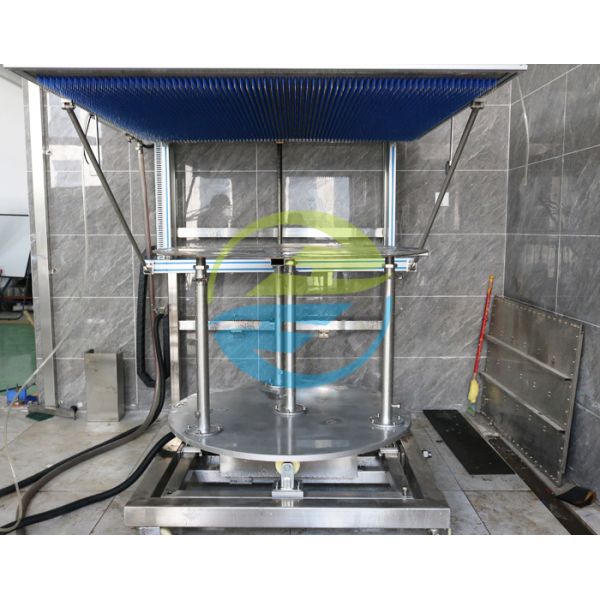

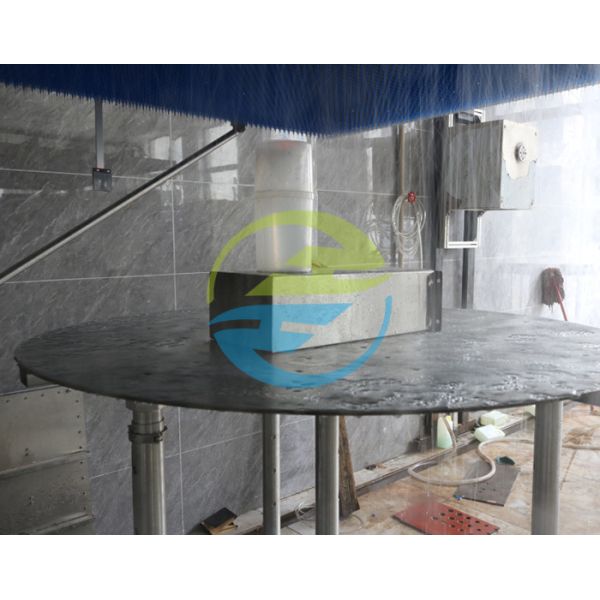

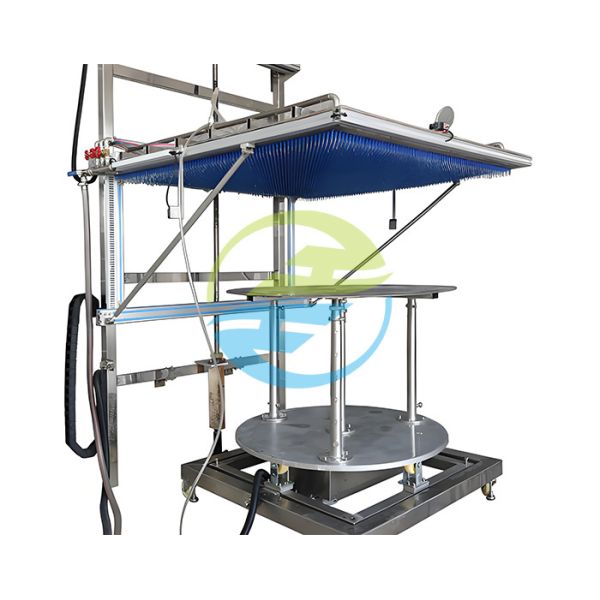

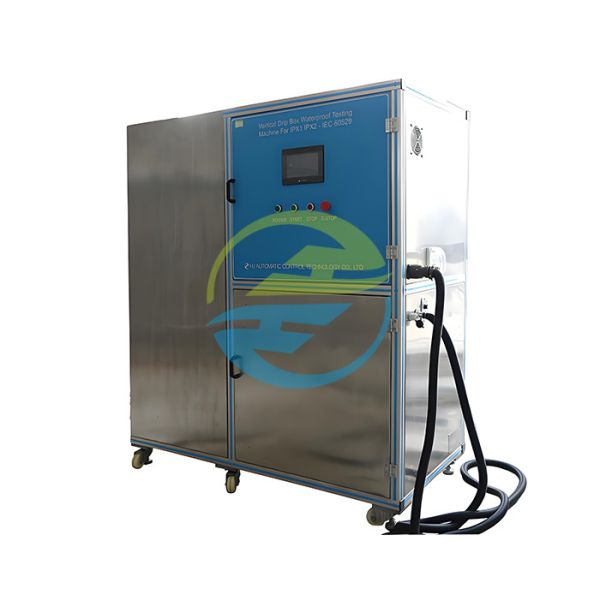

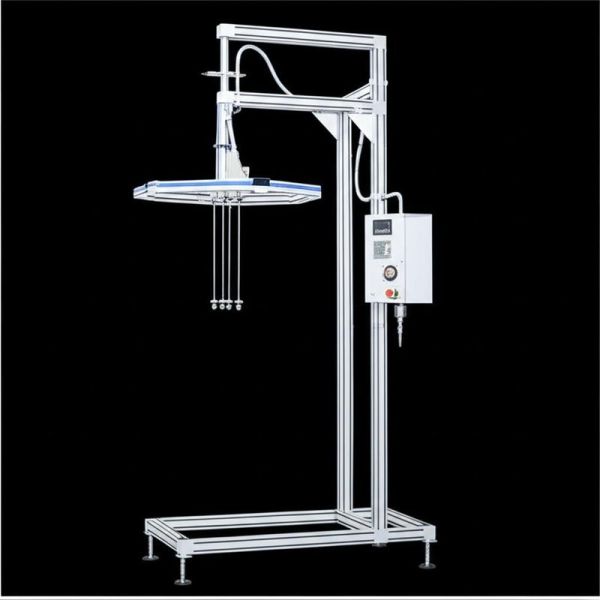

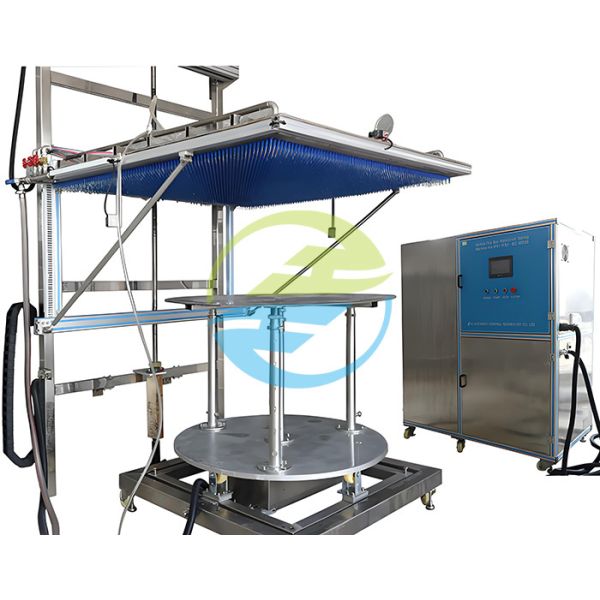

Detail pictures:
