IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm
Specifications
Brand Name :
HongCe
Model Number :
HT-I04
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
Aluminum box
Sphere diameter :
SФ35±0.2
Handle diameter :
Ф10
Probe length :
100±0.2
Handle length :
100
Diameter of the metal wire :
1
Warranty :
1 Year
Product name :
Test Rod Probe D
Standard :
IEC60529
Description

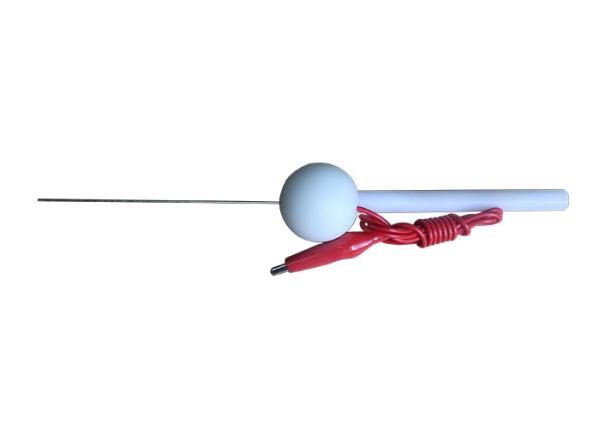

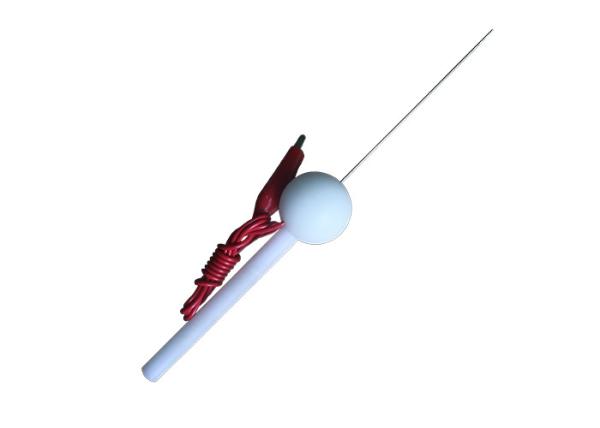

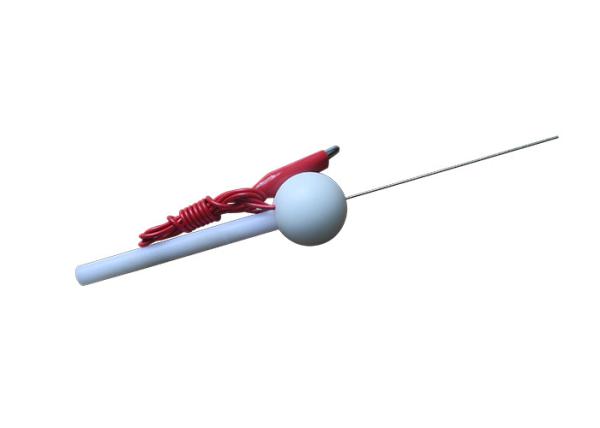

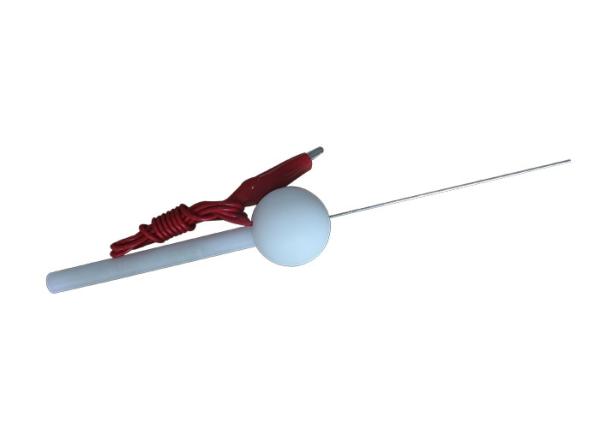

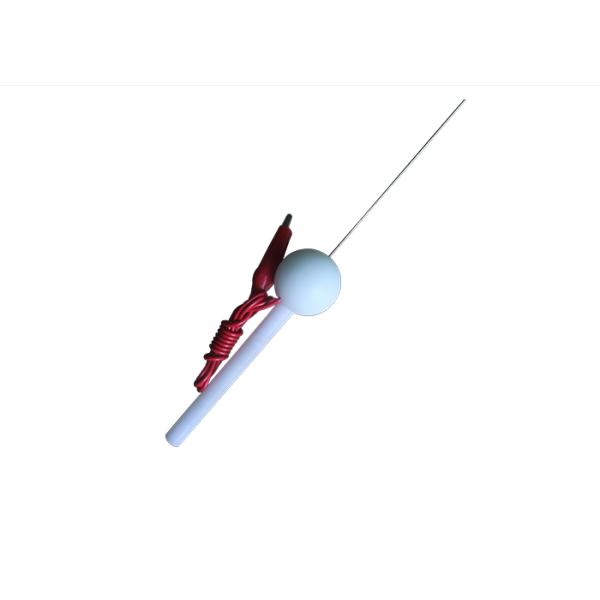

IEC60529 IP4X Ingress Protection Test Equipment Test Rod Probe D 1 mm diameter

Standard:IEC61032 figure 4 and IEC60529 for IP4 and IEC60065.

Standard description:

13.2 Test conditions for first characteristic numerals 1 , 2, 3, 4

The object probe is pushed against any openings of the enclosure with the force specified in table 7.

IEC61032 IPX4 Ingress Protection Test Equipment Rod Probe D 1mm

13.3 Acceptance conditions for first characteristic numerals 1 , 2, 3, 4
The protection is satisfactory if the full diameter of the probe specified in table 7 does not pass through any opening.
NOTE For first characteristic numerals 3 and 4 the probes specified in table 7 are intended to simulate foreign objects which may be spherical. Where an enclosure has an indirect or tortuous entry path and there is any doubt about ingress of a spherical object capable of motion, it may be necessary to examine drawings or to provide special access for the object probe to be applied with the specified force to the opening(s) where ingress has to be checked.

Application:This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

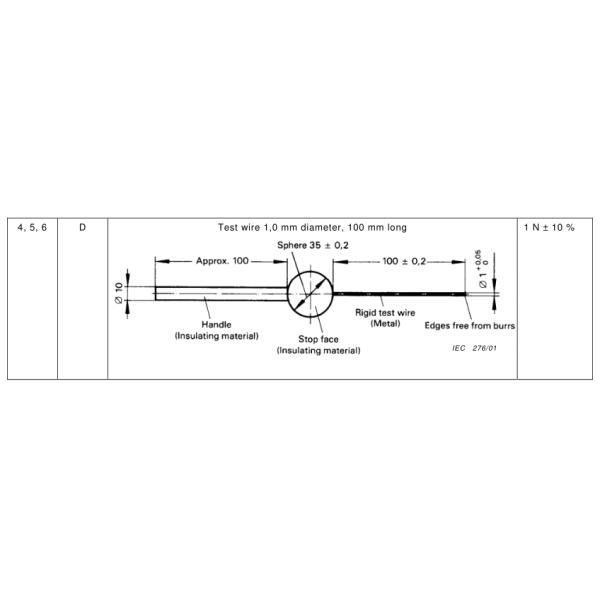

Parameters:

Model HT-I04 HT-I04T
Name Test rod probe D Test rod probe with force
Diameter of the metal wire Ф1+0.05 0 Ф1+0.05 0
Sphere diameter SФ35±0.2 SФ35±0.2
Handle diameter Ф10 Ф10
Probe length 100±0.2 100±0.2
Handle length 100 ----
Force ---- With force of 1N
Applied standard IEC61032.1 IEC60529
