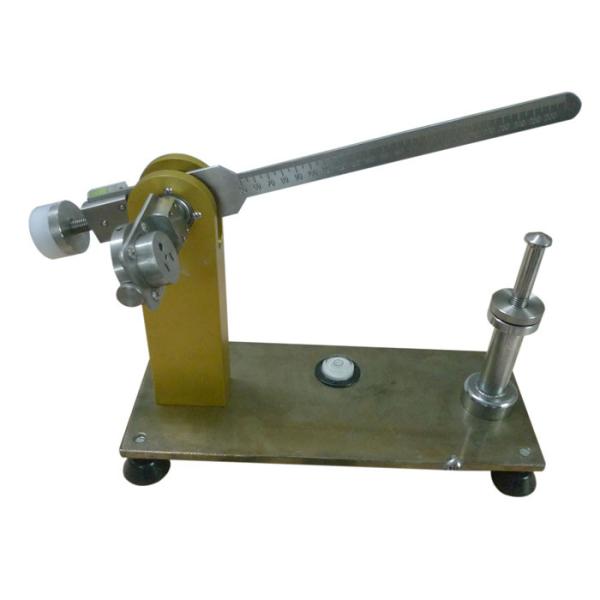

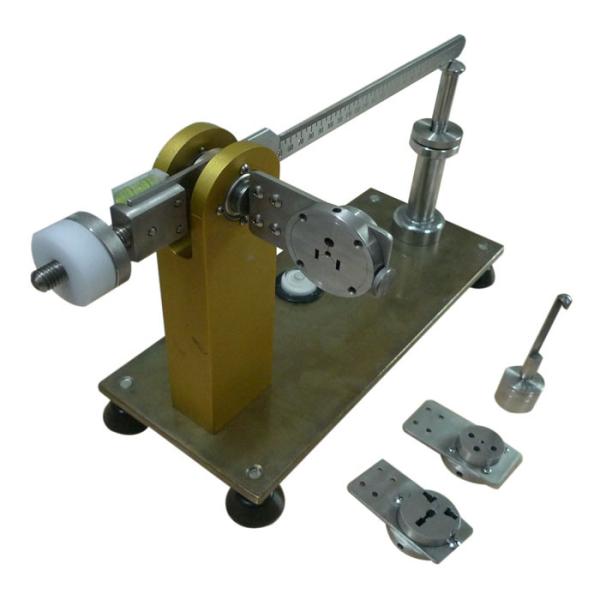

IEC60065 Figure 11Test Apparatus For Devices Forming A part Of The Mains Plug

Device forming a part of the mains plug

A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.

Compliance is checked by engaging the device, as during intended use, with the socket-outlet of a test apparatus as shown in figure 11. The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.

With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.

After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm. The torque shall not exceed 0.25 Nm.

Note: This test is compatible with the test described in the IEC 60884-1.

Technical parameters:

weight

2.5N*1, 1N*1

Plug

UL plug*1, European plug*1,all-purpose plug*1

Conforms to standard

IEC60884,VDE0620,IEC60598,IEC60065Fig11

Arm of force

0-200mm

The distance from the contact surface and the Axis of the surface

8mm
