Specifications
Brand Name :
HongCe
Model Number :
HT-21673
Certification :
CNAS(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
99 set/month
Delivery Time :
5 work days
Packaging Details :
Plywood
Price :
Negotiatable
Hammer hardness :
40I -50IRHD
Hammer diameter :
70mm
Impact height :
100mm
Standard :
IEC 60335-2-4 (par. 21.101) and IEC 60335-2-7 (par. 21.101.1)
Description

IEC 60335-2-4 100mm Drop Test Device

Products Introduction:

The drop test device is specially designed and manufactured according to IEC 60335-2-4 (par. 21.101) and IEC

60335-2-7 (par. 21.101.1).

It is used for detect the impact-resistance mechanical strength properties of the appliances covers by loading loads from the top.

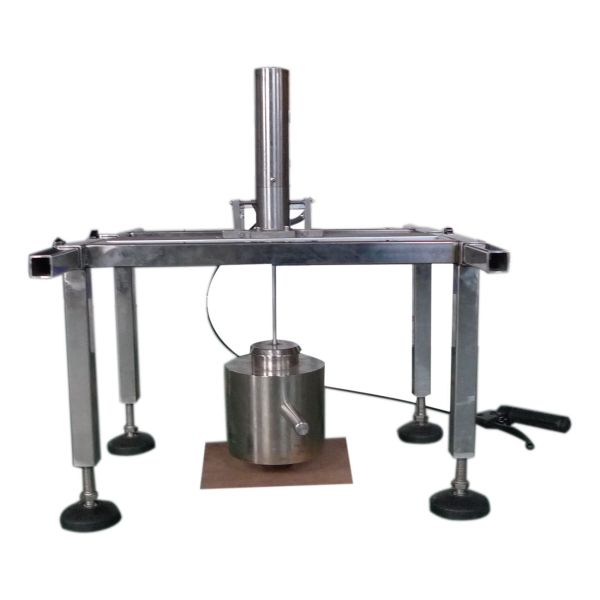

Structure Description:

A. The device has a self-locking hammer mechanism. The hammer is made of C40 galvanized steel (diameter 150mm, total mass 20KG), and it is with a diameter 70mm hardness IRHD 40-50 rubber hemisphere. The hammer can be released by the handle.

B. The device has stainless steel frame, 200mm-800mm width is adjustable, t is applicable for different specifications test samples.

C. The device is easy to operate, simple and practical.

Technical Parameters:

Parameters Name

Parameter Data

Hammer

Rubber hammer hemisphere, hardness 40I RHD-50I RHD; hammer handle is made of

stainless steel; weight: 20kg

Impact height

100mm, can be adjusted by adjustable feet

Locking mode

Self-locking by enhancing the hammer

Release mode

Manually release

Sample’s dimension

W * D = (200 ~ 800) * 480mm
