Specifications
Brand Name :
HongCe
Model Number :
HT-I04
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
20 sets per month
Delivery Time :
7 days
Packaging Details :
Aluminum box
Sphere diameter :
SФ35±0.2
Handle diameter :
Ф10
Probe length :
100±0.2
Handle length :
100
Description

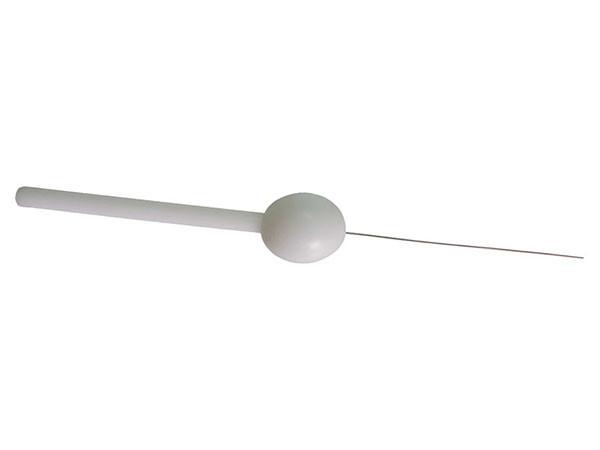

IEC 60065:2014 clause 9.1.4 Test Rod Probe D HT-I04

Standard:

Conforms to IEC 60065:2014 clause 9.1.4, IEC61032 figure 4 test probe D , IEC529 IPX4, IEC60065 and etc.

Application:

This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Test sample:

Easily accessible enclosure live parts or mechanical parts.

Feature:

It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

Parameters:

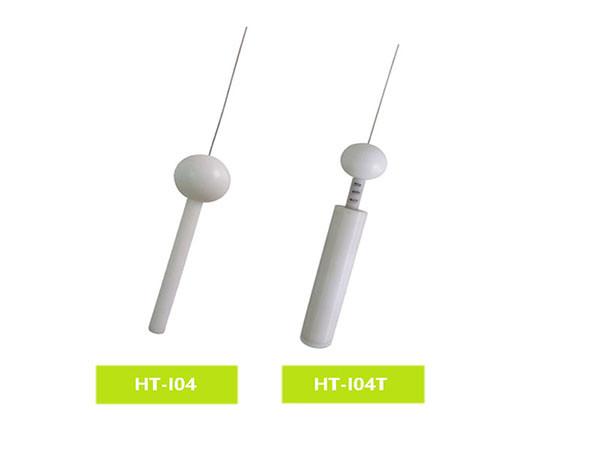

Model HT-I04 HT-I04T
Name Test rod probe D Test rod probe with force
Diameter of the metal wire Ф1+0.05 0 Ф1+0.05 0
Sphere diameter SФ35±0.2 SФ35±0.2
Handle diameter Ф10 Ф10
Probe length 100±0.2 100±0.2
Handle length 100 ----

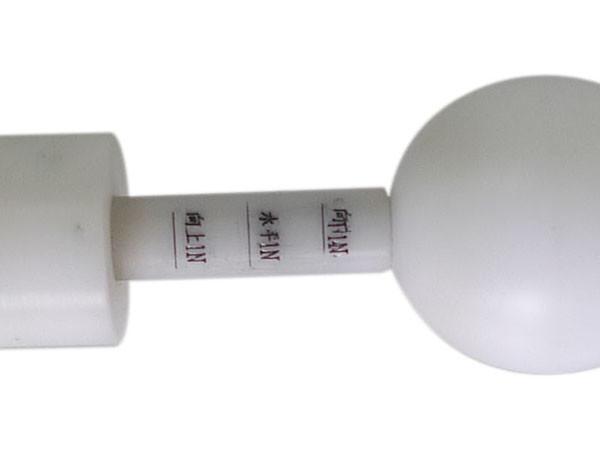

Force ---- With force of 1N
Applied standard IEC61032.1 IEC60529

Picture for referrence:

IEC 60065 Figure 4 Test Rod Probe D Anti - Electric Shock Testing Sphere Diameter SФ35±0.2
