IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
Specifications
Brand Name :
HongCe
Model Number :
IPX-3,IPX-4,IPX-5,IPX-6
Certification :
Third part Calibration Certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
35 days
Packaging Details :
Plywood
Price :
Negotiatable
IPX3/4 Spray nozzle :
IEC 60529 Figure 5 Brass head
IPX5 Spray aperture (mm) :
Ø6.3mm
IPX6 Spray aperture (mm) :
Ø612.5mm
IPX3/4 Spray Flow :
10 L/min±5%
IPX5 Spray Flow :
12.5L/min±5%
IPX6 Spray Flow :
100L/min±5%
IPX3/4 Flowmeter :
5-20L/min one piece
IPX5 Flowmeter :
5-20L/min one piece
Description

IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment

Product information:

The spray test system is designed and manufactured according to the standard IEC60529<<Degrees of protection provided by enclosures (IP Code)>>, used To Test Waterproof Performance of the electrical products which second characteristic is numeral 5/6.

This machine is suitable for enclosure protection rating evaluation of electrical appliances and electronic equipment, against the harmful effects due to water entering the housing of the device.

Technical parameters:

Model IPX56A

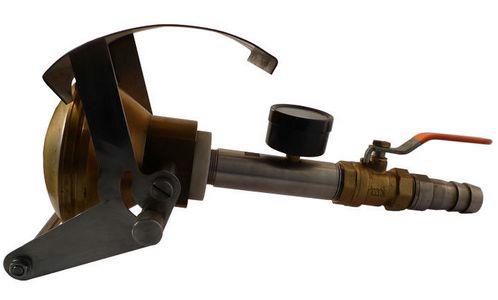

IPX3/4 Spray nozzle IEC 60529 Figure 5 Brass head

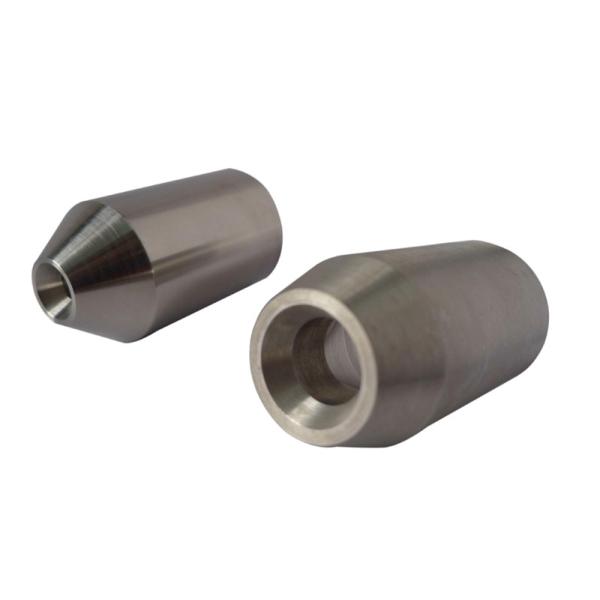

IPX5 Spray aperture (mm) Ø6.3mm
IPX6 Spray aperture (mm) Ø12.5mm
IPX3/4 Spray Flow 10 L/min±5%
IPX5 Spray Flow 12.5L/min±5%
IPX6 Spray Flow 100L/min±5%
IPX3/4 Flowmeter 5-20L/min one piece
IPX5 Flowmeter 5-20L/min one piece
IPX6 Flowmeter 10-110L/min one piece

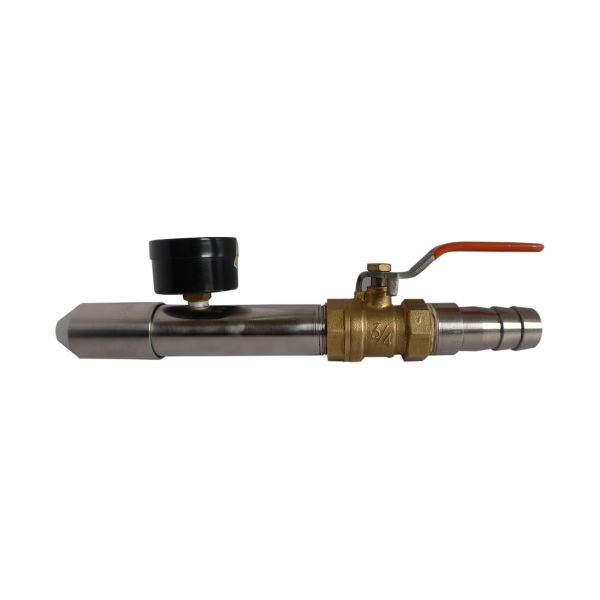

The distance of IPX56 nozzle mouth to test products 2.5m-3m
Water Pump A multi-stage stainless steel pumps
Voltmeter 0～1Mpa
Timer 1－9999Min
Sample turntable Ø600mm,
Sample turntable rotation speed 1~5r/min (adjustable),can rotate clockwise or counterclockwise
Sample turntable material SUS304# stainless steel
Reservoir (L) 500L
Reservoir material SUS304# stainless steel
IPX5/6 Input supply 208VAC 60HZ (Voltage fluctuations≦±10%)
Breaker No fuse breaker
Protective Leakage, No water , short-circuit
Security system Pressure overload warning of water pump
Frame Forming aluminum

Specifications for sample turntable:

  1. Turntable Material: SUS304 stainless steel, diameter ф600mm. Turntable height is adjustable, adjustable range: 600-900mm.
  2. Maximum load: 50KG.
  3. Turntable rotation speed: 1-5 r / min adjustable.

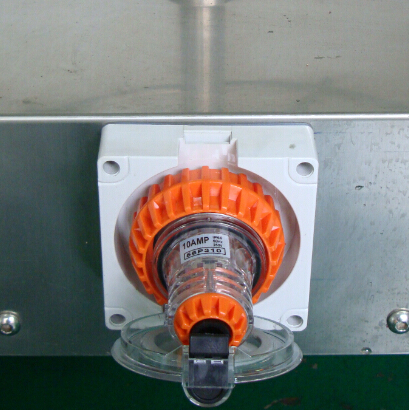

  4. Turntable electrical part is fully sealed to prevent water leakage. Can equip with a waterproof universal socket.
  5. Turntable adopts to domestic high-speed motors, adjustable speed within the standard range. Containing a reducer (reduction ratio 1: 300)
  6. Turntable can rotate clockwise or counterclockwise
  7. There are four activities with brake casters beneath the turntable, easy for moving and stationary

Picture view:

IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance

IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance

IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance

IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance

IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance

IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance
