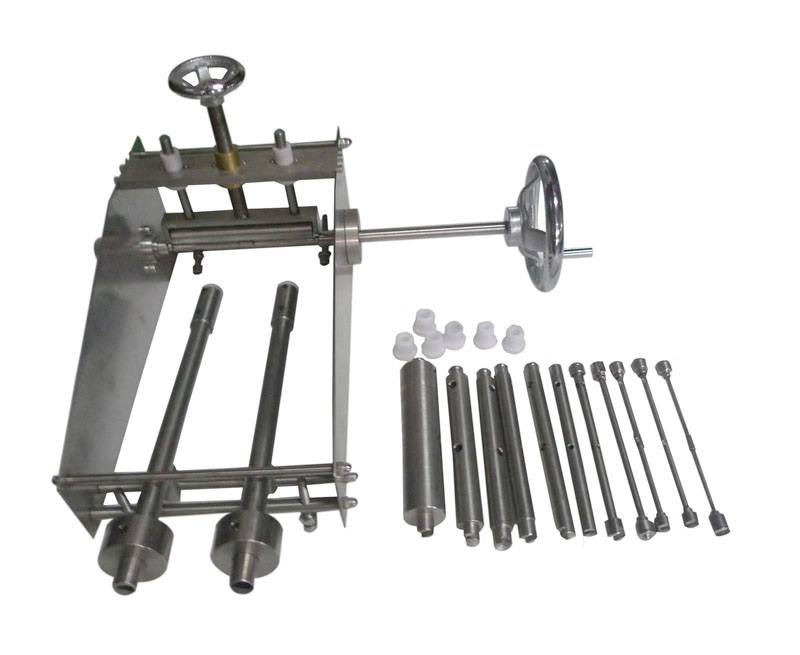

IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials
IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials
IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials
IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials
Specifications
Price :
Negotiatable
Test object :
insulating and sheathing materials of cable
Standard :
IEC60811-1-4
Test :
Cold bending test
Stations :
2
Diameter of samples :
Diameter 2.5mm ~12.5mm
The number of turns :
2~10 turns
Mandrel :
13 piece
Rotation speed :
5S/ turn
Brand Name :
HongCe
Model Number :
HDX1307
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
20 set per month
Delivery Time :
20 working days
Packaging Details :
plywood
Description

Cold Bending Test Machine HDX1307

Technical parameters:

Station:2

Diameter of samples:Φ2.5mm ~12.5mm

The number of turns:2 to 10 turns, and the number of turns shall be as specified in the following table:

Overall diameter (d) of the test piece (mm) Number of turns
D≤2.5 10
2.5﹤d≤4.5 6
4.5﹤d≤6.5 4
6.5﹤d≤8.5 3
8.5﹤d 2

Test condition: The diameter of the mandrel shall be between 4 and 5 times the diameter of the test piece. Standard equip with the mandrel :Ф4, Ф5, Ф6, Ф7, Ф8, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф24, Ф37.5mm

Rotation speed: 5S/ turn, manual control

Diameter of pipe: Ф3.5, Ф6, Ф10, Ф12, Ф16mm, each of two pieces

Description:

This device is intended in general for cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.

According to the standard IEC60811-1-4 clause 8.1 and 8.2, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature.

Test sample: Cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.

Feature: Made of stainless steel, 2 stations, equip with the extended handle which can be connected to the outside of the low temperature chamber.
