IPX8 Water Tightness Pressure Tester
IPX8 Water Tightness Pressure Tester
IPX8 Water Tightness Pressure Tester
IPX8 Water Tightness Pressure Tester
Specifications
Brand Name :
KINGPO
MOQ :
1
Certification :
calibration certificate
Place of Origin :
China
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
25 working days
Packaging Details :
safety wooden box
water tank :
Stainless steel
tank height :
1m
tank diameter :
0.8m
pressure range :
0 ~ 6bar
Pressure gauge accuracy :
0.25 degree
test time :
0-99min
Description
Product Details

Product Introduction

The IPX8 Water Tightness Pressure Tester is manufactured in accordance with the standard of Clause IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1. It is used to assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Technical Parameter

Pressure vessel Stainless steel tank, diameter 0.8 meter, height 1 meter
Pressure adjustment range 0 ~ 6bar (can be customized)
Pressure system Stainless steel pump + frequency converter
Pressure gauge accuracy 0.25 degree, range: 10bar
Testing time 0-99min
Maximum limit pressure 6 bar
Pressure protection Pressure switch protection
Connect to the water supply equipment by 3/4 high pressure steel wire hose connection

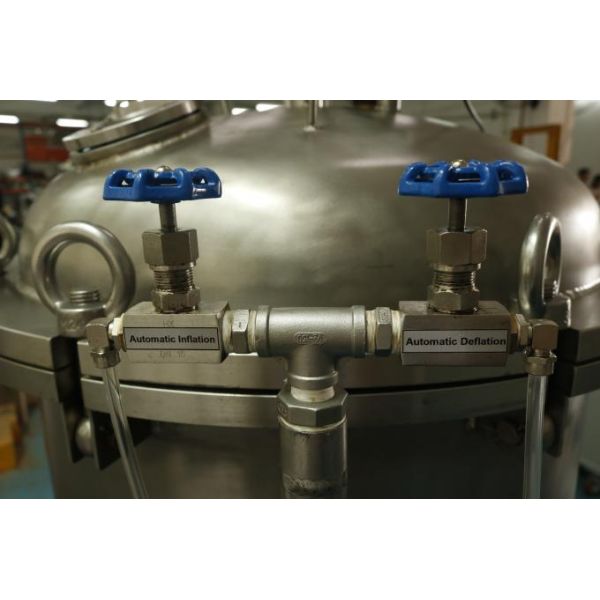

Picture for reference

IPX8 Water Tightness Pressure Tester
