Specifications
Brand Name :
KINGPO
MOQ :
1
Certification :
calibration certificate
Place of Origin :
China
Enclosure material :
A3 plate electrostatic spraying
Inner material :
SUS304B Stainless steel
test time :
0.1H-9999.9H
standard :
IEC60529-2001 fig 2
Description

IP5 IP6 Environmental Test Chamber For Sand Dust Resistance Capacity

IEC60529 IP5 IP6 Sand And Dust Environmental Test Chamber

Standard :

  • IEC60529-2001: Degrees of protection provided by enclosure (IP code), Fig 2

  • IEC60598-1-2008 and etc.

Principle and Structure

The test device is suitable for electrical products’ sand and dust test of first characteristic numeral 5 and 6 (IP5 and IP6). It is used to test sealing parts and enclosure’s sand and dust resistance capacity of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

This sand and dust test chamber is the same as the requirements of IEC60529-2001. It is with an addition of flow heating device, in order to work under low ambient temperature and heavy humidity conditions. Firstly, put the standard dry talc ( 2kg / m³ ) into the test chamber, then put the sample into the test chamber, after that, start the fan, to achieve a high density dust cloud in the test chamber, until reach to the set running time (generally 8h).

Chamber Features :

  • A non-laminar flow of dust-loaded vertically circulating air

  • With a vacuum pump

  • The exhaust volume and pressure can be adjusted.

  • A airflow temperature control device

Parameters :

Device Name

Dust and Sand Test Chamber

Main configuration

Cabinet

Enclosure material

A3 plate electrostatic spraying

Inner material

SUS304B Stainless steel

Lead hole

It is for test sample's power cord to be connected to the external power supply

Observation window

large observation window in the middle of the door

Electrical control system

Controller

PLC Control:

A. blowing dust time (stop, blowing) can be adjusted

B. Cycle: arbitrary adjustable

C. Preset test time: 0.1H-9999.9H arbitrary adjustable

D. Power: On-off- On

E. There are accumulating function and power-off protection function

Vacuum system

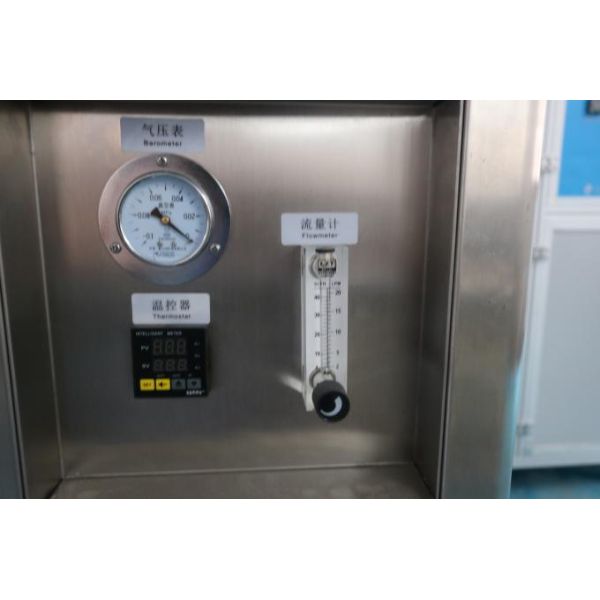

Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe

Security

Protection

Device

Power overload, short-circuit protection

Ground Protection

Voltage Protection

Motor phase loss protection

Alarm beep prompt

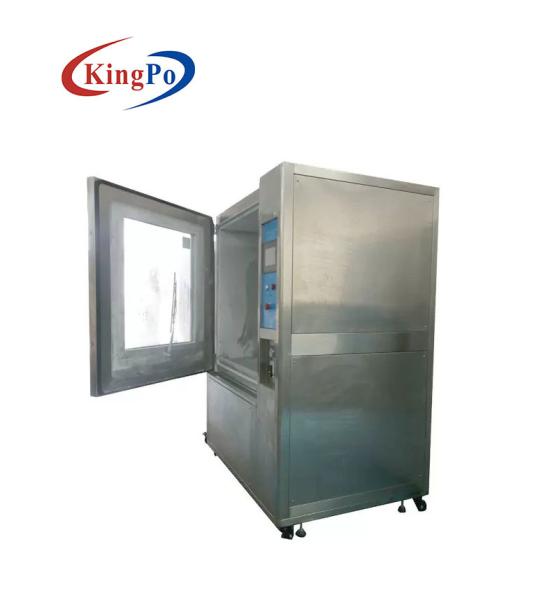

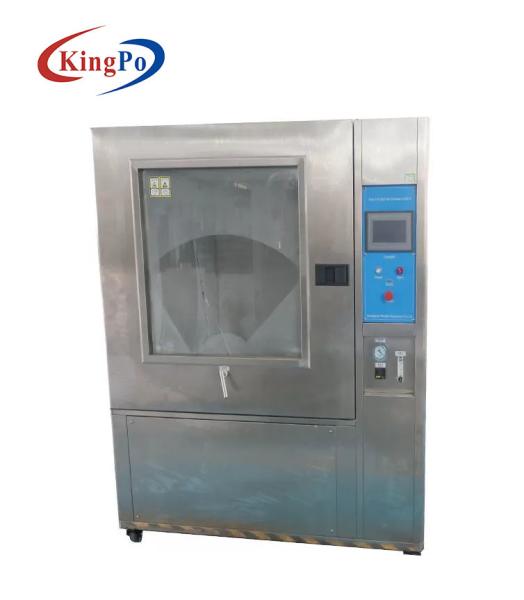

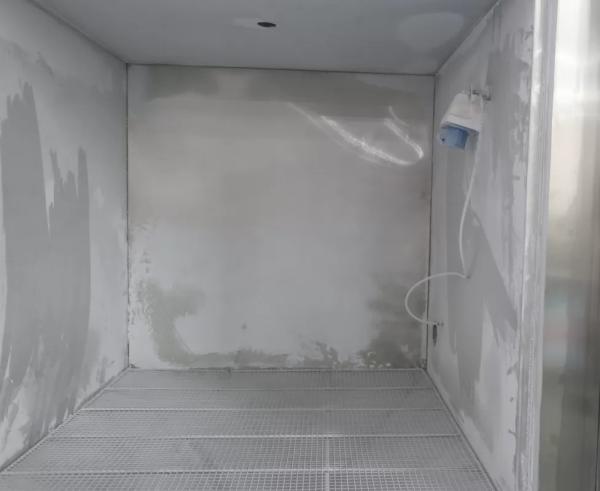

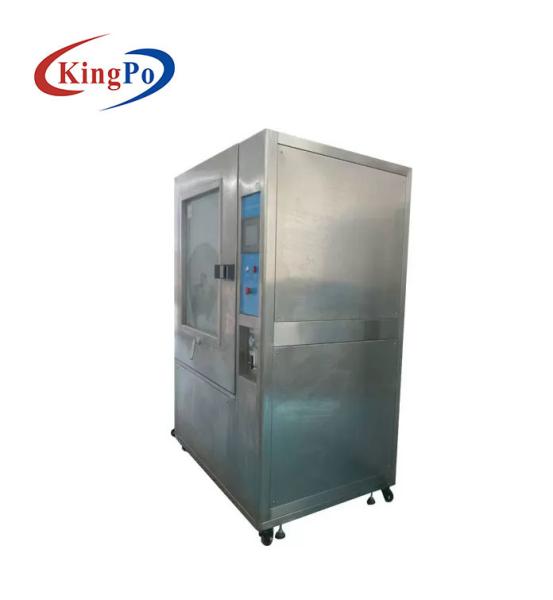

Picture For Reference:
IP5 IP6 Environmental Test Chamber For Sand Dust Resistance Capacity
