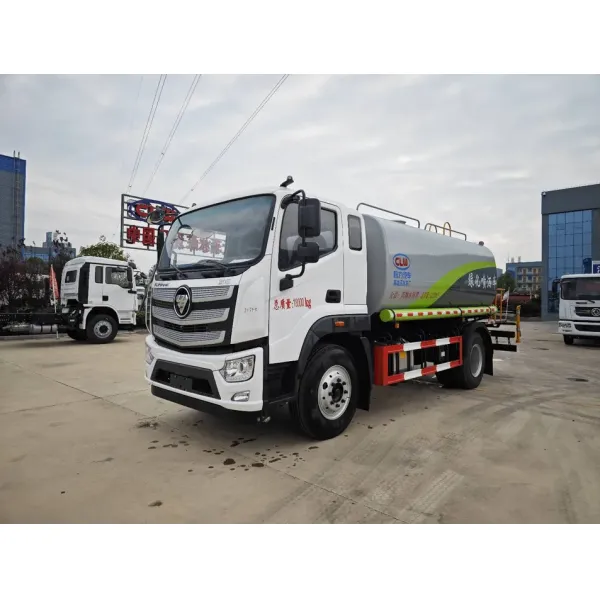

Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Specifications
Model NO. :
CLW5161TSDBBS
Volume :
10001 - 15000L
Certification :
ISO9000, CCC, TS16949
Emission Standard :
Europe VI
Sprinkling Area :
＞16m
Transmission Type :
Manual
Payload :
20T
Fuel :
Diesel
Drive Wheel :
4×2
Engine Capacity :
6 - 8L
Condition :
New
Wheelbase :
3950mm
Gross Mass :
16000
Tire Specification :
9.00r20 16pr
Engine :
Wp4.1nq190e61
Transport Package :
Whole Vehicle Shipment
Specification :
20CBM
Trademark :
Shacman
Origin :
China
HS Code :
8705909090
Production Capacity :
1000
MOQ :
1 Piece
Price :
US $25,000-35,000
Description
high-performance Sprinkler  truck
Sprinkler trucks, also known as water sprinklers, street sprinklers, or irrigation trucks, are specialized vehicles designed to serve a wide range of urban management, environmental protection, and public service needs. From keeping city roads clean and dust-free to nurturing urban greenery and responding to emergency situations, these versatile machines have become an indispensable part of modern urban infrastructure. Combining advanced technology, practical design, and eco-friendly features, modern sprinkler trucks have evolved far beyond their early mechanical predecessors, adapting to the increasingly complex demands of urban life and environmental sustainability.
A sprinkler truck is essentially a mobile water distribution system mounted on a truck chassis, consisting of key components such as a water tank, high-pressure pump, sprinkler nozzles, control system, and auxiliary equipment. Based on their specific functions and application scenarios, sprinkler trucks can be classified into several types. Road-cleaning sprinklers are equipped with high-pressure nozzles to wash away dirt, oil stains, and debris from road surfaces, ensuring traffic safety and hygiene. Green irrigation sprinklers feature adjustable spray patterns and ranges, designed to water lawns, trees, flower beds, and other urban green spaces efficiently. Dust-suppression sprinklers, often used in construction sites, mining areas, and industrial zones, spray fine water mist to reduce airborne dust particles, improving air quality. Multifunctional sprinklers integrate multiple functions, such as disinfection, snow melting, and emergency water supply, making them suitable for various scenarios including public health emergencies, winter road maintenance, and fire rescue support.
Specification
Applications
1.Water tank: Corrosion-resistant (stainless steel/reinforced plastic), capacity 5,000–20,000L, with anti-sloshing partitions.
2. High-pressure pump: PTO-driven, adjustable flow rate (10–80 m³/h), core for water pressurization.
3. Sprinkler nozzles: Multi-directional (front/side/rear/roof), interchangeable (fan/mist/direct-injection), adjustable angle/range.
4. Control system: Cab-mounted digital panel, supports one-click operation and real-time monitoring (water level/flow/pressure).
5. Auxiliary equipment: Water filters, pressure gauges, emergency water outlets, safety alerts (LED lights/audible alarms).
6. Smart upgrades (modern models): GPS route planning, environmental sensors (humidity/dust), remote control function.
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Key Configurations
1. Power and Chassis Configuration
The chassis brand and model are the foundation, needing to match operational scenarios. For example, heavy-duty chassis for municipal use and flexible light truck chassis for residential areas.The engine power must be sufficient to support the operation of the water pump and the vehicle's heavy-load driving, avoiding power shortage during work.
2. Core Water System Configuration
The water pump is the "heart" of the sprinkler. Self-priming centrifugal pumps are preferred, with focus on flow rate (unit: m³/h) and lift (unit: m) — flow rate determines sprinkling efficiency, and lift influences sprinkling distance.
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export

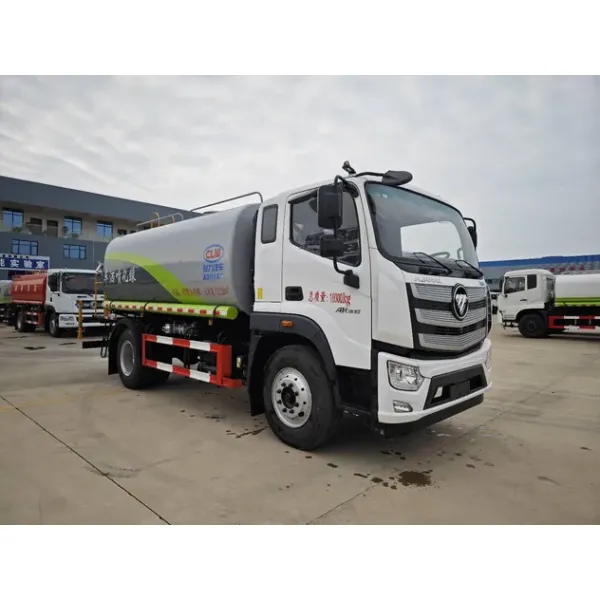

right elevation
left elevation

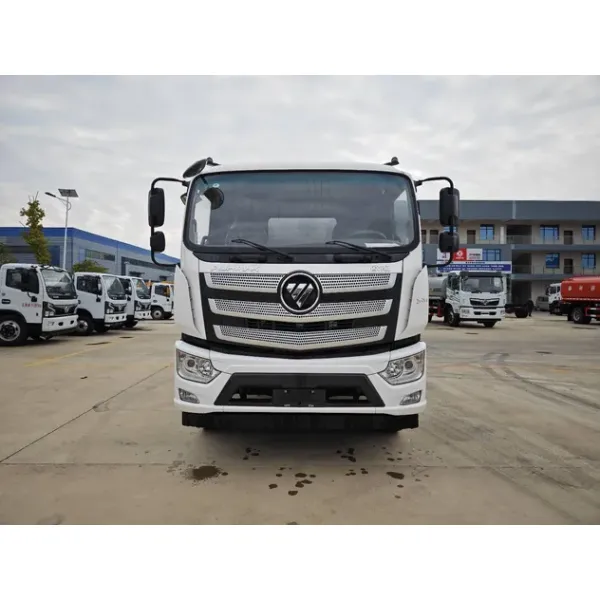

front elevation
Technical Specifications
(Custom configurations available upon request.)
Model
CLW5161TSDBBS
Product Name
Water tanker truck
Gross Mass (Kg)
16000
Curb Mass (Kg)
6660
Overall Dimensions (mm)
7740×2550×3220
Wheelbase (mm)
3950
Chassis Brand
Foton
Water tank capacity (m³)
12
Tire Specification
9.00R20 16PR
Number of Tires
6
Min. Ground Clearance(mm)
470
Max. Driving Speed (kw/h)
90
Engine Model
WP4.1NQ190E61
Power (Kw) (Horsepower)
140/190
Drawings & Dimensions
1.Tank Body: Usually made of steel plates, with cross - sectional shapes including elliptical, rectangular, or circular. For water tanks with a volume greater than 10 liters, a partition structure is set up to reduce the impact of the liquid in the tank during vehicle driving.
2.Tank Support Legs: There are two types: integral frame type and split frame type. The split frame type can be further divided into longitudinal beam split type and completely independent support leg type.
3.Manhole Cover: It must be provided with a ventilation hole. The number of manholes is generally 1 - 2, and the diameter should not be less than 450 mm according to the standard, which is mainly used for staff to enter and exit the water tank.
Transmission Device
4.Power Take - Off: Installed on the gearbox, it is divided into left - mounted and right - mounted forms. Its main function is to output engine power. It is operated pneumatically or manually. When the operating switch is pulled backward, the power take - off gear enters the meshing position to drive the water pump to work through the transmission shaft.
5.Water Pump: Generally divided into centrifugal water pumps and self - priming water pumps. The head and flow rate of the water pump are determined by the main functions of the sprinkler truck. The flow rate is generally 50 - 80 cubic meters per hour.
6.Reducer or Speed Increaser and Drive Shaft: They transmit power to the water pump to meet the speed and rotation direction requirements of the water pump.
7.Suction Pipe: Consists of a rubber hose and a hard pipe. The rubber hose has flexibility and pressure resistance, and the hard pipe provides structural support.
8.Sprinkler Pipe: Mainly composed of a hard pipe and a sprinkler head. The hard pipe is made of a finished product with durability and stability, which is used to transport water. Sprinkler heads are divided into fixed and movable types.
9.Five - Way Diverter Valve: Composed of a five - way pipe, elbow, water channel valve, and left and right control cylinders. By controlling the position of the cylinder piston, the flow direction of water is controlled.
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
After Sales Service
Standard Warranty: 12 months or 30,000 km (whichever comes first).
Extended Warranty: Optional warranty up to 36 months.
Global Support: 24/7 technical support and spare parts availability.
Training: On-site or remote operation/maintenance training.
Company Profile
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
CHENGLI SPECIAL AUTOMOBILE CO., LTD
Chengli Special Purpose Vehicle Co., Ltd., located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province, was established in September 2004 with registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, occupies 610 mu (approximately 16 acres), and employs 1,786 people. Its main business scope includes the research and development, manufacturing, sales, and service of complete vehicles, special-purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has obtained ISO9001 quality management, ISO 14001 environmental management, and ISO45001 occupational health and safety management system certifications. It also holds various management certifications, including five-star after-sales service, 3C compulsory certification, automotive energy conservation and environmental protection certification, automotive tax exemption certification, American Society of Mechanical Engineers (ASME) certification, and EU Agreement ADR. The company holds production qualifications for special-purpose vehicles, complete vehicles, new energy vehicles, truck-mounted cranes, mobile cranes, and fire trucks.
The company's "Chengliwei" branded products are popular both domestically and internationally, with exports to over 50 countries and regions, including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, and Myanmar.
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Foton 4X2 Efficitive-Cost Water Tanker Truck for Export
Why Choose Us?
Other Products
1. The product has a hard core and strong adaptability
2. High cost-effectiveness, more cost-effective procurement
3. Flexible customization and fast response speed
4. Complete after-sales service, worry free throughout the entire process
Compressed garbage truck
Sewage suction truck
Road sweeper
Tank truck
Refrigerated truck
Crane
FAQ
Q: What is the order lead time?
A: Standard models ship within 15-30 days; customized models ship within 30-45 days.
Q: Do you provide overseas after-sales service?
A: Yes, we have partner service centers in major regions.
Q: Can I request a custom order?
A: Of course! We also offer custom accessories.
Q: What export documents do you provide?
A: Complete export packaging (commercial invoice, packing list, bill of lading, certificate of origin, etc.).
Q: How do I place an order?
A: Contact us by email or phone for a quote, then confirm with a purchase order.
