Efficient Tiltable Material Dumping Truck for Construction Sites
Efficient Tiltable Material Dumping Truck for Construction Sites
Specifications
Model NO. :
CLW
Fuel :
Diesel
Certification :
ISO9001
Emission Standard :
Euro 5, Euro 5
Condition :
New, New
Transmission Type :
Manual
Power :
Diesel
Load Capacity :
1-10t
Drive Wheel :
4×2
Engine Capacity :
＞8L
Seats :
≤5
Horsepower :
150-250HP
Tire Certification :
ECE, Gcc, ISO, DOT
Tire Design :
Radial
Dumping Type :
Bidirection Dumping Style
After-Sales Service :
"One-Year Warranty for Product After-Sales Service
Transport Package :
Complete Vehicle
Specification :
10T Dump Truck
Trademark :
CLW
Origin :
Hubei Suizhou
Production Capacity :
00vehicles Per Year
MOQ :
1
Price :
US $26,800 / Piece
Place of Origin :
CHINA
Packaging Details :
Nuked
Delivery Time :
15 working days
Payment Terms :
T/T,LC,
Supply Ability :
150 sets/month
Description

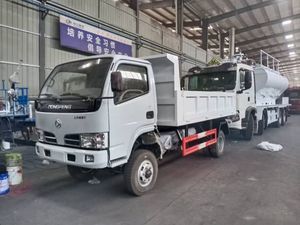

                                                Tiltable Short-Distance Material Transport Vehicle
Overall dimensions: 7900*2550*3250
Box dimensions: 3600*5400*2400*800
Superstructure configuration: 3mm sides, 4mm bottom, single-opening tailgate, front top 137 domestic hydraulic cylinder
Chassis configuration: Tianjin model cab;
Engine: Yuchai 200hp; Front axle 5 tons, rear axle 10 tons;
Frame: 280 electrophoretic paint double-layer;
Transmission: 8-speed transmission; Tires: 10.00 steel wire tires;
Wheelbase: 3950/4500/4100mm,
Other configurations: Aluminum alloy fuel tank and air tank, Camel battery, Ruile brake valve. ABS new regulations, factory air conditioning; Camel battery, Ruile brake valve, electric windows.
[Vehicle technical parameters]
Product trademark Cheng Li card Announcement batch 367
product name dumper product model CL3180ZX6AZT
gross mass (Kg) 18000 Tank volume (m3)
Rated load mass (Kg) 9205 Overall dimensions (mm) 6150×2350×2800
Preparation mass (Kg) 7850 Goods Chamber Size (mm) 3600×2200×500
Number of passengers (person) 2,3 Maximum saddle load mass (Kg)
axle weight (Kg) 6500/11500 Top vehicle speed (Km/h) 89
remarks 1. Side and rear protective materials are Q235, connection mode: side protection is bolted, rear protection is welded connection, rear protective section size is 120mm 60mm, the lower edge is 490mm above ground height; 2. ABS system manufacturer: Guangzhou Automotive Electronics Co., LTD., ABS model CM4XL-4S / 4M; 3. The vehicle is equipped with driving recorder with satellite positioning function; 4. Select the cab front panel style, front lamp and front lower bumper, and select the side and rear structure of the cargo box.5. Corresponding relationship of engine / fuel consumption declaration (L / 100km): YCS06270-60 / 28.15, YCS06245-60 / 28.15, YCS04200-68 / 28.01.; 6. Equipped with direct power supply ETC; 7. The unloading mode is adopted. Select the installation position of fuel tank, urea tank, battery, air storage cylinder with the chassis, and select the post-processing position and style.
[Chassis technical parameters]
Chassis model CL1181LDJ6 Chassis name truck chassis
brand name Cheng Li card manufacturing enterprise Cheng Li Automobile Group Co., LTD
number of axles 2 Number of tires 6
wheel base (mm) 3400,3600,3800,3950,4100,4500
tyre size 10.00R20 18PR,11.00R20 18PR
Number of steel plate spring sheets 8/10+8,9/10+8,9/11+8,6/6+5,8/9+5,8/9+7,8/10+7,3/4+3,9/12+10,7/9+6,11/11+10 front gauge (mm) 1840,1880,1900,1940,1960,1980
Fuel types diesel oil rear track (mm) 1750,1800,1860,1880
Emission basis standard The GB17691-2018 countries
engine type Engine production enterprise displacement (ml) power (Kw)
YCS04200-68
YCS06245-60
YCS06270-60		 Guangxi Yuchai Machinery Co., LTD
Guangxi Yuchai Machinery Co., LTD
Guangxi Yuchai Machinery Co., LTD		 4156
6234
6234		 147
180
199
