Specifications
Mould Weight :
3T
Mould Type :
Stage mold
Part Name :
Washing machine rear cover
Part Material :
SUS430
Punch Tonnage :
300T
Standard Parts Brand :
MISUMI/PUNCH
Brand Name :
IDO
Model Number :
washing machine rear cover
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Life :
1,000,000 shots
Mould Size :
1200*950*560mm
Description
SUS430 Washing Machine Rear Cover Sheet Metal Stage Stamping Die 300T Home Appliance
Product Description

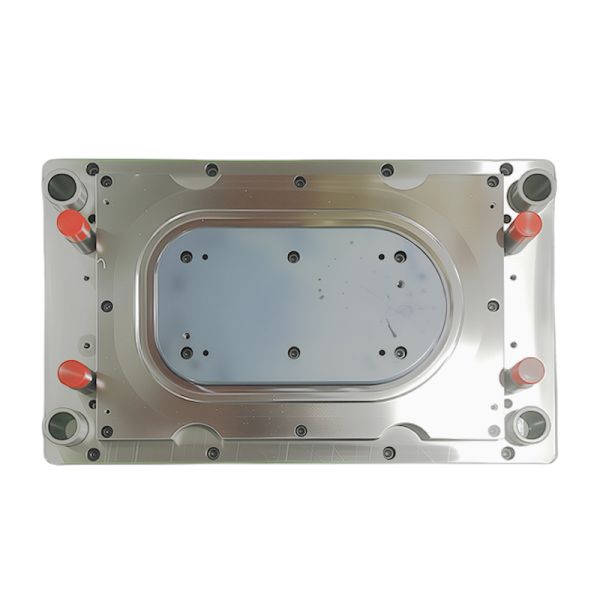

This custom stage stamping die is designed for forming SUS430 washing machine rear covers.

The die structure, forming operations and tooling specifications are developed according to the customer’s approved rear-cover drawing, material thickness, press parameters and production requirements.

Manufacturing and Project Deliverables

Manufacturing processes include CNC milling, surface grinding, wire EDM, sinker EDM, die assembly and tryout.

Standard-component brands, tool materials and coatings are defined in the approved bill of materials.

The quantity of trial parts and the required 2D and 3D assembly drawings are confirmed in the project delivery agreement.

Information Required for Quotation
  • Washing machine rear-cover drawings;
  • SUS430 sheet thickness;
  • Required production volume;
  • Press specifications;
  • Critical dimensions and tolerances;
  • Required sample quantity and documentation.

Final die specifications, service life and acceptance criteria will be confirmed during the technical review.

Main Specifications
Item Specification
Die Type Stage stamping die
Application Washing machine rear cover
Workpiece Material SUS430 stainless steel
Press Capacity 300 metric tons
Die Dimensions 1200 * 950 * 560 mm
Approximate Die Weight 3,000 kg
Standard Components According to the approved bill of materials
Design Life 1,000,000 strokes under agreed operating and maintenance conditions
Minimum Order Quantity 1 set
Lead Time Approximately 6–8 weeks
Packaging Rust-preventive oil, vacuum wrapping and export-grade wooden case
