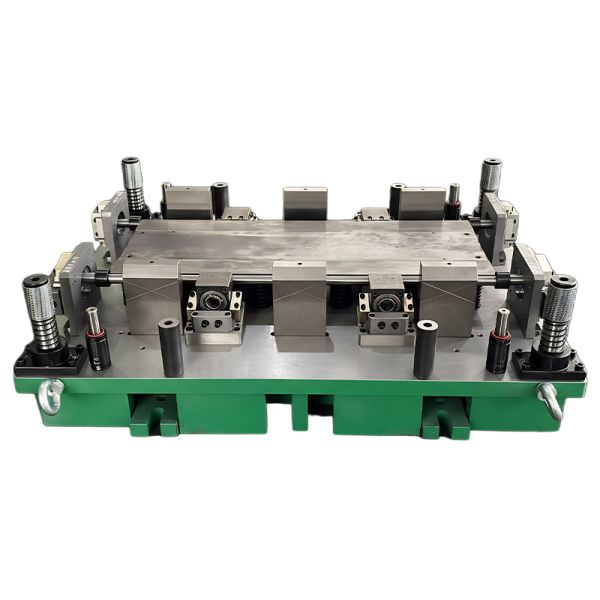

SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
Specifications
Brand Name :
IDO
Model Number :
Refrigerator door panel
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Name :
Refrigerator door panel
Part Material :
SGCC
Mould Type :
Stage mold
Mould Size :
1500*1100*550mm
Mould Weight :
2T
Punch Tonnage :
200T
Mould Life :
1,000,000 shots
Standard Parts Brand :
MISUMI
Description

Steel Stamping Tool SGCC Sheet Metal Stage Tool For Refrigerator Door Panel With Compatibility

Description:

Engineered for the precision manufacturing of refrigerator door panels, our Steel Stamping Stage Tool is designed for use with SGCC sheet metal. This tooling system offers superior compatibility, allowing for seamless integration into diverse production environments. It provides a reliable and efficient solution that ensures consistent quality and dimensional accuracy for every stamped part.

Quick Detail:

  • Cycle: 6~14 seconds (specific value determined by product characteristics)
  • Punch edge sharpening: Required after 200,000~300,000 shots
  • Lifting Method: The type of hardware for safely handling and installing the die.
  • Safety Features: Integrated sensors to prevent damage from part or slug jams.

Metal Stamping Tooling Released Commercial Components Brands:

Item
Option 1
Option 2
Option 3
1
 Standard piercing punches (with or without ejectors) MISUMI DAYTON FIBRO
2
 Standard piercing matrix
MISUMI
 DAYTON FIBRO
3
 Guide elements columns, bushes, die sets (precision plates)
MISUMI
 FIBRO DANLY
4
 Sliding wear plates (bronze plus graphite)
MISUMI
 FIBRO DAYTON
5
 Cam mechanisms
MISUMI
 FIBRO OMCR
6
 Coil steel springs
MISUMI
 FIBRO SPECIAL SPRINGS
7
 Nitrogen gas springs
MISUMI
 KALLER SPECIAL SPRINGS
8
 Screws,fastener, pins, stripper bolts,
MISUMI
 FIBRO DAYTON
9
 Spring guide pins, pilots, ejectors ,stock lifters, pad retainer, pilot shedders
MISUMI
 FIBRO DAYTON
10
 Rotary bending mechanisms
MISUMI
 DAYTON
11
 Lifting elements / rotary eyebolts
MISUMI
 FIBRO DAYTON
12
 Pneumatic valves and electrovalves
MISUMI
 FESTO SCHMALZ
13
 Scraps pneumatic evacuator/shakers
MISUMI
 FIBRO
14
 Electrical connectors HARTING HARTING ILME
15
 Tool Steel ASSAB ASSAB GROEDITZ
16
 PVD Coating OERLIKON OERLIKON
17
 Tool Bronze AMPCO AMPCO
