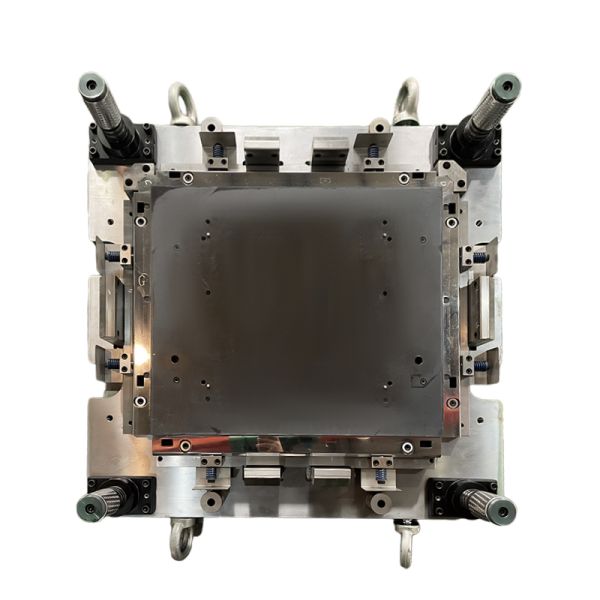

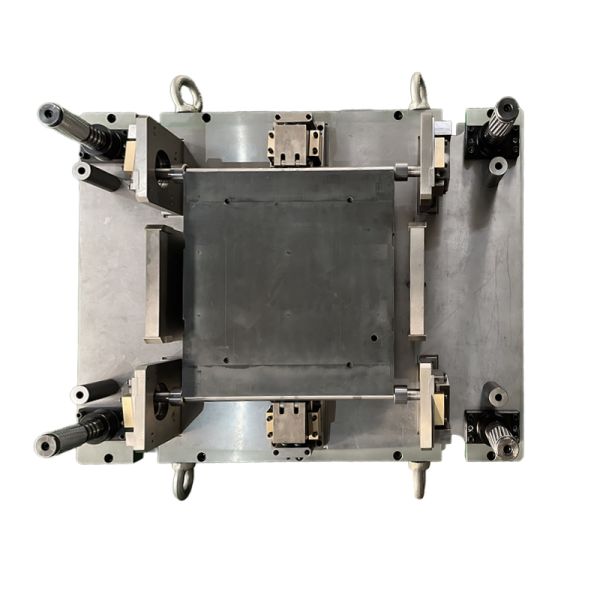

DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
Specifications
Part Material :
DC51D
Design Software :
Auto CAD, UG, Solidworks
Trade terms :
FOB (Shanghai)
Part Name :
Dishwasher outer door
Mould Weight :
2T
Mould Type :
Stage mold
Mould Size :
1000*1000*550mm
Punch Tonnage :
200T
Brand Name :
IDO
Model Number :
dishwasher outer door
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Description
DC51D+Z Sheet Metal Stage Stamping Die for Dishwasher Outer Door 2T Mould Weight
Description:

Our Dishwasher Outer Door Stage Die – 2T Mould Weight Dishwasher Stamping Die offers precise, durable, and efficient stamping for dishwasher outer door components. Designed for high-volume production, it ensures consistent quality, reliable performance, and long service life, helping manufacturers boost efficiency and maintain superior product standards.

Export Capability:
  • Our molds have earned recognition and approval from our valued customers. We provide prototype production and complimentary visual designs for customer evaluation.
  • With excellent after-sales support, we have built a strong reputation both domestically and internationally, serving renowned brands such as Haier, Hisense, B/S/H, Midea, Condor, IFB and more.
  • Our products are exported worldwide, reaching over 30 countries across Egypt, Bengal, Mexico, Thailand, Russia, and beyond.
Specifications:
Mould/Tool Type Stage tool/mould/die
Production Application White Household Appliances (washing machine, refrigerator, dryer, dishwasher…)
Metal Sheet Material Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance ±0.003mm
Hardness Upon request
Surface Treatment TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format DWG, STP, STEP, X_T, IGES, PDF
Design Software Auto CAD, UG, Solidworks
Trade terms FOB (Shanghai)
Mould Lead time Generally 6~8 weeks (as per actual situation)
