Specifications
Brand Name :
IDO
Model Number :
microwave oven top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
T/T, Trade Assurance, L/C
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Name :
Microwave oven top
Part Material :
DC51D+Z(T0.45)
Mould Type :
Stage mold
Mould Size :
550*700*275.45mm
Mould Weight :
0.6T
Punch Tonnage :
200T
Quality management system :
ISO 9001
Description

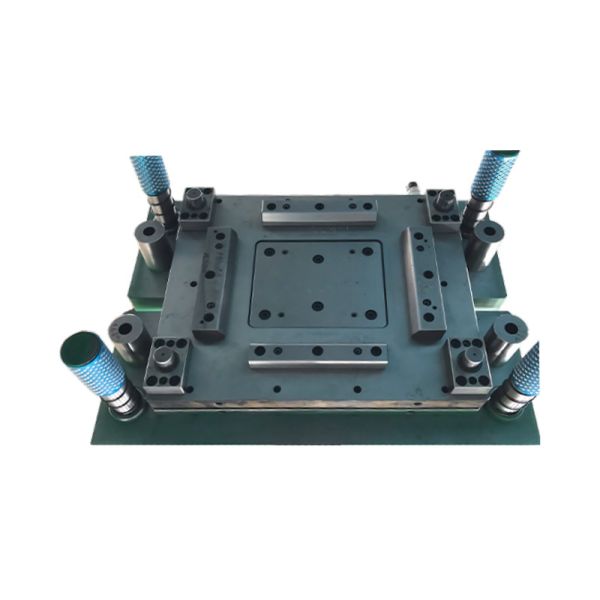

Microwave Stamping Die Stage Die For Microwave Oven Top – Mould Size 550×700×275.45mm

Description:

Our Microwave Stamping Die Stage Die for Microwave Oven Top – Mould Size 550×700×275.45mm delivers precise, durable, and efficient stamping for microwave oven top components. Built for reliable high-volume production, it ensures consistent quality, accurate dimensions, and long service life.

Our Advanced Pressing Equipment:

We feature four high-performance stamping presses: a 250-ton and a 300-ton mechanical press, a 500-ton hydraulic press, and a 1000-ton servo press. The 1000-ton servo press excels in precision forming and high-strength stamping, allowing us to produce complex components with outstanding accuracy and efficiency.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
