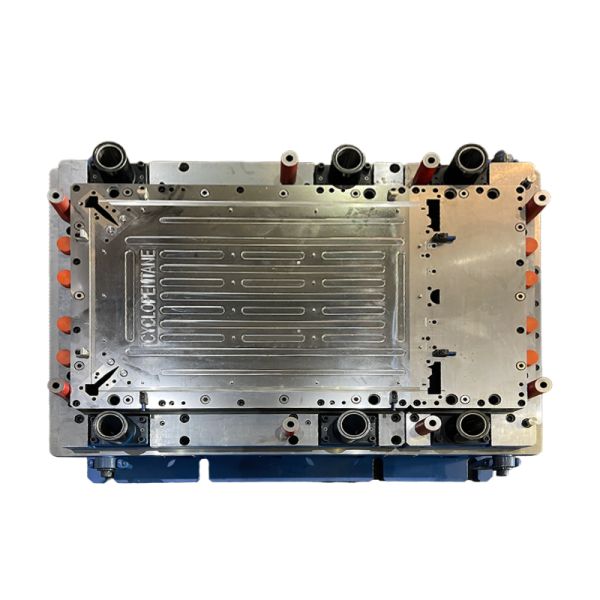

DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
DC52D Copper Stamping Kit Refrigerator Stamping Die Back Panel
Specifications
Brand Name :
IDO
Model Number :
refrigerator back panel
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
T/T, Trade Assurance, L/C
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Name :
Refrigerator back panel
Part Material :
DC52D
Mould Type :
Stage mold
Mould Size :
1400*1100*600mm
Mould Weight :
3T
Punch Tonnage :
250T
Mould Life :
2 million shots
Description

Stamping Die DC52D Stage Die For Refrigerator Back Panel With Computer Manufacturing Technology

Description:

As a leading Chinese manufacturer, we design and produce high-quality stamping dies for the refrigeration industry. This stage die is specifically engineered for creating refrigerator back panels from DC52D steel. Our advanced computer manufacturing technology ensures a perfect fit, exceptional precision, and a high-performance tool built for long-term production. We are committed to delivering reliable and efficient stamping solutions for your manufacturing needs.

Quick Detail:

  • Tooling Certification: Our manufacturing process is certified under ISO 9001

  • Technical Drawings: We provide a complete set of technical documents, including 3D models in SolidWorks and detailed 2D drawings.

  • Quality Reports: Each die comes with a detailed CMM (Coordinate-Measuring Machine) report to verify part accuracy.

  • Service Life Guarantee: We offer a guarantee for a specific number of shots, providing peace of mind about the die's longevity.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
