chassis mount transformer Bel Fuse 241-6-10L with UL CSA certifications and split bobbin construction
chassis mount transformer Bel Fuse 241-6-10L with UL CSA certifications and split bobbin construction
Specifications
Secondary Winding :
1
Isolation Voltage(Vrms) :
2.5kV
Primary Winding(s) :
1
Secondary Side Voltage :
10V
Output Current :
3A
Primary Side Voltage :
115V
Description :
10V 3A 115V Screw Terminals Power Transformers RoHS
Mfr. Part # :
241-6-10L
Model Number :
241-6-10L
Package :
Screw Terminals
Description

Product Overview

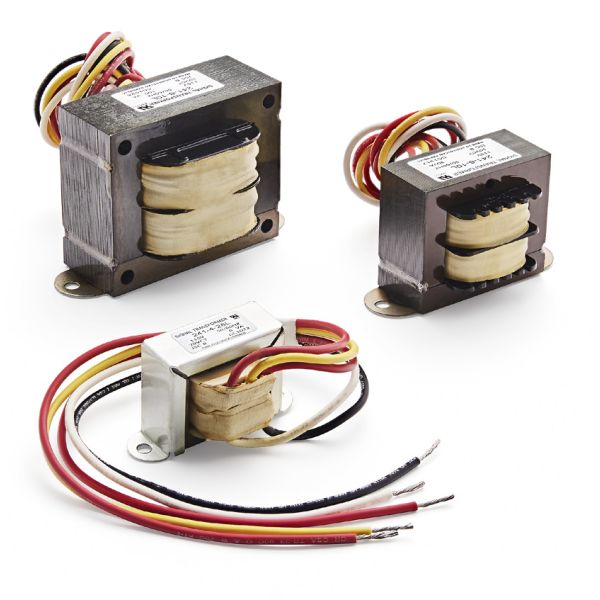

Signal's 241-L Series Two-4-One Power Transformers are chassis-mount transformers featuring a split bobbin construction for superior isolation and low capacitive coupling. These transformers are designed for various applications requiring reliable power conversion. They are UL recognized and CSA certified, ensuring compliance with industry standards. Lead wires are UL1015, CSA TEW rated for 600V and suitable for temperatures from -40C to +105C, passing the UL VW-1 flame test. All primary and secondary lead wires are 18 AWG UL 1015 and are 12 inches in length. Custom versions are available upon request.

Product Attributes

  • Brand: Signal (belfuse.com/signal)
  • Series: 241-L Series
  • Construction: Split Bobbin
  • Insulation Class: Class B (130 C)
  • Agency Certifications: UL recognized to UL 506 / UL 5085, CSA 22.2, #66.1
  • Lead Wire Style: UL1015, CSA TEW
  • Lead Wire Rating: 600 V, -40 to +105 C
  • Flame Test: Passes UL VW-1
  • Lead Wire Gauge: 18 AWG
  • Lead Wire Length: 12 inches
  • Compliance: RoHS Compliant

Technical Specifications

Product Description Power (VA) Secondary RMS Rating Current (A) Dimensions (inches) Weight (lbs)
241-3-10L (Single Primary) 2.4 10.0 VCT 0.25 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-10L (Dual Primary) 6 10.0 VCT 0.6 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-10L (Dual Primary) 12 10.0 VCT 1.2 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-10L (Dual Primary) 30 10.0 VCT 3.0 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-10L (Dual Primary) 56 10.0 VCT 5.0 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-10L (Dual Primary) 100 10.0 VCT 10.0 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-12L (Single Primary) 2.4 12.6 VCT 0.2 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-12L (Dual Primary) 6 12.6 VCT 0.5 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-12L (Dual Primary) 12 12.6 VCT 1.0 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-12L (Dual Primary) 30 12.6 VCT 2.5 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-12L (Dual Primary) 56 12.6 VCT 4.0 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-12L (Dual Primary) 100 12.6 VCT 8.0 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-16L (Single Primary) 2.4 16.0 VCT 0.15 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-16L (Dual Primary) 6 16.0 VCT 0.4 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-16L (Dual Primary) 12 16.0 VCT 0.8 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-16L (Dual Primary) 30 16.0 VCT 2.0 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-16L (Dual Primary) 56 16.0 VCT 3.5 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-16L (Dual Primary) 100 16.0 VCT 6.25 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-20L (Single Primary) 2.4 20.0 VCT 0.12 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-20L (Dual Primary) 6 20.0 VCT 0.3 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-20L (Dual Primary) 12 20.0 VCT 0.6 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-20L (Dual Primary) 30 20.0 VCT 1.5 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-20L (Dual Primary) 56 20.0 VCT 2.8 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-20L (Dual Primary) 100 20.0 VCT 5.0 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-24L (Single Primary) 2.4 24.0 VCT 0.1 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-24L (Dual Primary) 6 24.0 VCT 0.25 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-24L (Dual Primary) 12 24.0 VCT 0.5 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-24L (Dual Primary) 30 24.0 VCT 1.25 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-24L (Dual Primary) 56 24.0 VCT 2.4 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-24L (Dual Primary) 100 24.0 VCT 4.0 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-28L (Single Primary) 2.4 28 VCT 0.085 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-28L (Dual Primary) 6 28 VCT 0.20 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-28L (Dual Primary) 12 28 VCT 0.42 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-28L (Dual Primary) 30 28 VCT 1.1 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-28L (Dual Primary) 56 28 VCT 2.0 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-28L (Dual Primary) 100 28 VCT 3.6 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-36L (Single Primary) 2.4 36 VCT 0.065 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-36L (Dual Primary) 6 36 VCT 0.17 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-36L (Dual Primary) 12 36 VCT 0.35 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-36L (Dual Primary) 30 36 VCT 0.85 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-36L (Dual Primary) 56 36 VCT 1.5 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-36L (Dual Primary) 100 36 VCT 2.8 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-48L (Single Primary) 2.4 48 VCT 0.05 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-48L (Dual Primary) 6 48 VCT 0.125 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-48L (Dual Primary) 12 48 VCT 0.25 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-48L (Dual Primary) 30 48 VCT 0.63 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-48L (Dual Primary) 56 48 VCT 1.2 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-48L (Dual Primary) 100 48 VCT 2.0 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-56L (Single Primary) 2.4 56 VCT 0.045 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-56L (Dual Primary) 6 56 VCT 0.11 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-56L (Dual Primary) 12 56 VCT 0.22 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-56L (Dual Primary) 30 56 VCT 0.54 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-56L (Dual Primary) 56 56 VCT 1.00 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-56L (Dual Primary) 100 56 VCT 1.8 L: 4.03, W: 2.30, H: 2.58 2.75
241-3-120L (Single Primary) 2.4 120 VCT 0.02 L: 2.07, W: 1.17, H: 1.23 0.25
DP-241-4-120L (Dual Primary) 6 120 VCT 0.05 L: 2.37, W: 1.31, H: 1.43 0.44
DP-241-5-120L (Dual Primary) 12 120 VCT 0.10 L: 2.81, W: 1.43, H: 1.69 0.7
DP-241-6-120L (Dual Primary) 30 120 VCT 0.25 L: 3.25, W: 1.74, H: 1.96 1.1
DP-241-7-120L (Dual Primary) 56 120 VCT 0.50 L: 3.68, W: 1.94, H: 2.28 1.7
DP-241-8-120L (Dual Primary) 100 120 VCT 0.85 L: 4.03, W: 2.30, H: 2.58 2.75

General Specifications:

  • Power: 2.4 VA to 100 VA
  • Dielectric Strength: 2500 Vrms Hipot
  • Primaries: Single or dual primaries (115 V or 115/230 V - 50/60 Hz)
  • Secondary: Single center tapped secondary
  • Insulation: Class B (130 C)

Mechanical Specifications:

Size VA Dimensions Inches (mm) Weight lbs (kg)
3 (2.4) L: 2.07 (52.6), W: 1.17 (29.6), H: 1.23 (31.2) 0.25 (0.11)
4 (6) L: 2.37 (60.3), W: 1.31 (33.3), H: 1.43 (36.2) 0.44 (0.20)
5 (12) L: 2.81 (71.4), W: 1.43 (36.3), H: 1.69 (42.8) 0.7 (0.32)
6 (30) L: 3.25 (82.6), W: 1.74 (44.3), H: 1.96 (49.8) 1.1 (0.50)
7 (56) L: 3.68 (93.5), W: 1.94 (49.2), H: 2.28 (57.8) 1.7 (0.77)
8 (100) L: 4.03 (102.4), W: 2.30 (58.5), H: 2.58 (65.5) 2.75 (1.25)

2411272144_Bel-Fuse-241-6-10L_C17685171.pdf
