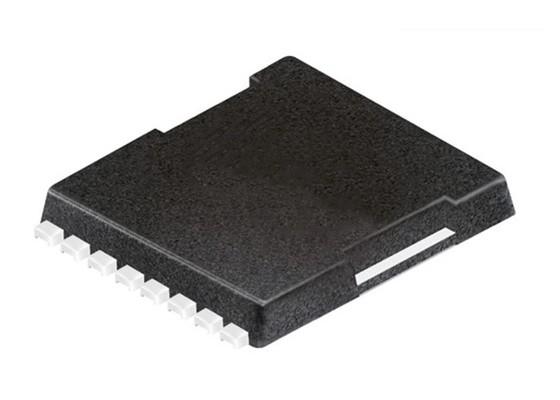

Power MOSFET Original Integrated Circuit IPT020N10N5ATMA1
Power MOSFET Original Integrated Circuit IPT020N10N5ATMA1
Specifications
Brand Name :
Original Factory
Model Number :
IPT020N10N5ATMA1
Certification :
Lead free / RoHS Compliant
Place of Origin :
China
MOQ :
8
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
80000 Piece/Pieces per Month
Delivery Time :
2-5 work days
Packaging Details :
PQFN 3.3 X 3.3
Type :
integrated circuit
Series: :
OptiMOS™5
RAM: :
48-bit
Temperature: :
-55°C ~ 175°C (TJ)
Voltage - Supply: :
2.375V ~ 3.465V
Products name :
Integrated Circuit Chips
Description

Power MOSFET Original Integrated Circuit IPT020N10N5ATMA1

Product Description

  • Less paralleling required
  • Increased power density
  • Reduced switching and conduction losses

Product Specifications

Part Number: IPT020N10N5ATMA1
FET Type: N-Channel
Operating Temperature: -55°C ~ 175°C (TJ)
Power Dissipation (Max): 273W (Tc)
Series: OptiMOS™5
Technology: MOSFET (Metal Oxide)
Input Capacitance (Ciss) (Max) @ Vds 11000 pF @ 50 V
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 31A (Ta), 260A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 2mOhm @ 150A, 10V
Vgs(th) (Max) @ Id 3.8V @ 202µA
Gate Charge (Qg) (Max) @ Vgs 152 nC @ 10 V
Vgs (Max) ±20V

FAQ


Q1: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q2: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q3: How about your delivery time?
A:Generally, goods would be shipped in 1-7 work days after payment received, finally depends on order quantities.
Q4: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your specific order!
Q5: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q6:What is your products quality?Do you test all your goods before delivery?
A:Yes,We have 100% test before delivery,We can ensure the product quality of our company. All products have 30-90 days of quality assurance.

Any other more questions, please feel free to contact us. We are always at your service !

1.14V ~ 1.26V
