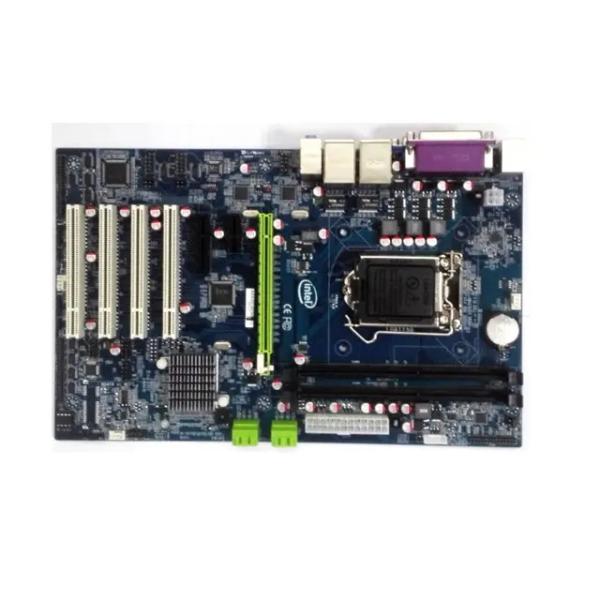

Intel LGA 1150 I3 I5 I7 ATX Motherboard Intel H81 For Industrial Control ATX-EI8124
Intel LGA 1150 I3 I5 I7 ATX Motherboard Intel H81 For Industrial Control ATX-EI8124
Specifications
Brand Name :
Original Factory
Model Number :
ATX-EI8124
Certification :
Lead free / RoHS Compliant
Place of Origin :
China
MOQ :
8
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
80000 Piece/Pieces per Month
Delivery Time :
3-7 work days
Packaging Details :
bulk
Type :
integrated circuit
Embedded Block RAM： :
28620 Kbit
RAM: :
48-bit
Temperature: :
-55°C ~ 175°C (TJ)
Voltage - Supply: :
2.375V ~ 3.465V
Products name :
Integrated Circuit Chips
Description

SR650 MB

Product Description

CPU LGA1150 Core i7,Core i5,Core i3,series CPU and support Hyper Threading Technology
FSB FSB 1333/1066/MHz
Chipset Intel H81 single chip
Memory 2x 1.5V DDR3 DIMM,up to 16GB(depend on CPU,Support dual channel mode and DDR3 1333/1600 MHz
Graphics Integrated
Sound Onborad Realtek ALC655 8channel and high fidelity audio decode chip
LAN 2*Onboard INTEL 82583V self-adaption 1000LAN chip 100/1000M,support diskless
Storage standard 4 x SATA 3 Gb/s disc interface(2*SATA3.0) 1*MiniPCI-E socket
Expansion socket

1 x PCI Express X16 socket ,1 x PCI Express X4 socket 1 x PCI Express X1 socket

4 x PCI socket
USB Support 6*USB 2.0 port ( 4 need expansion), 2*USB3.0
Internal output /input interface

1 x 24-pin ATX main power interface

1 x 4-pin ATX 12V power interface

4 x SATAII 3 Gb/s disc interface

1 x CD_IN CD audio plug pin

1 x CPU fan header CPU

1 x system fan header

1 x PWR fan header

1 x front panel header

1 x front sound card header

4x USB 2.0 headers

1 x Clear CMOS Header

10 x COM plug pin (8*COM support RS232,2*COM support RS485/422/232)
Rear panel interface

1 x PS/2 , 1 x HDMI port,1 x VGA port,

2 x USB 2.0/1.1 port, 2*USB3.0 , 2 x RJ-45 LAN port

6 x JACK interface (6channel audio interface).
Input/output controller Onboard I/O control chip (IT8718F-S)
Hardware monitor functions

1.CPU TEMT monitor

2.system TEMT monitor

3.FAN speed monitor

4.Each voltage—optional
BIOS

AMI BIOS,1*8Mbit flash

support to boot after power on, auto-reboot,Watchdog, functions
Structure and size ATX 300*190mm

FAQ


Q1: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q2: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q3: How about your delivery time?
A:Generally, goods would be shipped in 1-7 work days after payment received, finally depends on order quantities.
Q4: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your specific order!
Q5: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q6:What is your products quality?Do you test all your goods before delivery?
A:Yes,We have 100% test before delivery,We can ensure the product quality of our company. All products have 30-90 days of quality assurance.

Any other more questions, please feel free to contact us. We are always at your service !

1.14V ~ 1.26V
