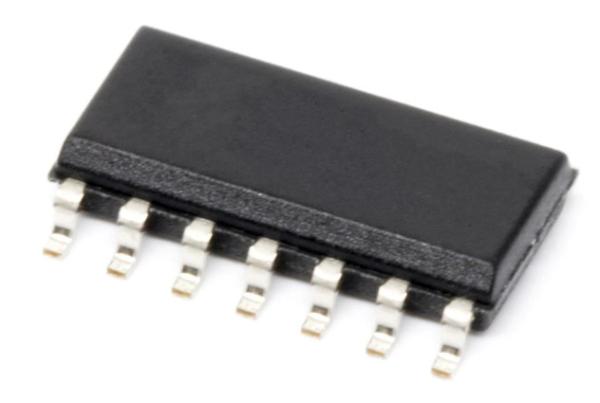

74ACT00SCX

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	onsemi
Product Category:	Logic Gates
RoHS:	Details
Product:	Single-Function Gate
Logic Function:	NAND
Logic Family:	ACT
Number of Gates:	4 Gate
Number of Input Lines:	8 Input
Number of Output Lines:	4 Output
High Level Output Current:	- 24 mA
Low Level Output Current:	24 mA
Propagation Delay Time:	5.5 ns
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	4.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	SMD/SMT
Package / Case:	SOIC-Narrow-14
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	onsemi / Fairchild
Function:	Quad 2-Input NAND Gate
Height:	1.5 mm
Length:	8.75 mm
Logic Type:	2-Input NAND
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
Series:	74ACT00
	2500
Subcategory:	Logic ICs
Width:	4 mm
Part # Aliases:	74ACT00SCX_NL
Unit Weight:	0.005291 oz
