Specifications
Description :

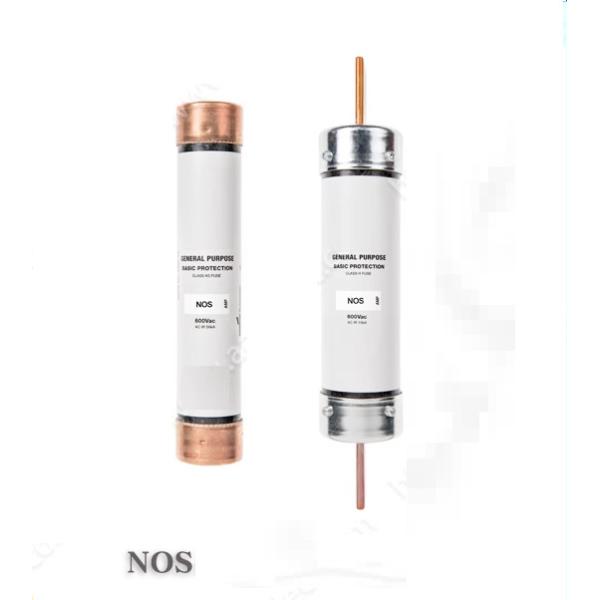

NOS Class K5 and H fuses 600V NOS-1 To NOS-250 Non-indicating Power Fuse
Stock :
In Stock
MOQ :
3pcs
Price :
Negotiated
Payment Terms :
T/T, Western Union
Shipping Method :
Express
Production name :
Basic protection 600V NON Class K5 and H general purpose, non-current-limiting, one-time fuses
Part numbers :
NOS-1 NOS-9 NOS-40 NOS-100 NOS-300 NOS-2 NOS-10 NOS-45 NOS-110 NOS-350 NOS-3 NOS-12 NOS-50 NOS-125 NOS-400 NOS-4 NOS-15 NOS-60 NOS-150
Category :
Electronic components-Fuses
Interrupt rating :
10 kAIC at 600 Vac
Rated voltage AC IEC :
600v
Ampere :
1A-250Amps
Type :
Non current limiting
Application :
Basic protection
Dimension :
7.9in(Length/Depth)*1.34 in(Width)*1.34 in(Height)
Product Weight :
0.55lb
Description

Basic protection 600V NON Class K5 and H general purpose, non-current-limiting, one-time fuses

Catalog Numbers (amps)
NOS-1
NOS-9
NOS-40
NOS-100
NOS-300
NOS-2
NOS-10
NOS-45
NOS-110
NOS-350
NOS-3
NOS-12
NOS-50
NOS-125
NOS-400
NOS-4
NOS-15
NOS-60
NOS-150
NOS-450
NOS-5
NOS-20
NOS-70
NOS-175
NOS-500
NOS-6
NOS-25
NOS-75
NOS-200
NOS-600
NOS-7
NOS-30
NOS-80
NOS-225
NOS-8
NOS-35
NOS-90
NOS-250

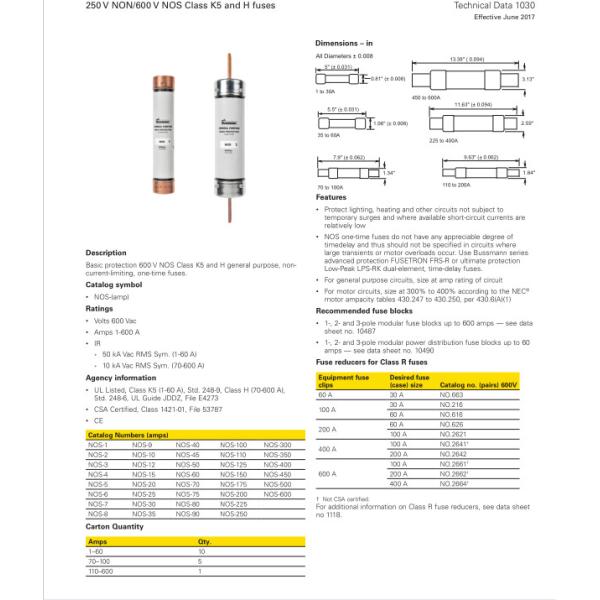

Description:

Basic protection 600 V NOS Class K5 and H general purpose, non-current-limiting, one-time fuses.

Catalog symbol
• NOS-(amp)


Ratings
• Volts 600 Vac
• Amps 1-600 A
• IR
• 50 kA Vac RMS Sym. (1-60 A)
• 10 kA Vac RMS Sym. (70-600 A)

Features
• Protect lighting, heating and other circuits not subject to
temporary surges and where available short-circuit currents are
relatively low
• NOS one-time fuses do not have any appreciable degree of
timedelay and thus should not be specified in circuits where
large transients or motor overloads occur. Use Bussmann series
advanced protection FUSETRON FRS-R or ultimate protection
Low-Peak LPS-RK dual-element, time-delay fuses.
• For general purpose circuits, size at amp rating of circuit
• For motor circuits, size at 300% to 400% according to the NEC®
motor ampacity tables 430.247 to 430.250, per 430.6(A)(1)

NOS-1 NOS-9 NOS-40 NOS-100 NOS-300 NOS-2 NOS-10 NOS-45 NOS-110 NOS-350 NOS-3 NOS-12 NOS-50 NOS-125 NOS-400 NOS-4 NOS-15 NOS-60 NOS-150

NOS-1 NOS-9 NOS-40 NOS-100 NOS-300 NOS-2 NOS-10 NOS-45 NOS-110 NOS-350 NOS-3 NOS-12 NOS-50 NOS-125 NOS-400 NOS-4 NOS-15 NOS-60 NOS-150

NOS-1 NOS-9 NOS-40 NOS-100 NOS-300 NOS-2 NOS-10 NOS-45 NOS-110 NOS-350 NOS-3 NOS-12 NOS-50 NOS-125 NOS-400 NOS-4 NOS-15 NOS-60 NOS-150

NOS-1 NOS-9 NOS-40 NOS-100 NOS-300 NOS-2 NOS-10 NOS-45 NOS-110 NOS-350 NOS-3 NOS-12 NOS-50 NOS-125 NOS-400 NOS-4 NOS-15 NOS-60 NOS-150

For more similar Fuse:

Part numbers:

NON-1/8
NON-3
NON-12 NON-65 NON-200
NON-1/2
NON-3-2/10 NON-15 NON-70 NON-225
NON-3/4
NON-4
NON-20 NON-75 NON-250
NON-8/10
NON-5
NON-25 NON-80 NON-300
NON-1
NON-6
NON-30 NON-90 NON-350
NON-1-1/4
NON-6-1/4 NON-35 NON-100 NON-400
NON-1-1/2
NON-7
NON-40 NON-110 NON-450
NON-1-6/10 NON-8
NON-45 NON-125 NON-500
NON-2
NON-9
NON-50 NON-150 NON-600
NON-2-1/2
NON-10
NON-60 NON-175
