Specifications
Description :
JCZ3 series vacuum contactor voltage contactor switch contactors mechanical hold
Stock :
In Stock
MOQ :
1
Price :
US$500
Payment Terms :
T/T,Paypal,Credit card. E-checking
Shipping Method :
Express
Product Name :
Vacuum Contactors
Series :
JCZ3-3.6 Series vacuum contactor
Rated working voltage (Ue) :
3.6KV
Rated working current (Ie) :
400A 630A
Rated frequency (fr) :
50HZ
Lightening impulse withstand voltage :
40KV
Rated voltage (Us) :
AC or DC. 110/220V
Rated power (Ps)  electric holding :
≤600/50 (absorbing/holding)
Net weight :
20KG
Description

JCZ3-3.6/D400-4 3.6KV AC Vacuum Contactor 400A AC120V 50HZ Vacuum Contactor

voltage contactor switch contactors mechanical hold vacuum contactor

Specifications :

Name Unit Value
Main circuit Rated working voltage (Ue) kV 3.6
Rated working current (Ie) A 400,630
Rated frequency (fr) Hz 50
Rated making capacity A 10Ie (AC-4)
Rated breaking capacity A 8Ie (AC-4)
Rated short time withstand current A 10Ie
Rated peak withstand current A 25Ie
Rated short circuit duration s 4
Power frequency withstand voltage Between phases, phase to earth kV 25
Vacuum breaks kV 25
Lightening impulse withstand voltage kV 40
Control circuit Rated voltage (Us) V AC or DC. 110/220
Rated power (Ps) electric holding VA ≤600/50 (absorbing/holding)
Auxiliary circuit Form 　 3a+3b
Rated value 　 AC 380V/5A
DC 380V/1A
Control circuit, auxiliary circuit to earth power frequency withstand voltage kV 2
Rated operating frequency Long-term time/h 300
Short-term time/h 600
Mechanical endurance 10000 times 30
Electrical endurance 10000 times 10
Mechanical characteristics Closing time ms ≤200
Original opening time ms ≤160
3-phase synchronism ms ≤3
Closing tripping ms ≤10
Net weight kg 19
Remark: rated control voltage can be made according to customer’s requirements.

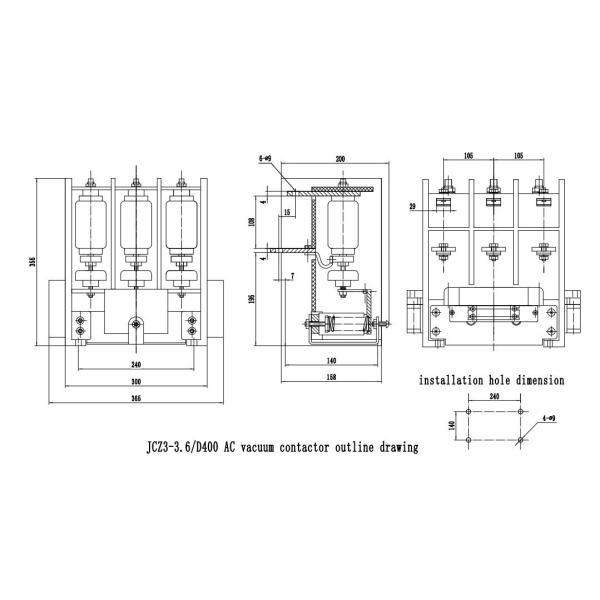

JCZ3-3.6/D400 AC Vacuum Contactor outline drawing :

JCZ3-3.6/D400-4 voltage contactor switch contactors mechanical hold vacuum contactorJCZ3-3.6/D400-4 voltage contactor switch contactors mechanical hold vacuum contactor

JCZ3-3.6/D630 AC Vacuum Contactor outline drawing :

JCZ3-3.6/D400-4 voltage contactor switch contactors mechanical hold vacuum contactor
