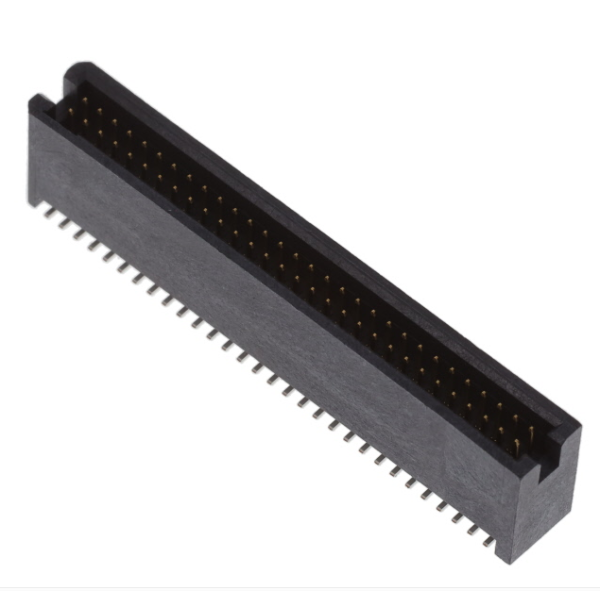

TFM-130-22-S-D 1.27MM SMD 60POS ‌CONNECTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm
TFM-130-22-S-D 1.27MM SMD 60POS ‌CONNECTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm
TFM-130-22-S-D 1.27MM SMD 60POS ‌CONNECTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm
TFM-130-22-S-D 1.27MM SMD 60POS ‌CONNECTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm
Specifications
Description :
Connector Header 1.27MM SMD 60POS ‌CONNCTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm
Stock :
In Stock
MOQ :
10pieces
Price :
Negotiated
Payment Terms :
T/T, Western Union,
Shipping Method :
Express
Product Name :
TFM-130-22-S-D Connectors 60pins
Family :
Board to Board or Cable
Category :
Electronic components Interconnects
Subcategory :
Rectangular Connectors Headers, Male Pins
Features :
CONN HEADER SMD 60POS 1.27MM
Mounting type :
Connector Header
Base Product Number :
TFM-130
Description

TFM-130-22-S-D 1.27MM SMD 60POS ‌CONNECTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm

Connector Header Surface Mount 60 position 0.050" (1.27mm)

Category
Connectors, Interconnects
　
Rectangular Connectors
　
Headers, Male Pins
Mfr
Samtec Inc.
Series
Tiger Eye™ TFM
Packaging
Tube
Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.050" (1.27mm)
Number of Positions
60
Number of Rows
2
Row Spacing - Mating
0.050" (1.27mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Mounting Type
Surface Mount
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Mating
0.139" (3.53mm)
Contact Length - Post
-
Overall Contact Length
-
Insulation Height
0.360" (9.14mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Current Rating (Amps)
2.9A per Contact
Voltage Rating
275VAC
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Applications
-
Base Product Number
TFM-130

TFM-130-22-S-D 1.27MM SMD 60POS ‌CONNECTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm

TFM-130-22-S-D 1.27MM SMD 60POS ‌CONNECTORS HEADER Connector Header Surface Mount 60 position 0.050 1.27mm

Most Popular Headers and Edge Type Connectors:

TFM-130-22-S-D-A
TFM-130-22-S-D-LC-K
TFM-130-22-S-D-K
TFM-130-22-S-D-A-K-TR
TFM-130-22-S-D-LC-TR
TFM-130-22-S-D-P
TFM-130-22-S-D-LC
TFM-130-22-S-D-A-K
TFM-130-22-S-D-A-P
TFM-130-22-S-D-P-TR
TFM-130-22-S-D-A-TR
TFM-130-22-S-D-TR
TFM-130-22-S-D-LC.MY
TFM-130-22-S-D-A-P-TR
TFM-130-22-S-D
TFM-130-22-S-D-A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
