9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses
9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses
Specifications
Description :
9F60 Series 0.625kV to 15.5 kV PT Fuses Primary protection for PT OR CPT
Stock :
In Stock
MOQ :
3pcs
Price :
US$55.00/PC
Payment Terms :
T/T, Western Union
Shipping Method :
Express
Production name :
Mersen Ferraz Shawmut Protection Fuses 0.625kV to 15.5 kV PT Fuses Primary protection
Category :
Electronic components-PT Fuses
Features :
Current limiting protection for transformers Ferrule mounting for ease of installation in standard clips
Frequency (Hz) :
50/60 Hz
Amperage Range :
1/2 to 10 A
Application :
Primary protection for potential transformers (PT) or control power transformers (CPT)
Based part number :
9F60
E RATING Fuse :
0.625kV to 15.5 kV
Harmonized System :
853510
Description

Mersen Ferraz Shawmut Fuse 9F60 Series 0.625kV to 15.5 kV PT Fuses Primary protection for potential transformers (PT) or control power transformers (CPT)

Applications:

Primary protection for potential transformers (PT) or control power transformers (CPT)

Description:

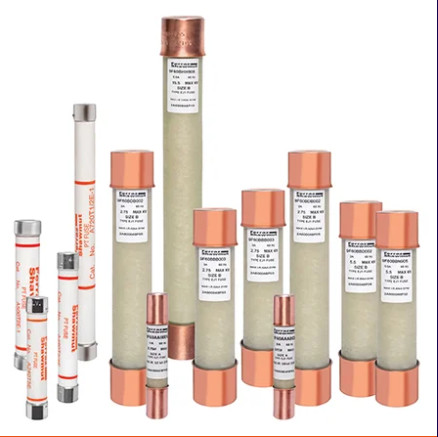

PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 10A

Features/Benefits:

Ferrule mounting for standard clips and interchangeability with other brands of fuses
Current-limiting for superior equipment protection
Non-venting for silent operation
Metal embossed catalog number and manufacturing date for lasting identification
Blown-fuse indicator to give positive identification of open fuse fuse is available on the 9F60 series

Highlights:

Parts number Ampere rating Indication System Product Weight
9F60AAA003 3A No 0.1134kg
9F60AAA005 5A No 0.1134kg
9F60AAA007 7A No 0.1134kg
9F60AAA010 10A No 0.1134kg
9F60AAB001 1A No 0.127kg
9F60AAB002 2A No 0.127kg
9F60BBB001 1A Yes 0.6804kg
9F60BBB002 2A Yes 0.6804kg
9F60BBB003 3A Yes 0.6804kg
9F60BBD001 1A Yes 0.6804kg

Technical Specifications:

Frequency (Hz) 50/60 Hz
Amperage Range 1/2 to 10 A
Reach Compliant Yes
Max Operating Temp. 80 °C
Max Storage Temp. 80 °C
Min Storage Temp. -25 °C
Harmonized System 853510

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

More Simlar PT FUSES:

E RATING CATALDG NUMBER
2400V 4800V 5000V 7200V
1/2E A240T1/2E A4B0T1/2E A500T1/2E-1 A720T12E-1
1E A240T1E A4B0T1E A500T1E-1 A720T1E-1
2E A240T2E A4BOT2E A500T2E-1 A720T2E-1
3E 　 A480T3E A500T3E-1 A720T3E-1
4E 　 A4B0T4E A500T 4E-1 　
5E A240TSE A4BOTSE A500T5E-1 　

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060

More Simlar Form 101 Semiconductor Protection fuses

A150X10-4 A150X45-4 A150X125-4 A150X450-4
A150X15-4 A150X50-4 A150X150-4 A150X500-4
A150X20-4 A150X60-4 A150X175-4 A150X600-4
A150X25-4 A150X70-4 A150X200-4 A150X800-4
A150X30-4 A150X80-4 A150X250-4 A150X1000-4
A150X35-4 A150X90-4 A150X300-4 A150X400
A150X40-4 A150X100-4 A150X400-4 A150X800-4
A150X1-1 A150X15-1 A150X20-1 A150X30-1 A150X1000-4 A150X125-3C
