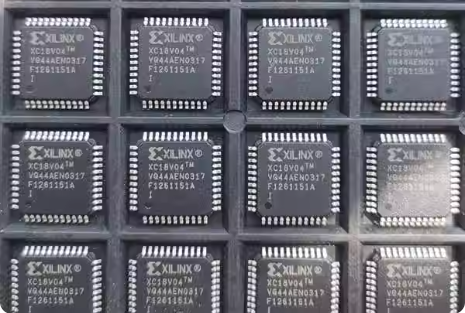

XILINX FPGAS IC field programmable gate array (Integrated circuit) XC18V02 - In-System-Programmable Configuration PROMs XC18V02VQG44C XC18V04PC44C XC18V04VQ44I XC18V04VQG44C XC18V02PCG44C

Introduction:

Spartan®-7 FPGAs are available in -2, -1, and -1L speed grades, with -2 having the highest performance. The Spartan-7 FPGAs predominantly operate at a 1.0V core voltage. The -1L devices are screened for lower maximum static power and can operate at lower core voltages for lower dynamic power than the -1 devices. The -1L devices operate only at VCCINT = VCCBRAM = 0.95V and have the same speed specifications as the -1 speed grade. Spartan-7 FPGA DC and AC characteristics are specified in commercial (C), industrial (I), and expanded (Q) temperature ranges. Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1Q expanded speed grade device are the same as for a -1C commercial speed grade device). However, only selected speed grades and/or devices are available in each temperature range. For example, the -1L speed grade is only available in the industrial (I) temperature range. All supply voltage and junction temperature specifications are representative of worst-case conditions. The parameters included are common to popular designs and typical applications.

XILINX Spartan-7 FPGAs Data Sheet: DC and AC Switching Characteristics:

Spartan-7 XILINX FPGAS IC field programmable gate array (Integrated circuit) full series XC7S100-1FGGA484I

XC7S6
XC7S15
XC7S25
XC7S50
XC7S75
XC7S100
XA7S6
XA7S15
XA7S25
XA7S50
XA7S75
XA7S100
XC7S6
XC7S15
XA7S6
XA7S15
XA7S25
XC7S75
XC7S100
XA7S75

About XILINX FPGA IC Category:

Xilinx offers a comprehensive multi-node portfolio to address requirements across a wide set of applications. Whether you are designing a state-of-the art, high-performance networking application requiring the highest capacity, bandwidth, and performance, or looking for a low-cost, small footprint FPGA to take your software-defined technology to the next level, Xilinx FPGAs and 3D ICs provide you with system integration while optimizing for performance/watt.

Programmable SoCs, MPSoCs, and RFSoCs

Unmatched Performance and Power

Xilinx’s SoC portfolio integrates the software programmability of a processor with the hardware programmability of an FPGA, providing you with unrivaled levels of system performance, flexibility, and scalability. The portfolio gives your designs overall system benefits of power reduction and lower cost with fast time to market.

Programmable 3D ICs

Highest Bandwidth and Integration

Xilinx homogeneous and heterogeneous 3D ICs deliver the highest logic density, bandwidth, and on-chip resources in the industry, breaking new ground in system-level integration. Xilinx UltraScale 3D ICs provide unprecedented levels of system integration, performance, bandwidth, and capability.

Cost-Optimized Portfolio ICs

The Xilinx cost-optimized portfolio is the broadest in the industry, comprising four families that are optimized for specific capabilities:

Spartan^®-6 FPGAs for I/O optimization

• Spartan-7 FPGAs for I/O optimization with the highest performance-per-watt
• Artix^®-7 FPGAs for transceiver optimization and highest DSP bandwidth
• Zynq^®-7000 programmable SoCs for system optimization with scalable processor integration
• Artix UltraScale+™ FPGAs for high I/O bandwidth and DSP compute
