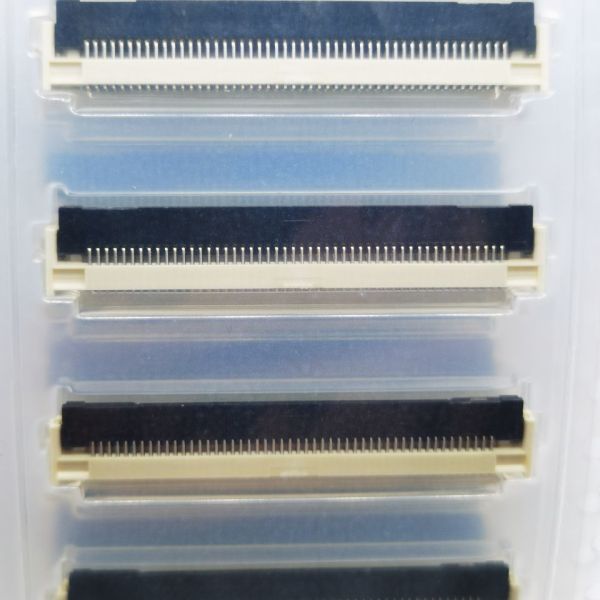

5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector
5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector
5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector
5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector
5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector
5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector
Specifications
Description :
Easy-On FFC/FPC Connector 0.50mm Pitch FD19 Series Right-Angle Bottom Contact 1.90mm Height 50 Circuit
Stock :
In Stock
MOQ :
10pieces
Price :
Negotiated
Payment Terms :
T/T, Western Union,paypal
Shipping Method :
Express
Category :
Connectors, Interconnects-electrical terminal block connectors
Product Name :
505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector 051105096
Connector Type :
Receptacle, Signal
Contact Position :
Bottom
Family :
FFC/FPC Connector
Applications :
Mass data storage，High-end and mid-range servers，Telecommunications equipment
Mated Height :
1.9mm
Pitch :
0.50mm
Orientation :
Right Angle
Description

5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector

Easy-On FFC/FPC Connector 0.50mm Pitch FD19 Series Right-Angle
Bottom Contact 1.90mm Height 50 Circuits 150°C Operating Temperature Gold over Nickel Plating.

StatusActiveCategoryFFC / FPC Connectors
SeriesFD19DescriptionEasy-On FFC/FPC Connector, 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 50 Circuits, 150°C Operating Temperature, Gold over Nickel Plating
CommentsBlack ActuatorProduct NameEasy-On




5051105096 505110 0.50mm Pitch LCD Connectors fpc 50pin Easy-On FFC/FPC Connector

Specifications:

Actuator TypeFront FlipCircuits (Loaded)50
Color - ResinBeigeContact PositionBottom
Durability (mating cycles max)20Flammability 94V-0
Mated Height1.90mmMaterial - MetalCopper Alloy
Material - Plating MatingGoldMaterial - Plating TerminationGold
Material - ResinLiquid Crystal PolymerNet Weight371.100/mg
OrientationRight AnglePackaging TypeEmbossed Tape on Reel
PCB LocatorNoPCB MountingSurface Mount
PCB RetentionNonePitch - Mating Interface0.50mm
Pitch - Termination Interface0.50mmPlating min - Mating0.051µm
Plating min - Termination0.051µmPolarized to PCBYes
StackableNoTemperature Range - Operating-40° to +150°C



Environmental & Export Classifications

ATTRIBUTEDESCRIPTION
RoHS StatusRoHS Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
ECCNEAR99
HTSUS8536.69.4040
