Specifications
Description :
3.2-Inch serial port 128*64 dot matrix LCD display screen LCD module LX-12864P1-V3.0
Stock :
In Stock
MOQ :
10pieces
Price :
Negotiated
Payment Terms :
T/T, Western Union,paypal.credit card
Shipping Method :
Express
Product Name :
128*64 dot matrix LCD display screen LCD module
Model :
12864
Species :
128*64 dot matrix LCD
The screen size :
3.2 inche
Color :
Grey in Black or Green in Black
Working Temperature :
-20～+80℃，
DOT Matrix :
12864
Description

3.2-Inch serial port 128*64 dot matrix LCD display screen LCD module LX-12864P1-V3.0

LX-12864P1 LCD module is compact, lightweight, easy to use, and provides clear display, making it widely applicable to various human-machine interface panels.

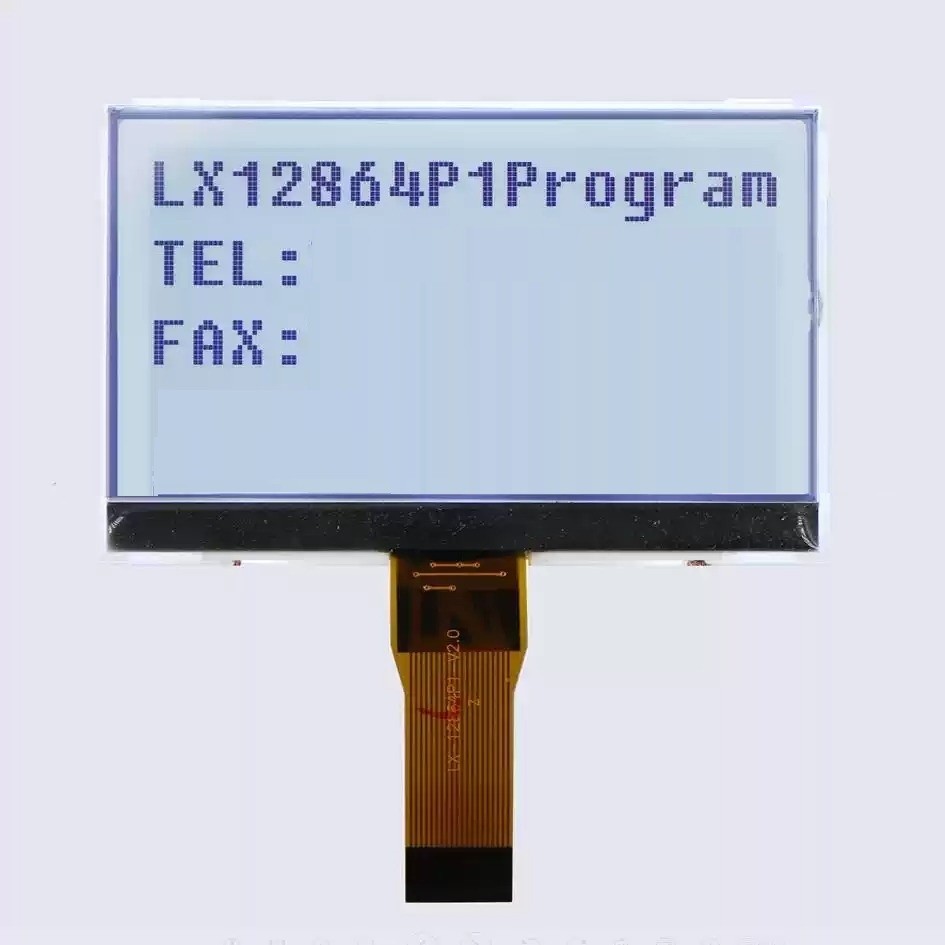

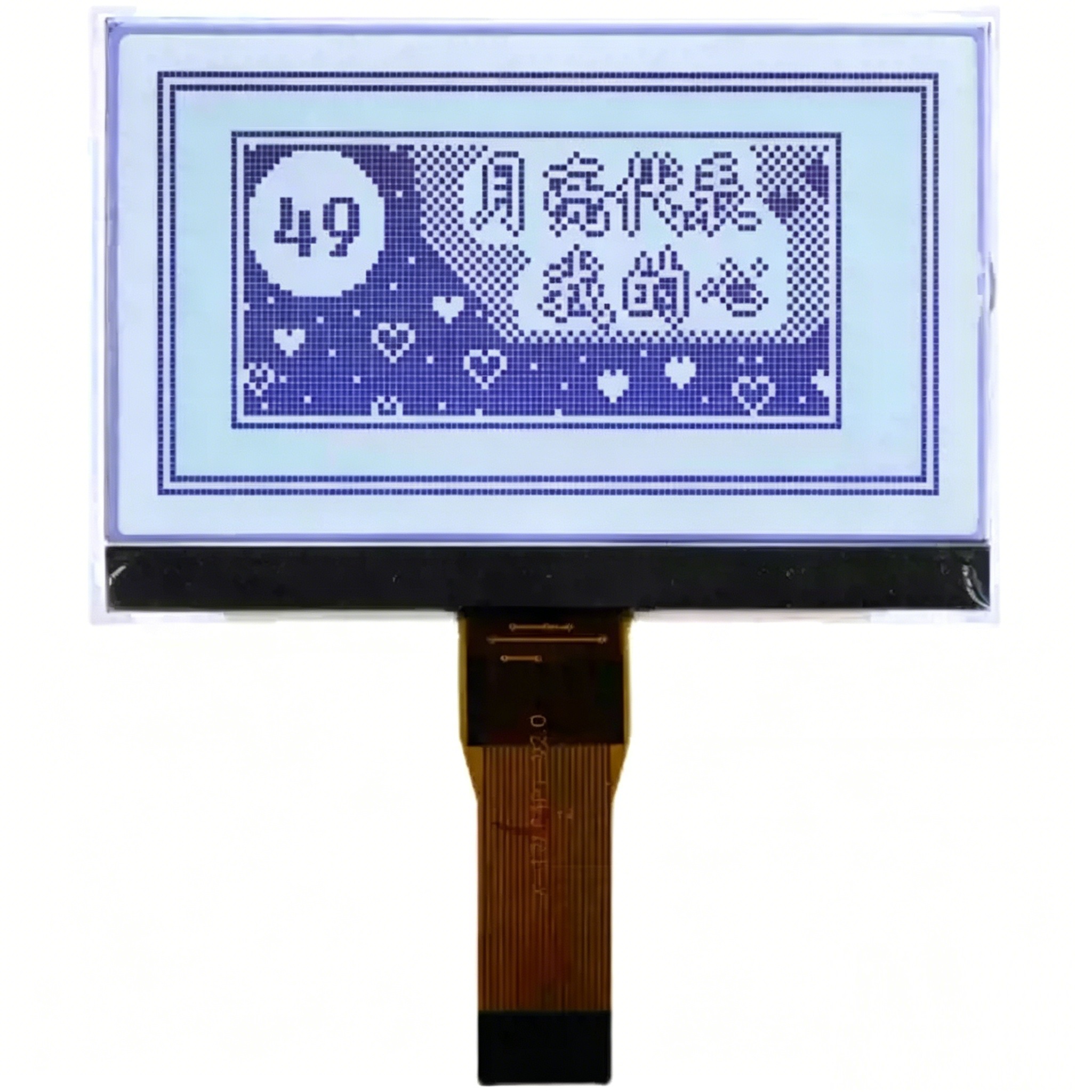

This model can display 128 columns * 32 rows of monochrome dot matrix images, or 8 Chinese characters per row * 4 rows of 16*16 dot matrix text, or 16 English letters, numbers, and symbols per row * 8 rows of 8*8 dot matrix text.

It features powerful input commands, allowing for various input, display, and movement modes to meet diverse requirements.


It can be widely used in various standard indoor products at normal temperatures,such as office equipment, PM2.5 detectors, POS card readers, attendance systems, access control systems and home display terminals.

Application:
office equipment, PM2.5 detectors, POS card readers, attendance systems,
access control systems, and home display terminals.

Feature:
2.1. Thin, lightweight, and robust structure; FPC, plug-in assembly process.

2.2. COG process, powerful functionality, and high stability.

2.3. Display content: 128*64 dot matrix monochrome image; Optional 16*16 dot matrix or other dot matrix images for user-defined Chinese characters; based on 16*16 dot matrix Chinese characters, it can display 8 characters/line * 4 lines.

2.4. Powerful instruction functions: Can be combined into various input, display, and shift modes to meet different requirements;

2.5. Simple and convenient interface: Simulated SPI interface.

Specifications:

LX-12864P1-V3.0 128*64 dot matrix LCD display Green or Grey in BlackLX-12864P1-V3.0 128*64 dot matrix LCD display Green or Grey in Black

LX-12864P1-V3.0 128*64 dot matrix LCD display Green or Grey in BlackLX-12864P1-V3.0 128*64 dot matrix LCD display Green or Grey in Black

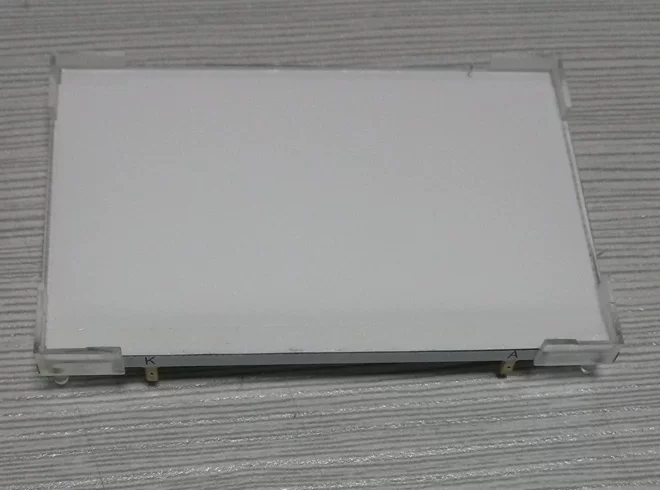

Matched Backlighting:

LX-12864P1-V3.0 128*64 dot matrix LCD display Green or Grey in Black

Matched Connectors:

LX-12864P1-V3.0 128*64 dot matrix LCD display Green or Grey in Black
